MDT

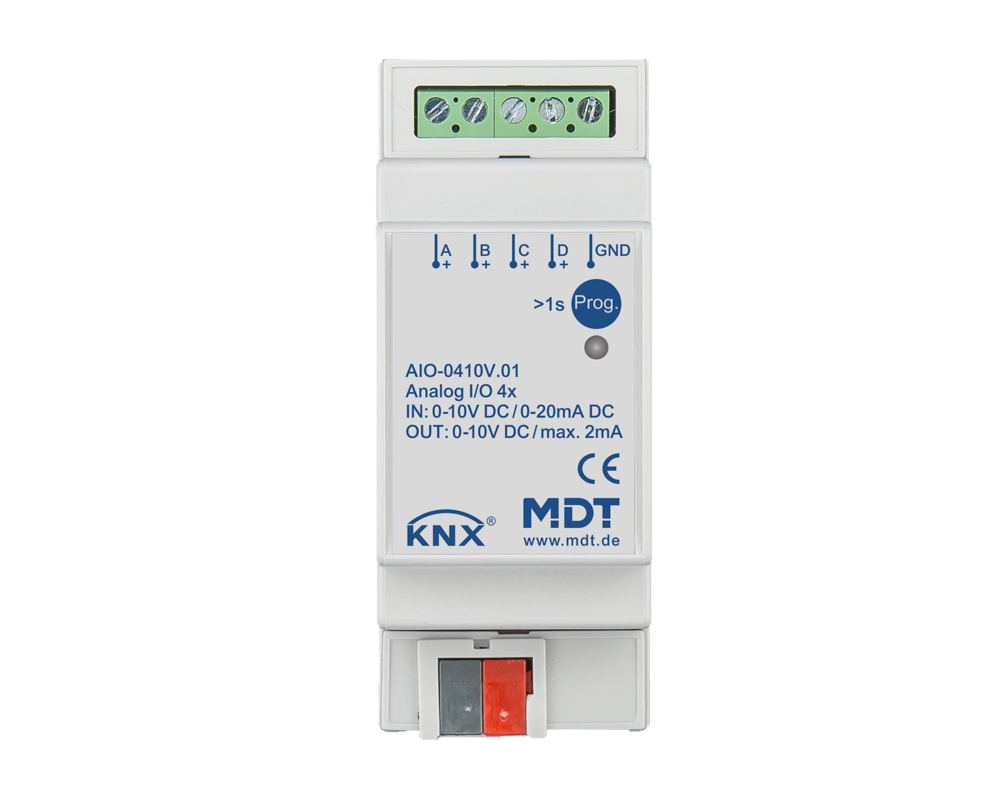

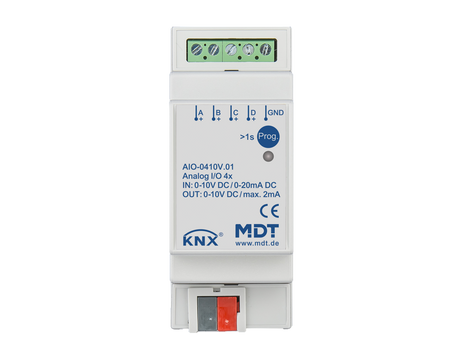

KNX Analog I/O 4-channel, 2 SU MDRC, 0 - 10 V, switchable In-/Output

SKU: USA-AIO-0410V.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$236.00 USD
-21% $300.00 USD $236.00 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • Each channel can be independently configured (in-/output).
  • In-/output galvanically isolated from the KNX Bus.
  • In-/output have a common GND.
  • Voltage for output operation is generated in the actuator.
  • No external power supply required.
  • Input mode: Sensor type 0-10 V / 2-10 V or 0-20 mA / 2-20 mA (selectable), measured value scaling, adjustable data point types, min/max values, wire break detection, threshold value- and step control function.
  • Output mode: 0-10 V, selectable data point type, control input via 1 bit / 1 byte / 2 bytes, lock function, emergency mode, Day/Night function to limit the control value.
  • Fast application download (long frame support as of ETS 5).
  • 3 year warranty.
