60W DALI DT8 NFC Enabled LED Driver(Constant Current)

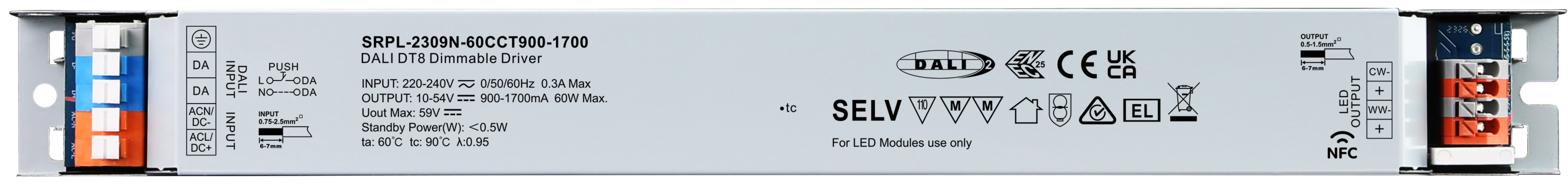

The SRPL-2309N-60CCT900-1700 is a DALI-2 DT8 certified dimmable LED driver housed in a long linear metal casing, delivering up to 60W of output power. It features a single-channel constant current output with adjustable current ranging from 900mA to 1700mA, making it a versatile solution for powering a wide variety of LED luminaires with different current requirements. Designed for 220–240VAC input, the driver achieves a power factor above 0.96 and an efficiency greater than 85%, ensuring minimal energy waste and compliance with modern energy standards.

One of its standout capabilities is smooth and deep dimming down to 0.1% without flickering or buzzing noise, enabled through Amplitude/CCR dimming technology. This makes it ideal for applications where precise light level control and occupant comfort are critical, such as offices, hospitality environments, healthcare facilities, and high-end retail spaces.

The driver features a built-in DALI-2 interface operating as a DT8 device, which means it natively supports tunable white (CCT) control when paired with compatible luminaires. It is fully compatible with universal DALI masters that support DT8 commands and works seamlessly with DALI-2 certified application controllers and control devices. DALI-251, DALI-252, and DALI-253 protocols are enabled, with DALI data stored internally for reliable commissioning and operation.

Addressing, grouping, and scene configuration can be performed via NFC programming tool, allowing installers to pre-configure the driver before installation — even without powering it up. The output current is also selectable via NFC, with a minimum current gear as low as 0.1mA for maximum flexibility. Additionally, the DALI address can be manually assigned using onboard buttons with a digital display, or automatically assigned by DALI masters during commissioning.

The unit is a Class II isolated power supply, meaning it provides reinforced insulation between input and output, enhancing safety and simplifying installation in luminaire housings. It carries an IP20 rating, making it suitable for indoor LED lighting applications where exposure to moisture is not a concern.

The SRPL-2309N-60CCT900-1700 complies with IEC 62386-101:2014, IEC 62386-102:2014, and IEC 62386-207 Edition 2, and is backed by a 5-year manufacturer warranty.
