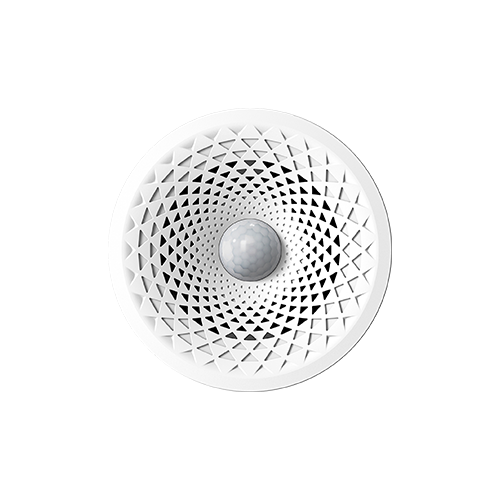

KNX Multifunction Sensor with Secure

Temperature+Humidity+CO2+PM2.5+PM10+TVOC+Formaldehyde+Brightness+ PIR Motion sensor *

Diameter 15.5m, max. mounting height 6m. Support 4 presence detector channels, and the first channel with 3 levels control, master/slave work mode, Constant lighting Control, RTC controller(3), 1 ventilation controller, Logic(8) and scene group(8) functions.

Air quality level function: humidity (4 levels), CO2 (4 levels), AQI (6 levels), PM2.5 (6 levels), PM10(4 levels), TVOC(4 elvels),Formaldehyde(4 levels) Air quality controller: humidity control(step), CO2 level output(step & PI) *

Power: KNX Bus & Auxiliary; Consumption: bus 4mA & Auxiliary 16mA

Intallation: Ceiling-mounted/ Surface mounted by ceiling adapter see accessory no. 113

Color option: Black/ White

* Depending on the version chosen
