KNX Cable 2x2xAWG20 (4 wires), Halogen-Free Cable for Smart Building Automation *NON UL*

The KNX Cable 2x2xAWG20 BUS EIB-KNX LSHF CPR cable is a specialized product for modern building automation. Designed in accordance with KNX and EIB standards, it provides efficient control of lighting, shutters, heating, ventilation, and more. This halogen-free cable ensures safety and reliability with compliance to CPR (Construction Product Regulation) standards. Key features include:

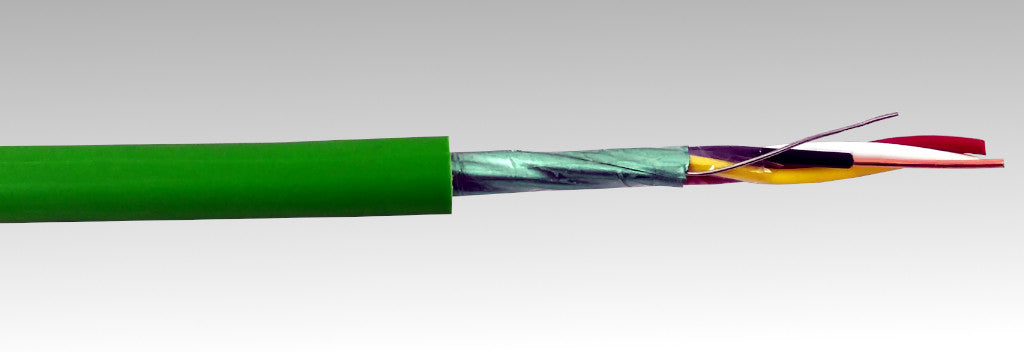

• Construction: Copper conductor (0.80mm), polyethylene insulation, and halogen-free thermoplastic outer sheath.
• Technical Characteristics: 250V max service voltage, 100 Ohm impedance, and operating temperature from -15°C to +70°C.
• Standards Compliance: Flame retardant (UNE-EN 60332-1), halogen-free (UNE-EN 60754-1), low smoke emission (UNE-EN 61034), and CPR classified as Dca-s2,d2,a1.
• UL: None

With its daisy-chain configuration and robust design, this cable is perfect for integrating advanced home and building automation systems.

Available also in 1-pair and 2-pair configurations, it offers flexibility for various applications.
