Triac Dimmable CC LED Driver 6–40W, NFC
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$12.36 USD
Regular price
-33%
$18.54 USD
Sale price
$12.36 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
LTECH Triac CC Dimmable Driver — intelligent LED driver family for professional lighting control installations.
- Built with Rubycon capacitors — 5-year warranty
- T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)
Models
| Model | Output Power | Output Current | Output Voltage |
|---|---|---|---|
| SE-6-100-450-G1T | 0.9-6.3W | 100-450mA | 9-42V |
| SE-6-350-700-G1T | 0.7-6.3W | 350-700mA | 2-12V |

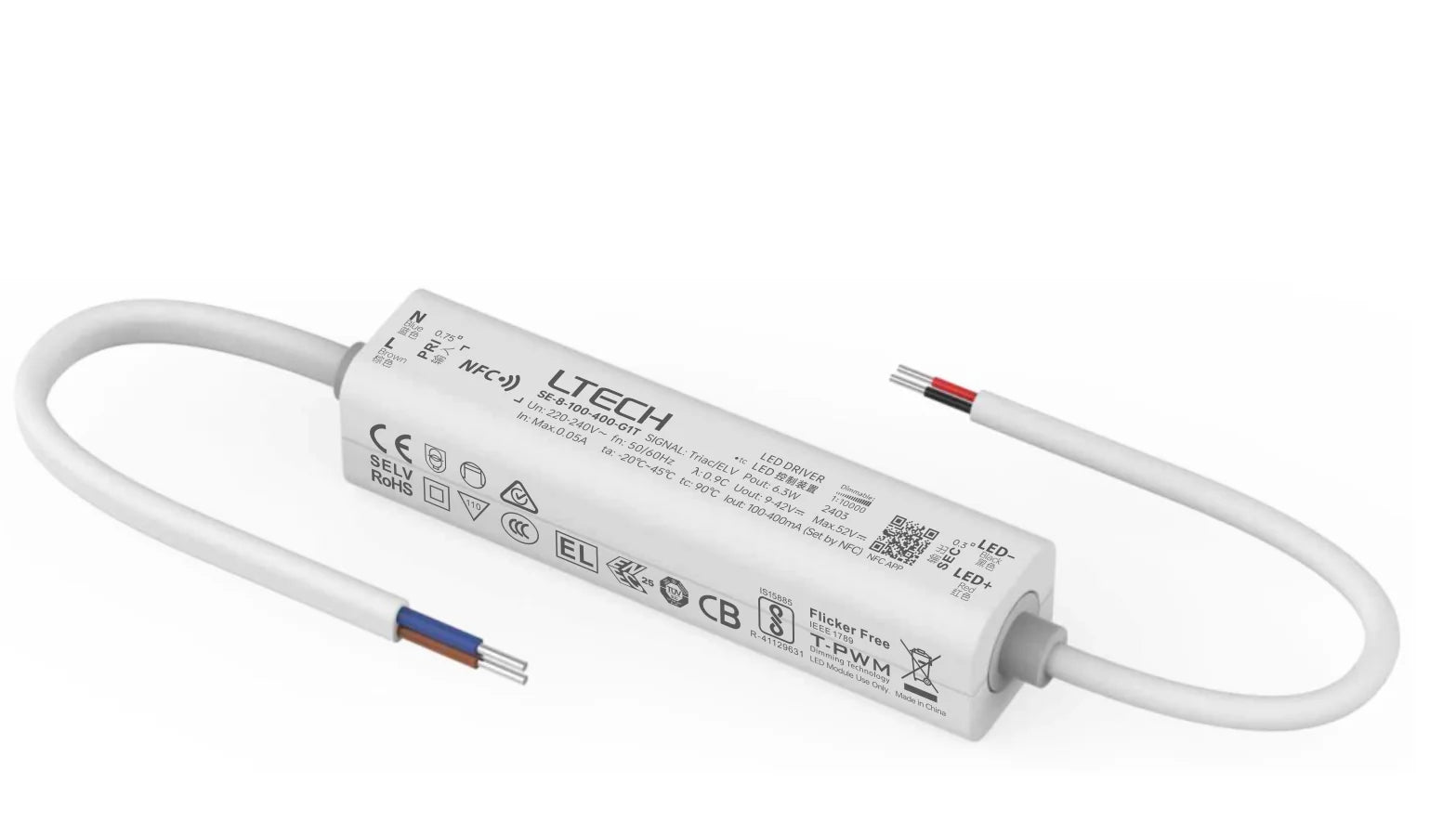

| SE-8-100-400-G1T | 0.8-6.3W | 100-400mA | 9-42V |
| SE-8-400-700-G1T | 0.8-6.3W | 400-700mA | 2-15.5V |
| SE-9-350-700-G1T | 0.7-8.4W | 350-700mA | 2-12V |

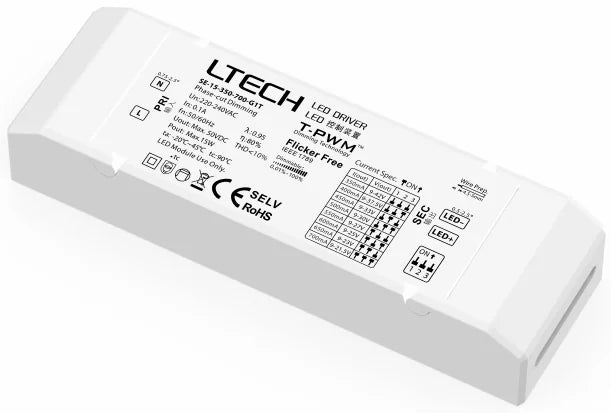

| SE-12-100-400-G1T | 0.9-12W | 100-400mA | 9-42V |
| SE-15-350-700-G1T | 3.15-15W | 350-700mA | 9-42V |

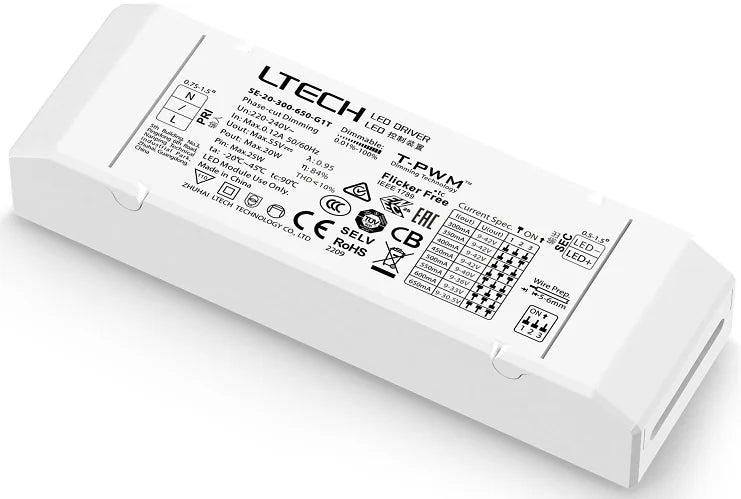

| SE-20-300-650-G1T | 2.7-20W | 300-650mA | 9-42V |

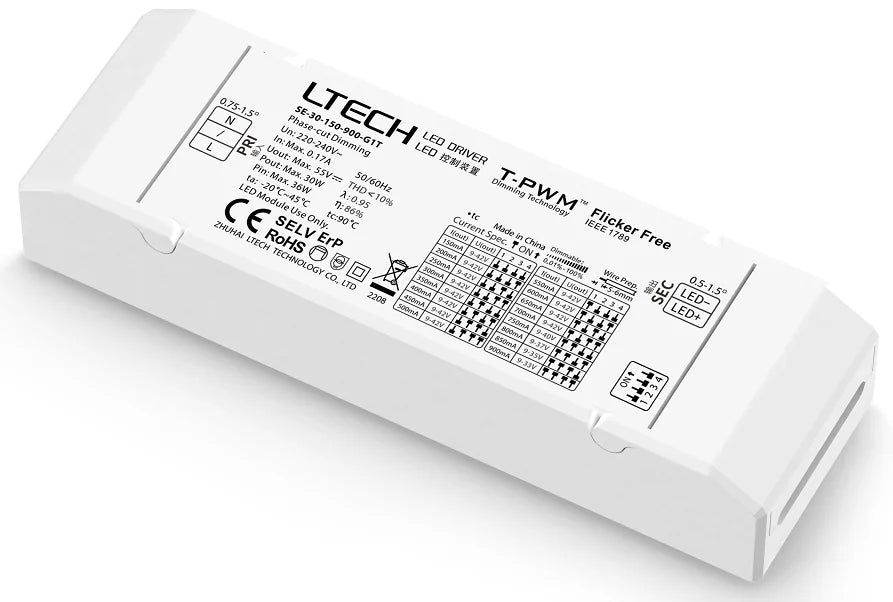

| SE-30-150-900-G1T | 1.35-30W | 150-900mA | 9-42V |

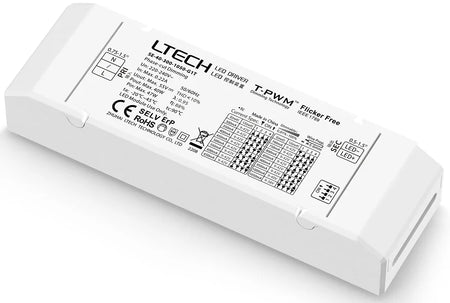

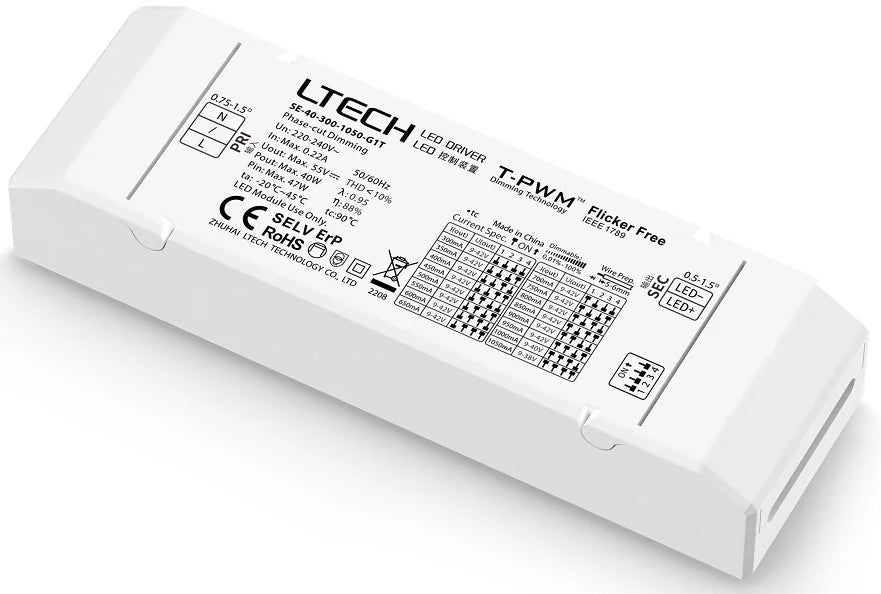

| SE-40-300-1050-G1T | 2.7-40W | 300-1050mA | 9-42V |
Specifications
- Dimming interface: 2 in 1 / TRIAC / ELV
- Dimming range: 1：10000 （0.01%）
- Input voltage: 220-240V
- Power factor: >0.95
- Output channels: 1CH
- Certifications: 5 year, CCC,EU ERP,ROHS,CB,TUV,ENEC,CE,UKCA,BIS,EAC,KC,SELV
- Warranty: 5 years
