LTECH

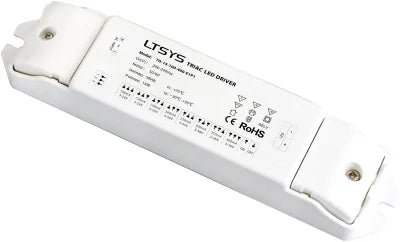

Triac Dimmable CC LED Driver 10W — S Series

SKU: TD-10-650-1000-G1TS
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$15.64 USD
-33% $23.46 USD $15.64 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

LTECH Triac CC Dimmable Driver — intelligent LED driver family for professional lighting control installations.

  • Built with Rubycon capacitors — 5-year warranty
  • T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)

Models

Model Output Power Output Current Output Voltage
TD-10-650-1000-G1TS 1.3-10W 650-1000mA 2-12V

Specifications

  • Dimming interface: 2 in 1 / TRIAC / ELV
  • Dimming range: 1：10000 （0.01%）
  • Input voltage: 220-240V
  • Power factor: >0.5
  • Output channels: 1CH
  • Certifications: 5 year, CCC,ROHS,CB,EL,TUV,ENEC,CE,EAC,ENEC,RCM
  • Warranty: 5 years
