DMX512/RDM Tunable White CV LED Driver 75–150W 24V, NFC — F Series
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$61.14 USD
Regular price
-33%
$91.71 USD
Sale price
$61.14 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
LTECH DMX512 CV Driver — intelligent LED driver family for professional lighting control installations.
- NFC programmable — set output current, addresses, dimming curve and advanced parameters via the NFC programmer or app
- Built with Rubycon capacitors — 5-year warranty
- T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)
Models
| Model | Output Power | Output Current | Output Voltage |
|---|---|---|---|

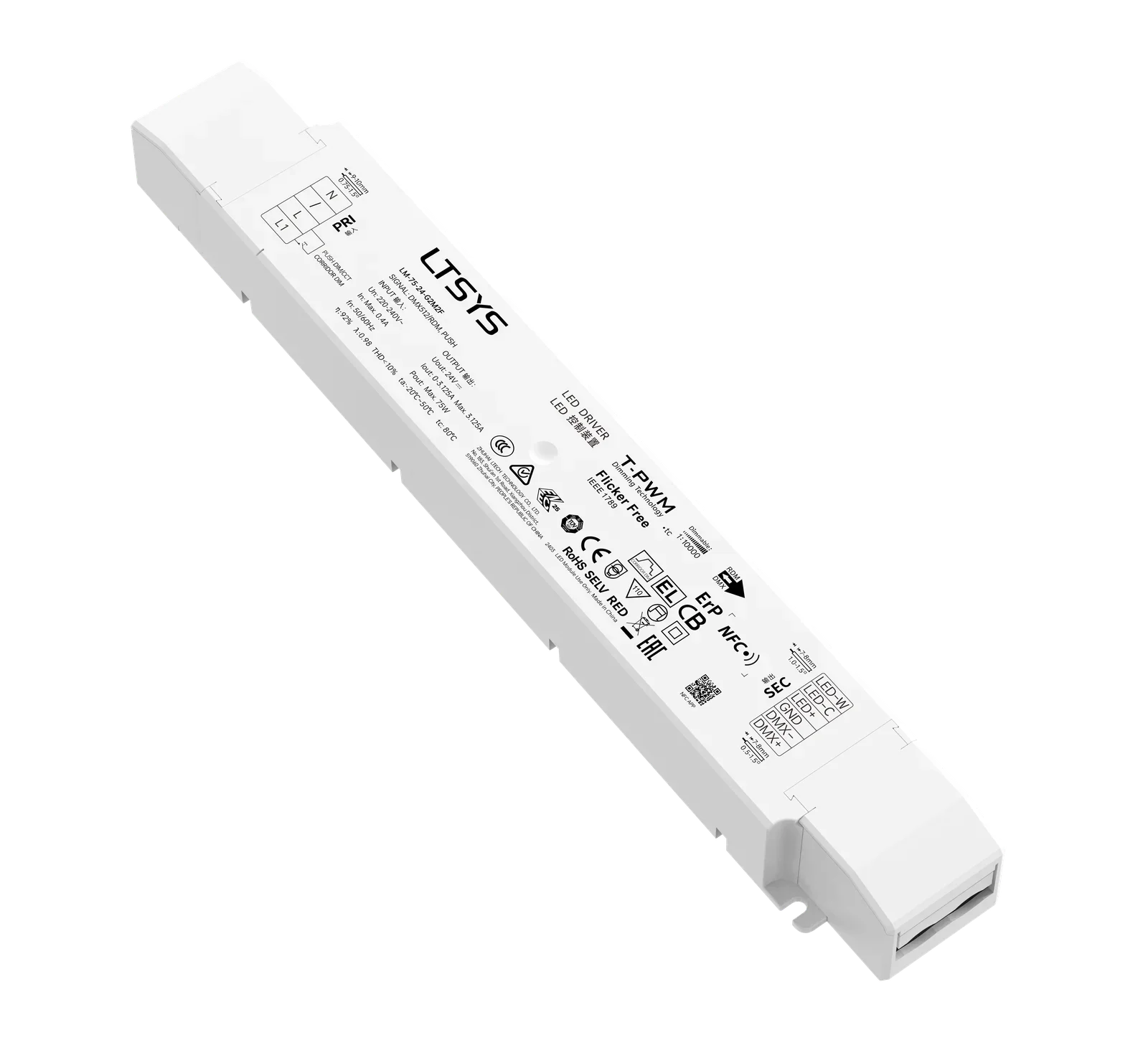

| LM-75-24-G2M2F | 0-75W | 0-3.125A | 24V |

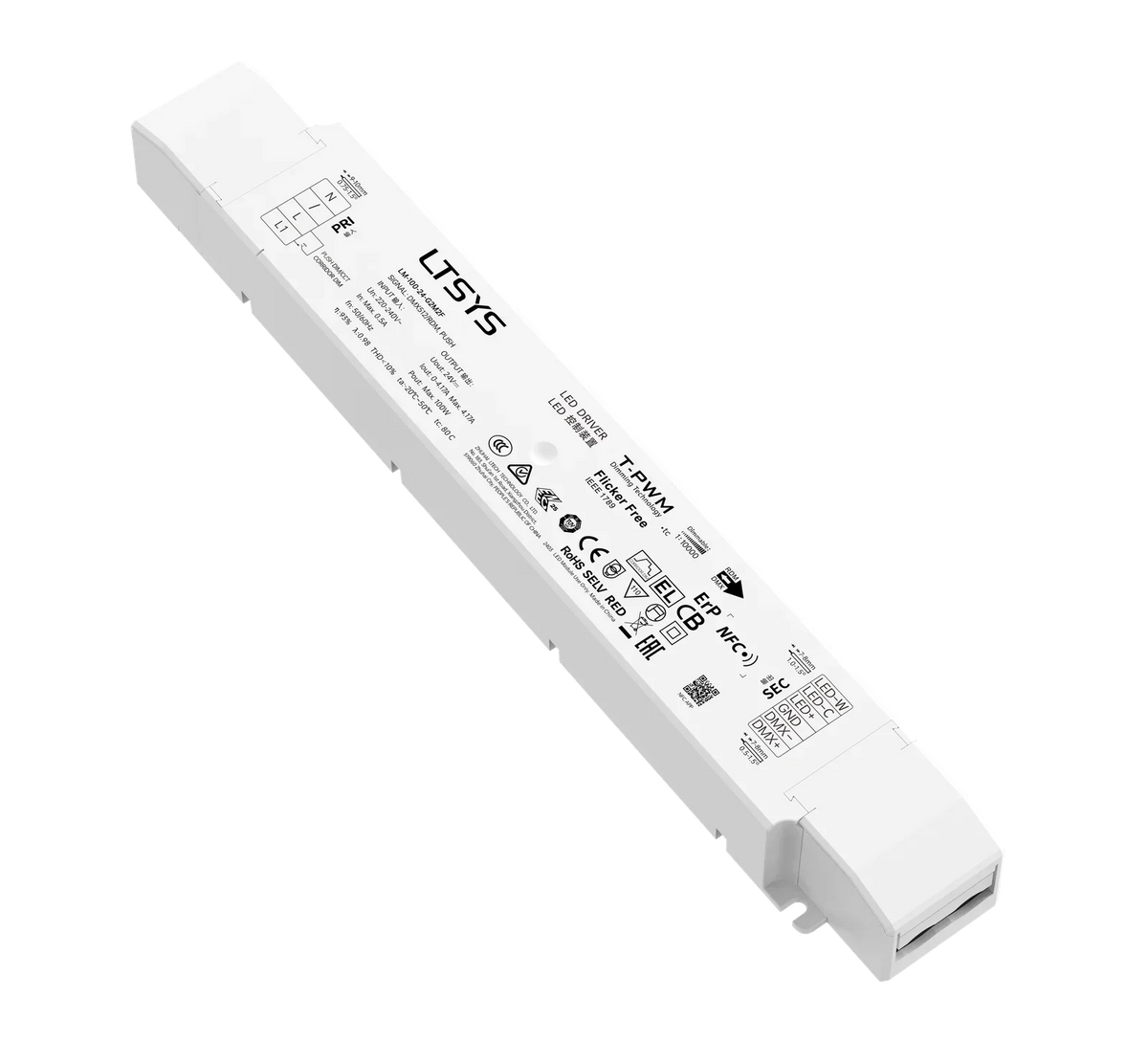

| LM-100-24-G2M2F | 0-100W | Max 4.17A | 24V |

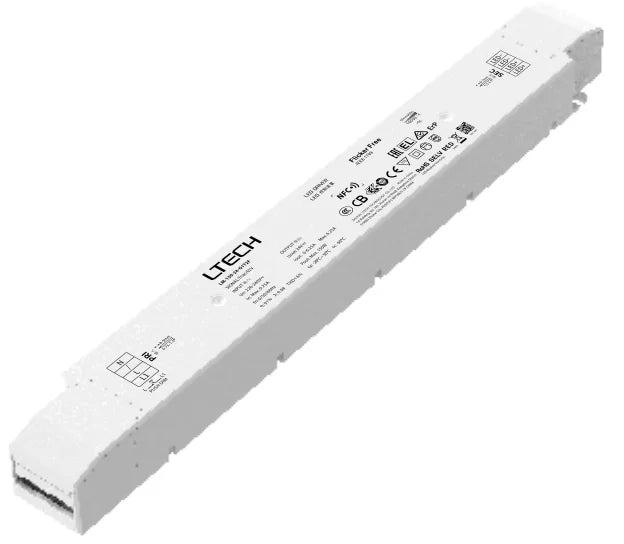

| LM-150-24-G2M2F | 0-150W | 6.25A | 24V |
Specifications
- Dimming interface: DMX512/RDM / PUSH DIM
- Dimming range: 1：10000 (0.01%)
- Input voltage: 220-240V
- Power factor: >0.98/230Vac (Full Load)
- Output channels: 2CH
- Certifications: 5 year, CCC,ENEC,KC,EAC,CB,CE,SELV,ROHS,RED,EL,EU ERP,RCM
- Warranty: 5 years
