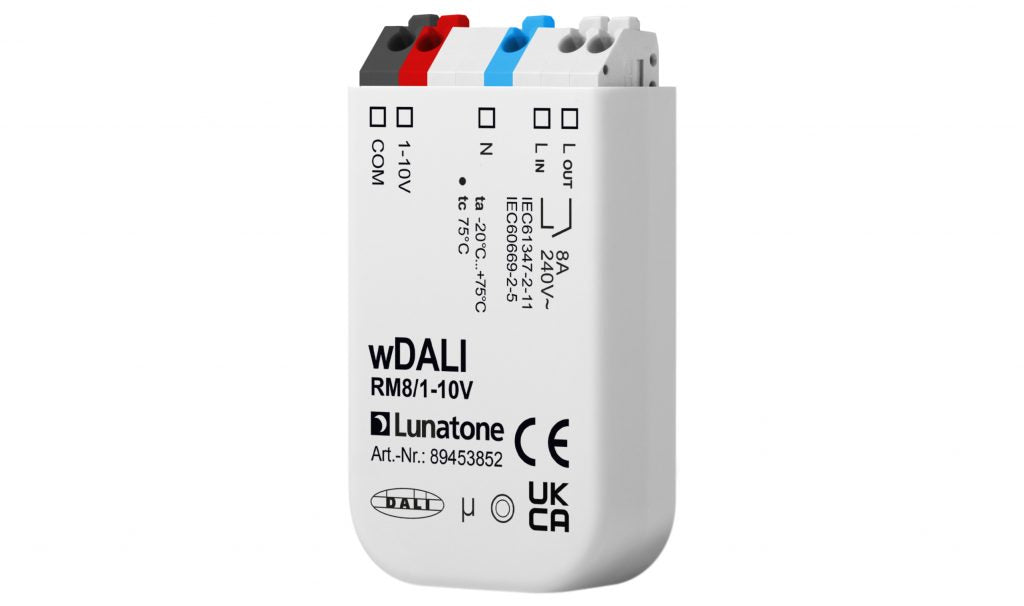

wDALI RM8 1-10V PWM – Wireless 0-10V Interface

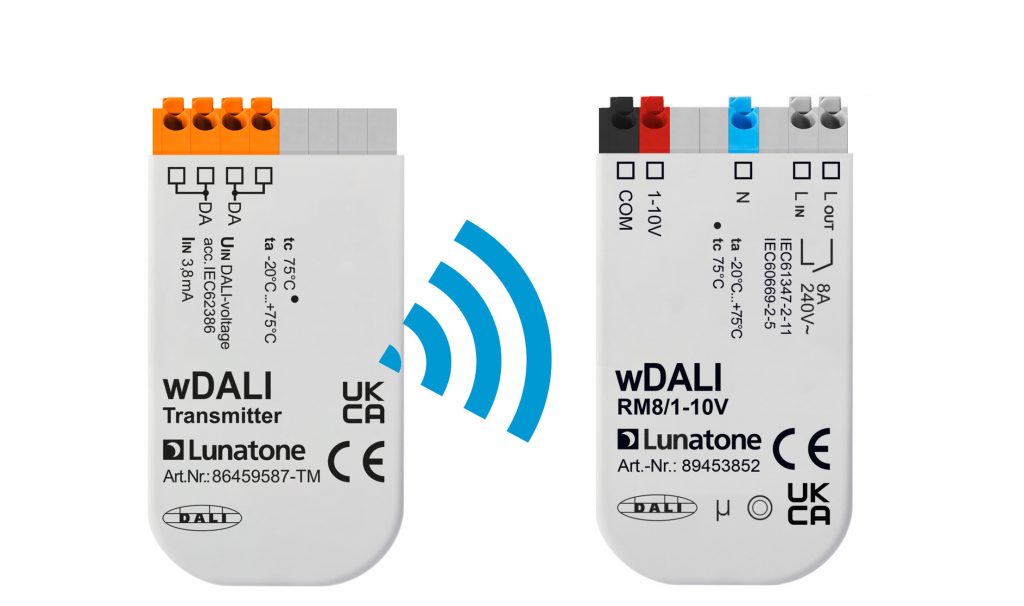

The Lunatone wDALI RM8 1-10V PWM wirelessly integrates 0–10V / 1–10V / PWM operating devices into a DALI system — floor lamps, outdoor luminaires, remote fixtures. The bus-powered wDALI Transmitter sends DALI commands over 2.4 GHz to the mains-powered receiver, which outputs a 0–100% PWM signal (16-bit, 488Hz) and switches an 8A relay tied to the dim value: 0 opens the relay, any higher value closes it. Range up to 300m open field (10–20m indoors).

Key features

• PWM output for fail-safe digital transmission — ideal for ballasts with PWM control input (e.g. Mean Well HLG/HLN/NPF/LPF)
• Integrated 8A relay (1000VA) automatically cuts the ballast supply at dim value 0
• Transmitter bus powered (3.8mA); receiver mains 210–250V AC
• Configurable via DALI Cockpit; back-box format 59 × 33 × 15 mm

Technical specifications

Available as receiver only (extension) or as a complete set with the wDALI Transmitter.
