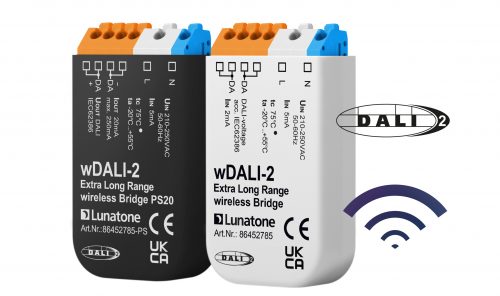

wDALI-2 Extra Long Range Wireless Bridge

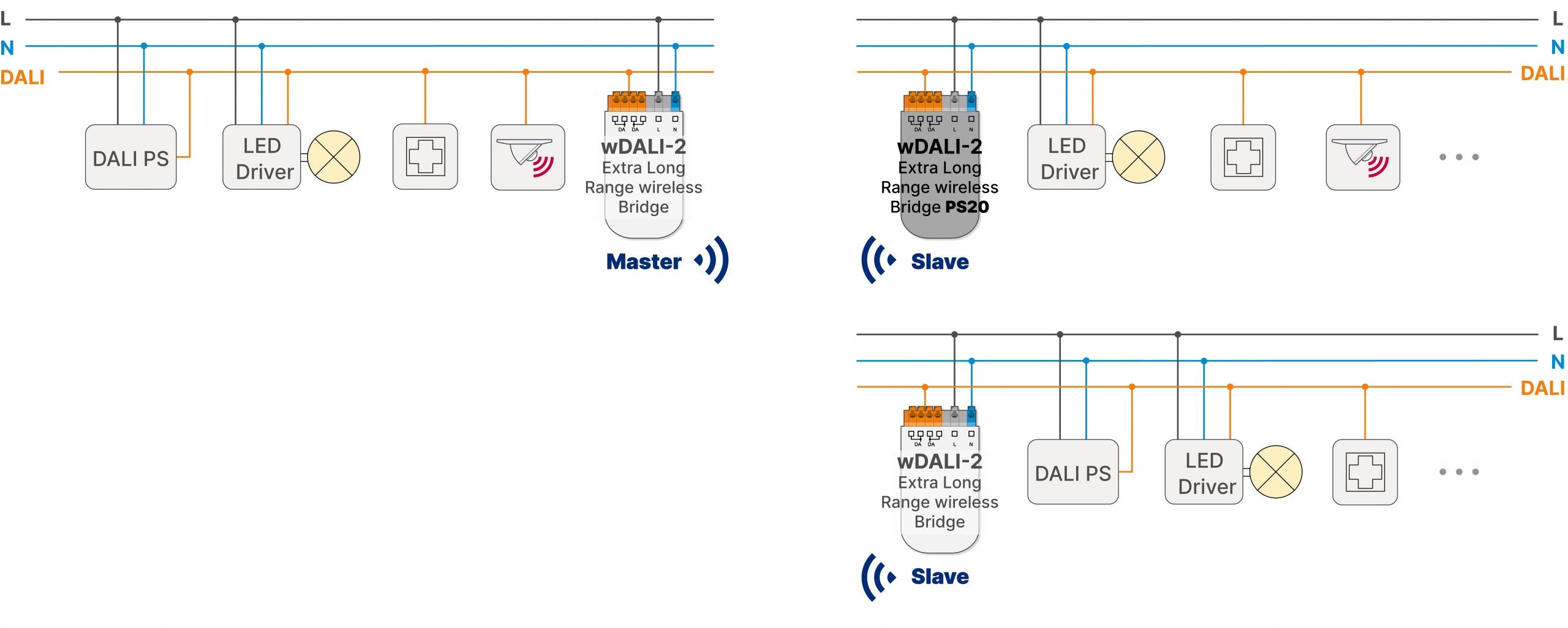

The Lunatone wDALI-2 Extra Long Range wireless Bridge links spatially separated DALI lines over E-LORA 868 MHz with up to 1km range outdoors (100–500m indoors) — parking lots, campuses, facades, separate buildings. The connection is semi-bidirectional: addressed control and DALI queries of devices on the slave lines (single addresses, groups, broadcast) from the master line. One master pairs with up to 20 slaves — up to 20 DALI sub-circuits from a single line.

Key features

• E-LORA 868 MHz: 1km open field — the longest-reach DALI link in the Lunatone range
• Master/Slave pairing via DALI Cockpit; remote addressing and configuration of slave-line devices
• Up to 20 slaves per master
• PS20 version: integrated 20mA DALI supply for up to 10 ballasts on the sub-line
• Flush-mount box format 59 × 33 × 15 mm

Technical specifications

Shorter distances with full bidirectionality: wDALI-2 BT5 Wireless DALI Bridge.
