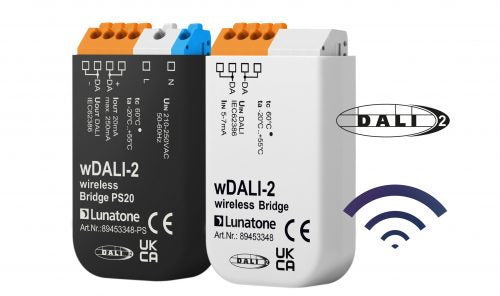

wDALI-2 BT5 Wireless DALI Bridge

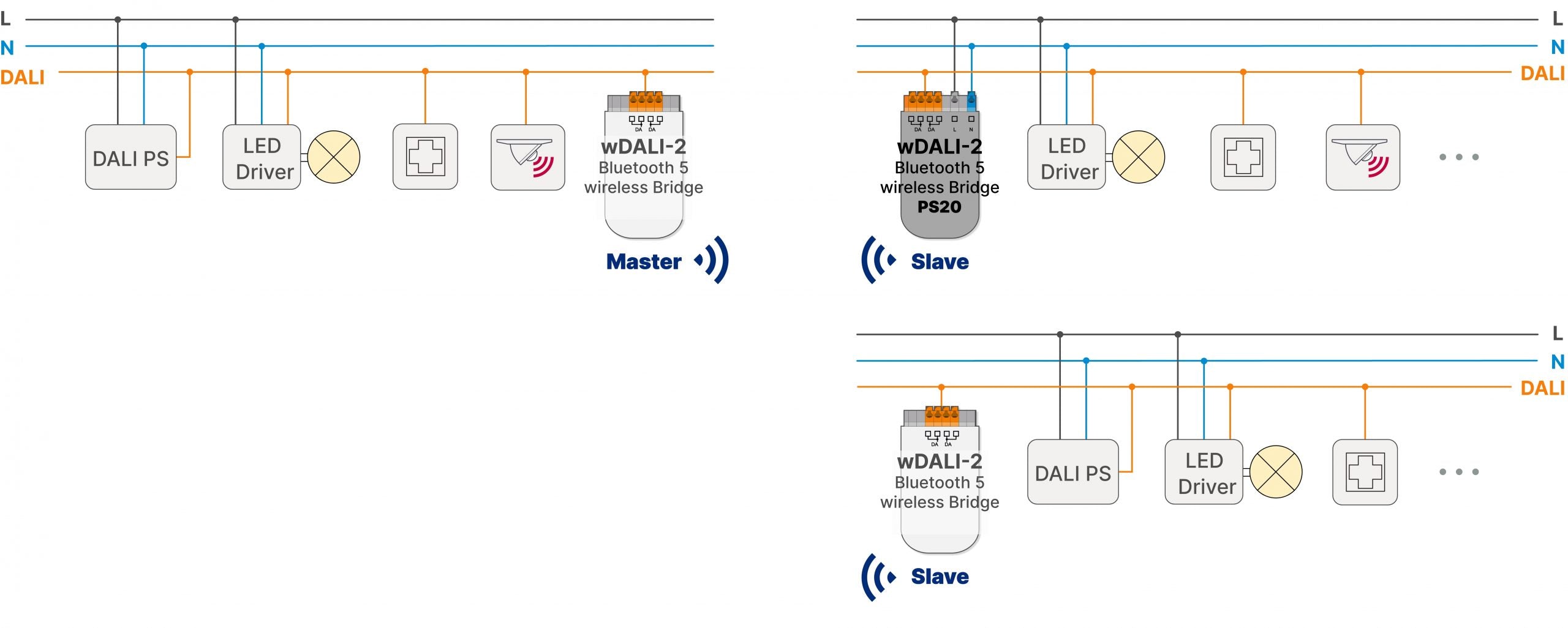

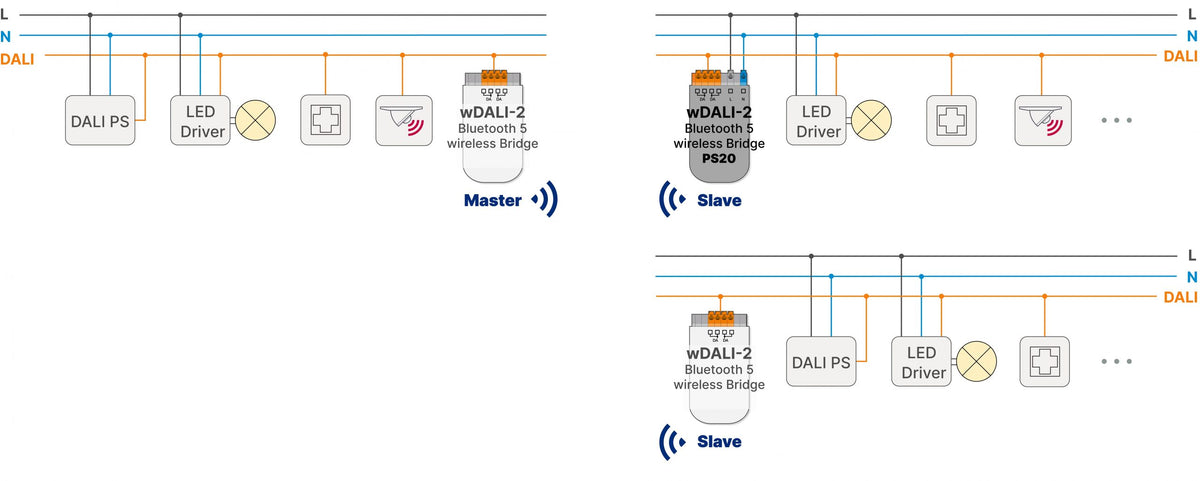

The Lunatone wDALI-2 Bluetooth 5 wireless Bridge joins spatially separated DALI lines without a cable between them — and the link is fully bidirectional: control and DALI queries work from both sides. Set one bridge to Master in DALI Cockpit, pair the Slaves within range, and the devices on the remote lines become addressable and configurable straight through the wireless link. Range up to 300m outdoors, 10–20m indoors.

Key features

• Bidirectional wireless DALI: commands and queries in both directions
• Bluetooth 5 Long Range, up to 300m open field; Master/Slave pairing via DALI Cockpit
• Remote addressing and configuration of devices on Slave lines
• PS20 version with integrated DALI power supply (20mA guaranteed, up to 10 ballasts on the sub-line) — no separate bus PSU needed
• Also the transmitter unit for the wDALI-2 BT5 RM8 wireless relay
• Compact 59 × 33 × 15 mm for flush-mounted boxes

Technical specifications
