wDALI-2 BT5 Switch Cross – Wireless 4-Button Switch
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$208.80 USD
Regular price
-20%
$261.00 USD
Sale price
$208.80 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

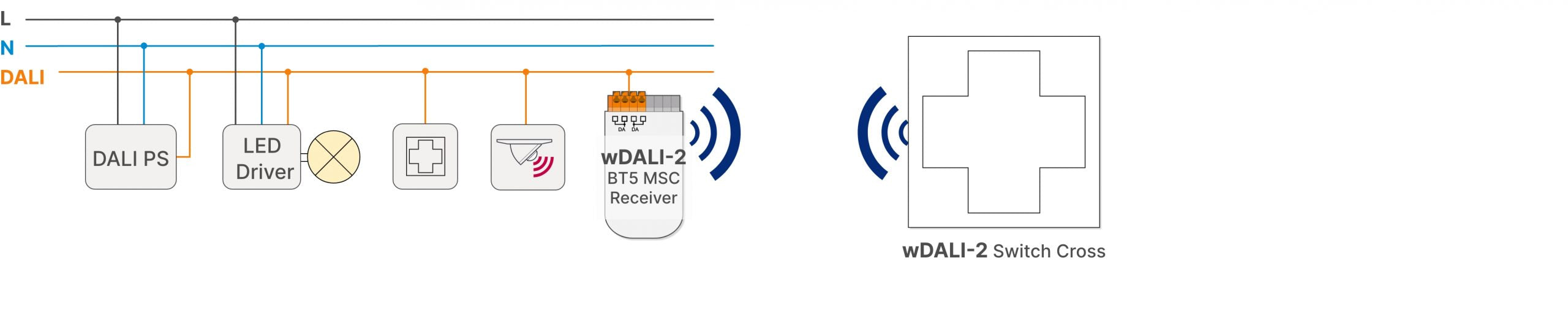

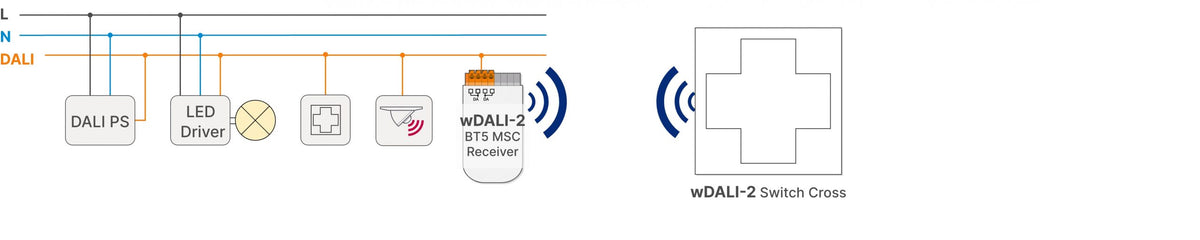

The Lunatone wDALI-2 BT5 Switch Cross brings the iconic 4-button Switch Cross to wireless: a battery-powered Bluetooth 5 wall switch that mounts anywhere — glass, brick, retrofit walls — with zero wiring. Range up to 300m open field (10–20m indoors). Paired with the wDALI-2 BT5 MSC Receiver on the DALI line, every button is individually configurable with target address, behaviour and DALI commands, including DT8 colour and tunable white.
Key features
- Battery powered, ~10,000 actuations over 10 years — no wiring at all
- Bluetooth 5, up to 300m open field; multiple switches per receiver or one switch to many receivers
- Per-button config via DALI Cockpit: dim, switch, scenes, DT8 TC/RGB
- Multi-master, customisable power-up behaviour; custom button inserts via Lunatone's online configurator
- Slim 82 × 82 × 8.5 mm profile · IP40
Versions
Colours: white RAL 9010, traffic white RAL 9016 or black RAL 9005 — each as switch only or bundled with a paired MSC Receiver ready to run.
Technical specifications
| Wireless | Bluetooth 5, up to 300m open field |
| Supply | Battery, ~10,000 actuations / 10 years |
| Dimensions | 82 × 82 × 8.5 mm · IP40 |
Need extra receivers? See the wDALI-2 BT5 MSC Receiver.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
