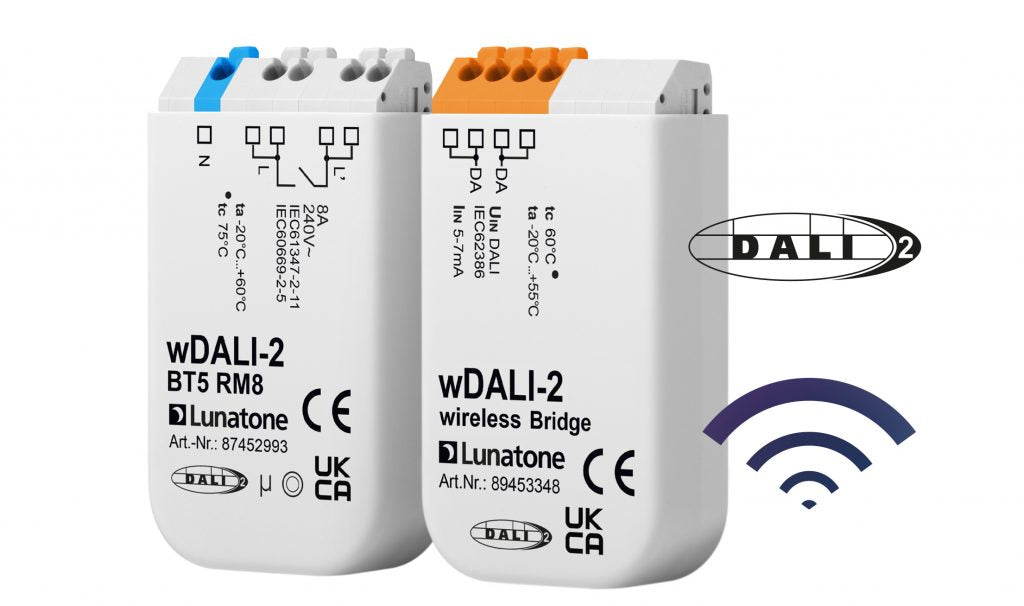

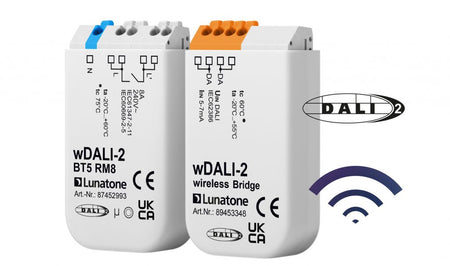

Lunatone wDALI-2 BT5 RM8 wireless relay module
Lunatone wDALI-2 BT5 RM8 module
Lunatone wDALI-2 BT5 RM8 wireless relay module
Lunatone wDALI-2 BT5 RM8 module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LUNATONE

wDALI-2 BT5 RM8 – Wireless Relay Module 8A

SKU: 87452993
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$141.12 USD
-20% $176.40 USD $141.12 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Lunatone wDALI-2 BT5 RM8 puts a DALI-switched relay where no bus wire can reach. The mains-powered receiver module holds an 8A relay (1000VA) for non-dimmable loads and receives its DALI on/off commands over Bluetooth 5 from a wDALI-2 BT5 Bridge connected to the DALI line. Wireless range 8–12m indoors (up to 150m open field) — detached luminaires, signage, fountains or any switched load across a gap where cabling isn't an option.

Key features

  • 8A relay, 1000VA nominal, 60A inrush — normally open, resistive switching >10⁵ operations
  • Wireless DALI over Bluetooth 5, paired with the wDALI-2 BT5 Bridge (transmitter side)
  • Mains supplied 210–250V AC — no bus wiring at the load
  • Compact 59 × 33 × 15 mm for back-box installation

Technical specifications

Supply 210–250V AC, 50–60Hz
Relay 8A continuous, 1000VA, 60A inrush, max. 1Hz
Wireless Bluetooth 5, 8–12m indoors / 150m open field
Dimensions 59 × 33 × 15 mm · IP20

Requires a wDALI-2 BT5 Bridge on the DALI line as transmitter — sold separately.
