wDALI-2 BT5 Long Range Transmitter – Receiver

The Lunatone wDALI-2 BT5 Long Range system connects spatially separated DALI loads to a DALI system over Bluetooth 5 Long Range — unidirectional and simple: the bus-powered Transmitter forwards DALI commands from the main system to one or more Receivers, which broadcast them to their sub-circuit or an assigned group. Configuration via DALI Cockpit; full DALI-2 command support.

Key features

• One transmitter can serve multiple receivers — span courtyards, halls or facades
• Receiver forwards commands as broadcast or to a selected group on the subnet
• Receiver PS20 version: mains supplied, with integrated 20mA DALI supply for up to 10 ballasts on the sub-line — the subnet needs no other PSU
• Bluetooth 5 Long Range; back-box format 59 × 33 × 15 mm

Versions

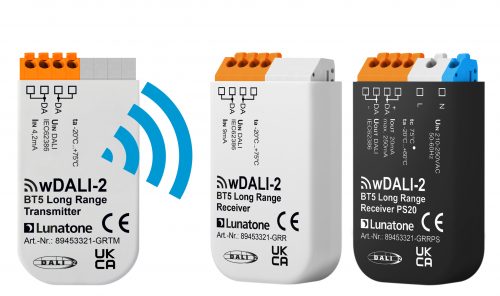

Transmitter (bus powered, 4.2mA) · Receiver (bus powered, 9mA) · Receiver PS20 (210–250V AC, 20mA DALI supply). A working link needs one Transmitter plus at least one Receiver.

Technical specifications

Need a bidirectional link with queries? See the wDALI-2 BT5 Wireless DALI Bridge.
