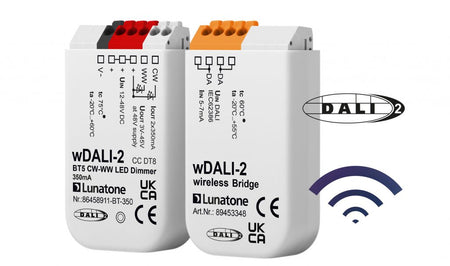

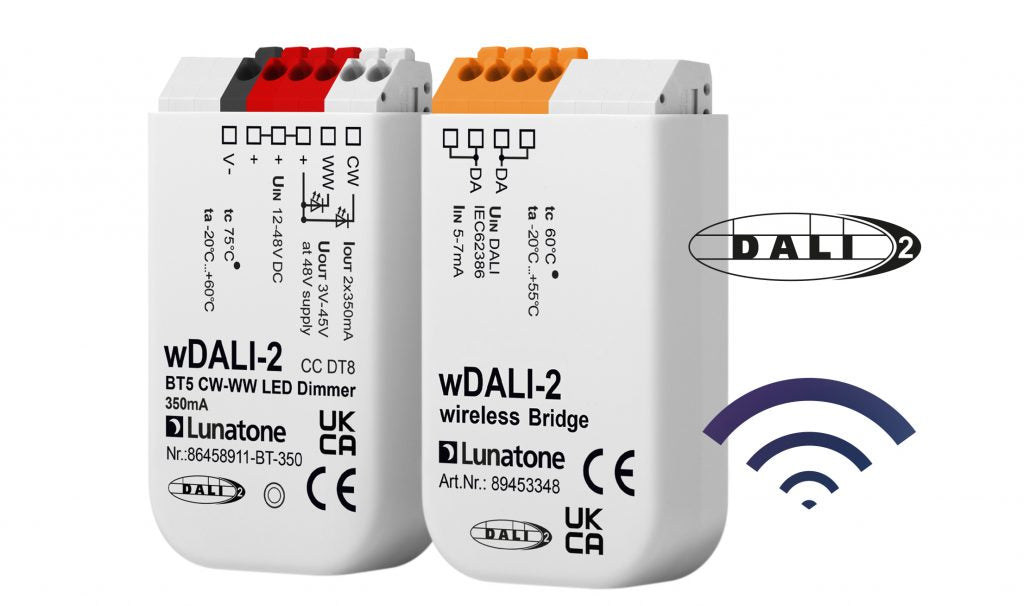

Lunatone wDALI-2 BT5 CW-WW LED Dimmer 350mA CC DT8
Lunatone wDALI-2 BT5 CW-WW LED Dimmer module
Lunatone wDALI-2 BT5 CW-WW LED Dimmer 350mA CC DT8
Lunatone wDALI-2 BT5 CW-WW LED Dimmer module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LUNATONE

wDALI-2 BT5 CW-WW LED Dimmer 350mA CC DT8

SKU: 86458911-BT-350
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$144.00 USD
-20% $180.00 USD $144.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Lunatone wDALI-2 BT5 CW-WW LED Dimmer wirelessly controls tunable white luminaires via a single DALI DT8 address: switch, dim and adjust colour temperature over Bluetooth 5 Long Range, receiving commands from a wDALI-2 BT5 Bridge on the DALI line. Two CC outputs (CW/WW, 350mA, 12–48V DC input) blended by the module — the cleanest wireless path to DT8 tunable white, 8–12m indoors (up to 150m open field).

Key features

  • DALI DT8: intensity + colour temperature on one address
  • Operating modes: DT8, Balance&Dim, Dim2Warm
  • 2 outputs (LED+, CW-, WW-), 350mA CC PWM each; 3–45V, up to 15.75W per channel
  • SELV supply 12–48V DC; configurable power-on behaviour; 59 × 33 × 15 mm

Technical specifications

Supply 12–48V DC (SELV)
Output CW/WW, 2 × 350mA CC PWM, 3–45V
Wireless Bluetooth 5 Long Range, via wDALI-2 BT5 Bridge
Dimensions 59 × 33 × 15 mm · IP40/IP20

Requires a wDALI-2 BT5 Bridge as transmitter — sold separately.
