wDALI-2 BT5 1Ch LED Dimmer 350mA CC DT6
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$109.44 USD
Regular price
-20%
$136.80 USD
Sale price
$109.44 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

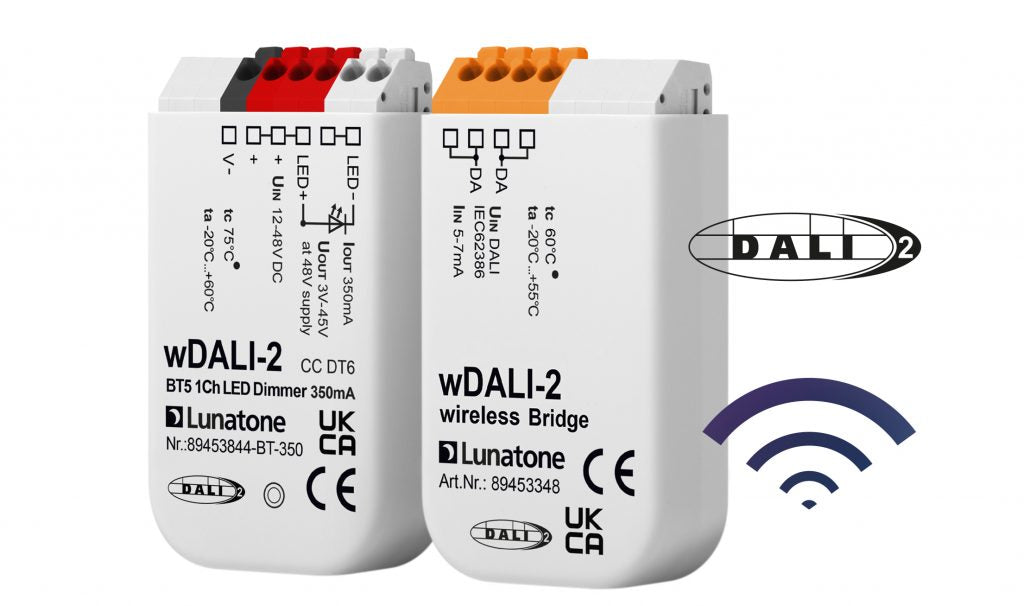

The Lunatone wDALI-2 BT5 1Ch LED Dimmer puts a constant-current DALI dimming channel where no bus wire runs. The receiver module drives one CC LED channel (350mA, 12–48V DC input) and gets its DALI commands over Bluetooth 5 Long Range from a wDALI-2 BT5 Bridge on the DALI line. One DALI address, switched and dimmed like any wired driver — across a gap of 8–12m indoors (up to 150m open field).
Key features
- 1 channel, 350mA constant current PWM; output 3–45V, up to 15.75W per channel
- SELV supply 12–48V DC — safe low-voltage installation at the luminaire
- DALI DT6; configurable power-on behaviour; DALI Cockpit configuration
- Compact 59 × 33 × 15 mm back-box format
Technical specifications
| Supply | 12–48V DC (SELV) |
| Output | 1 × 350mA CC PWM, 3–45V |
| Wireless | Bluetooth 5 Long Range, via wDALI-2 BT5 Bridge |
| Dimensions | 59 × 33 × 15 mm · IP40/IP20 |
Requires a wDALI-2 BT5 Bridge as transmitter on the DALI line — sold separately. Two channels: BT5 2Ch. Tunable white on one address: BT5 CW-WW DT8.
