MDT

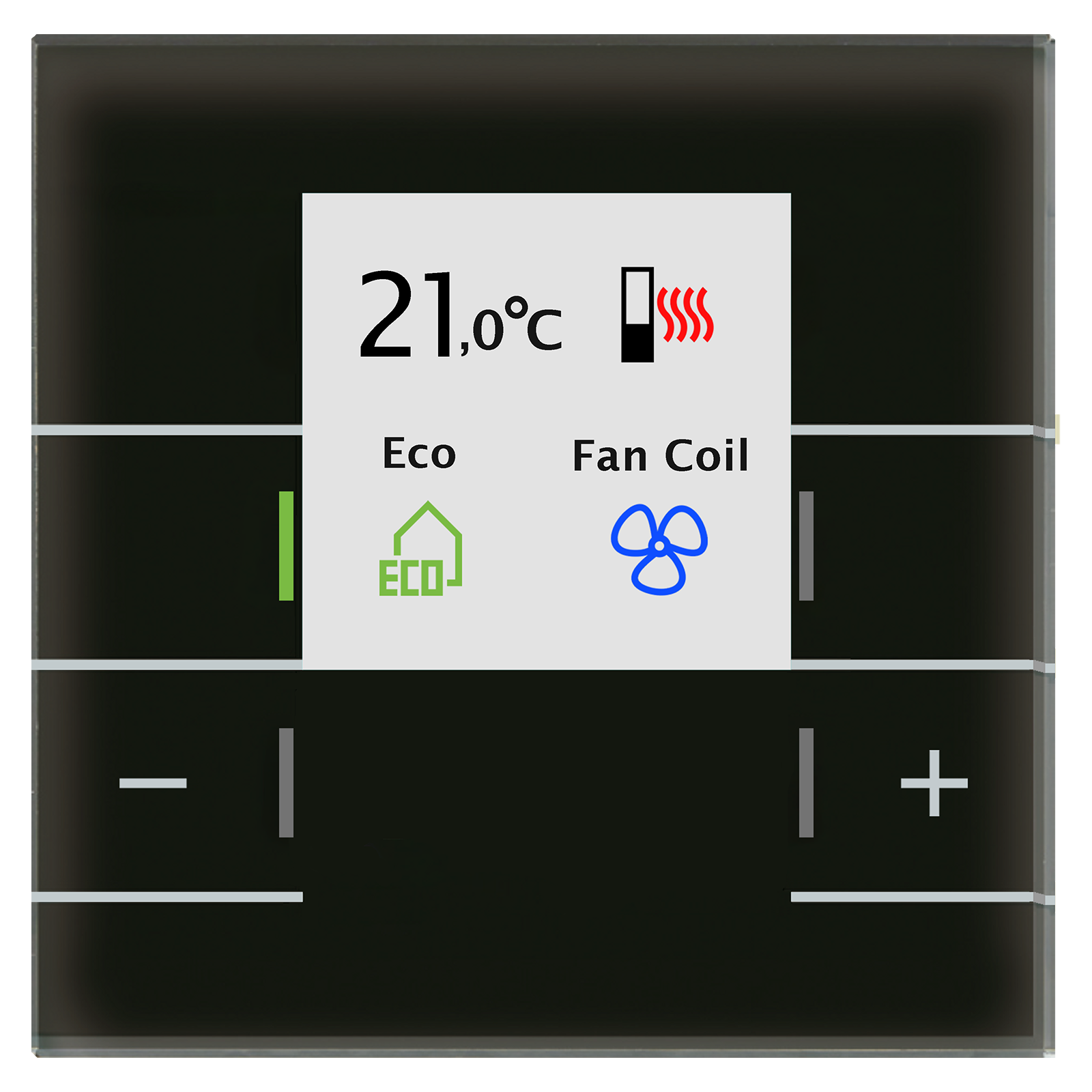

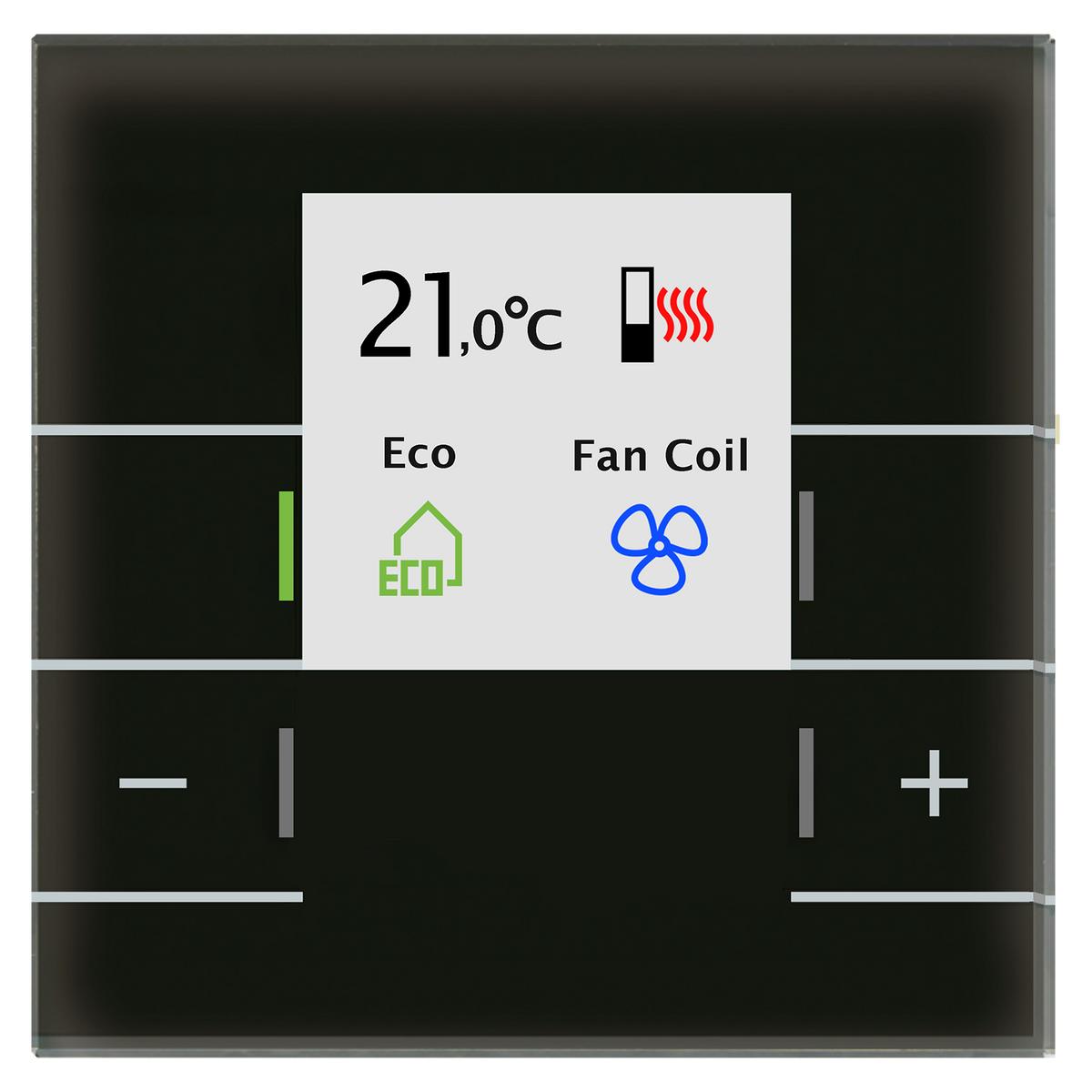

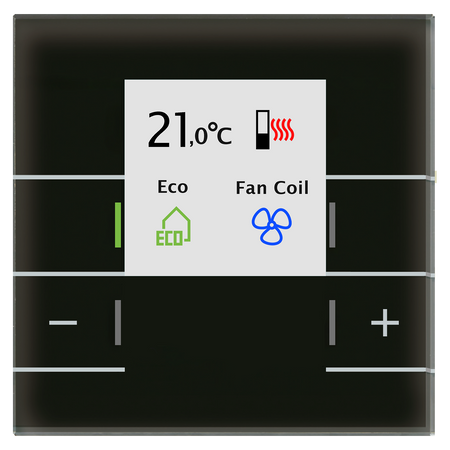

KNX Glas Room Temperature Controller Smart with colour display, Black

SKU: USA-SCN-RTRGS.02S
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$263.14 USD
-21% $334.50 USD $263.14 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Glas Room Temperature Controller Smart with colour display, Black.
  • Version with active colour display and 4 sensor surfaces.
  • With black housing rear part.
  • Active colour display for function and status indication.
  • Selectable background colour and brightness of the display (white or black).
  • Display of set- and actual temperature.
  • Room Temperature Controller for rooms, Measurement range -10 ... +50 °C.
  • Selectable controller type (2-step, PI, PWM).
  • Operation as room temperature extension unit possible.
  • Easy setpoint adjustment over separate +/- Push-buttons.
  • 1 Bit +/-, 1 Byte or 2 Byte absolute object for setpoint adjustment.
  • Setpoint storage in the event of a bus power failure.
  • Temperature min/max memory, messages and Frost/heat protection alarm. Operation mode change via Bit/Byte object.
  • Ventilation control with manual and automatic operation.
  • 14 Byte object for plain text diagnosis.
  • Installation in an installation box using the included installation frame.
  • Recommended installation height: 1.60 m. Dimensions (H x W): 92 x 92 mm.
  • Integrated Bus coupler. 3 year warranty.
