MDT

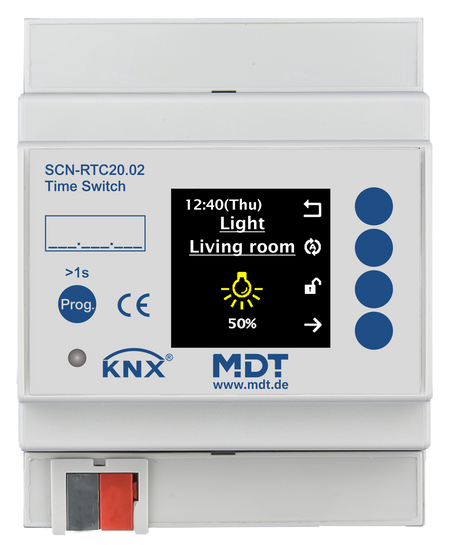

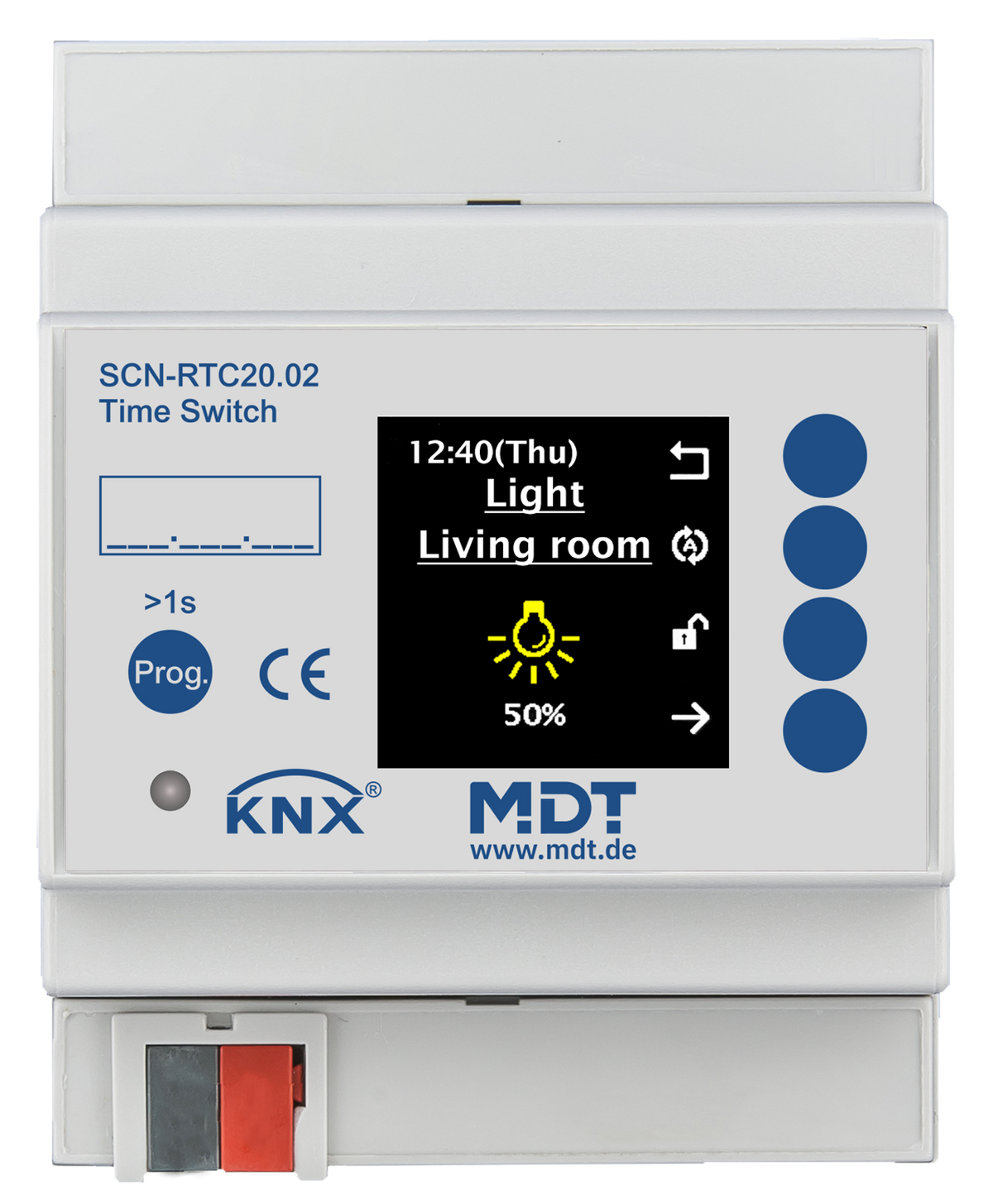

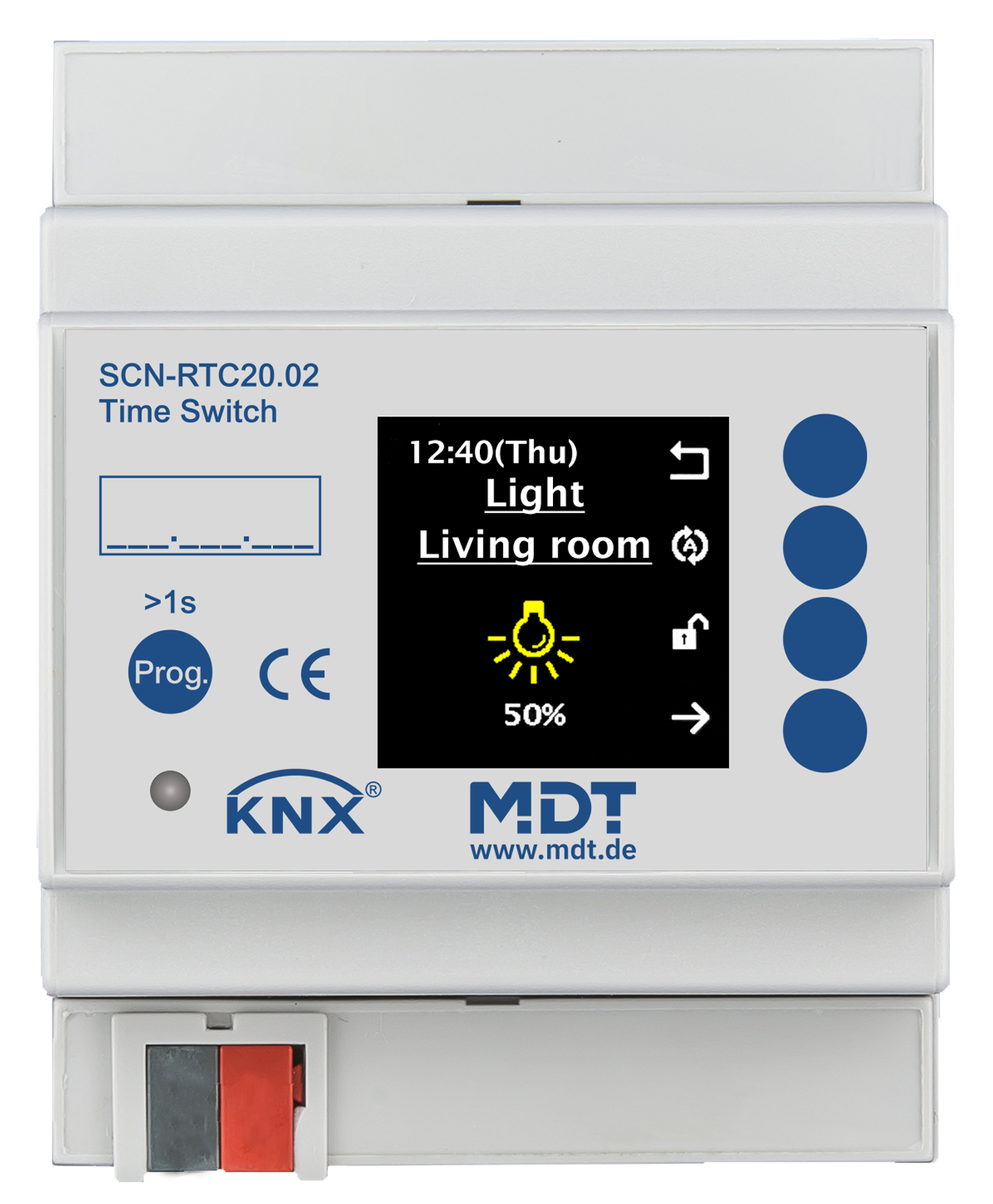

KNX Time Switch 20-channel with active colour display, 4 SU MDRC

SKU: USA-SCN-RTC20.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$274.94 USD
-21% $349.50 USD $274.94 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Time Switch 20-channel with active colour display, 4 SU MDRC.
  • Time Switch with daily-/weekly-/astro switch function.
  • Version in Modular DIN Rail Component (MDRC) enclosure.
  • Time switch with 20 channels (8 switching times per channel).
  • Switch times adjustable with the ETS and on the device.
  • Daily-/weekly-/astro switch function, power reserve.
  • Automatic bank holiday calculation.
  • Output object for Date and Time (Master).
  • Date and time adjustable over the KNX Bus (Slave).
  • Specific channel for day/night function.
  • Blind function to control height and slats per channel.
  • Output object for azimuth and elevation.
  • Security against unauthorised access through code lock function.
  • Catch up function for switching times, adjustable per channel.
  • Cyclic sending in normal operation.
  • Threshold value comparator 1 - 4 Byte.
  • 8 logic blocks each with 4 inputs.
  • 3 year warranty.
