MDT

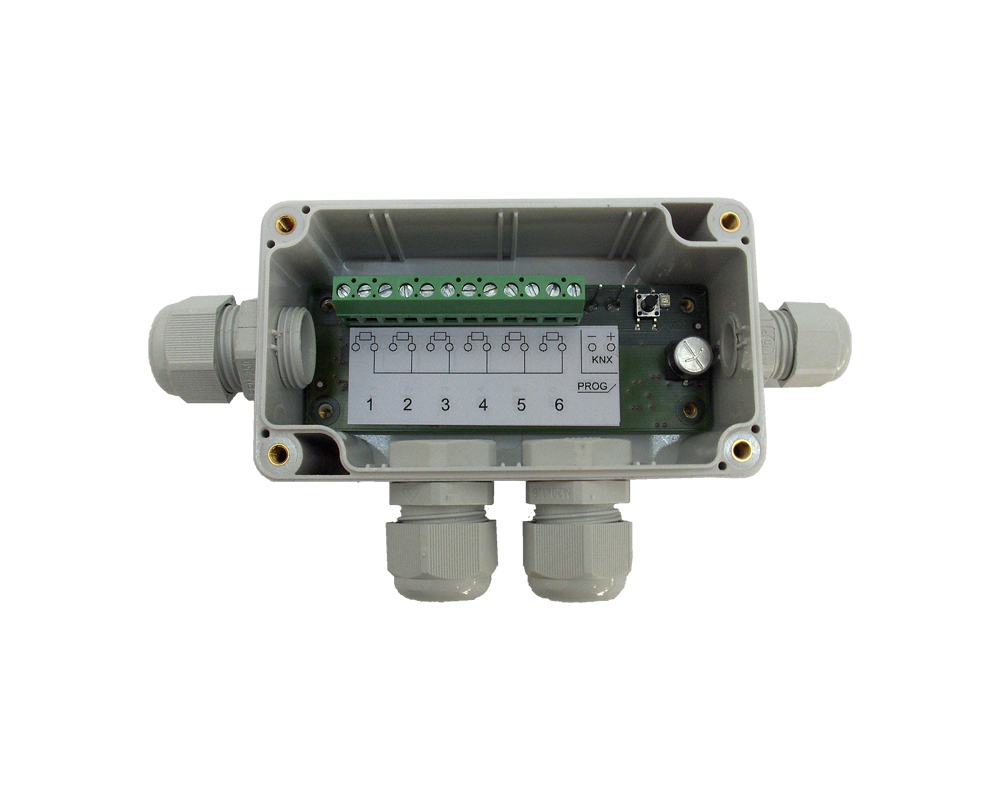

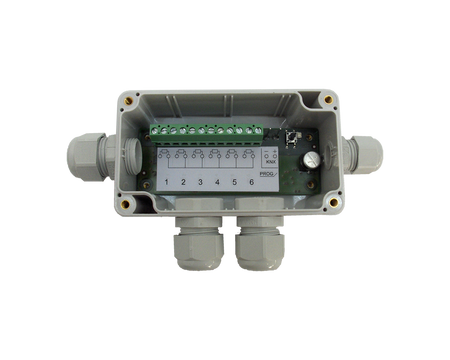

KNX Temperature Controller/Sensor 6-channel, surface mounted

SKU: USA-SCN-RT6AP.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$300.90 USD
-21% $382.50 USD $300.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Temperature Controller/Sensor 6-channel, surface mounted.
  • PT1000 for surface installation, sensor up to 12 m in length.
  • 6 channel temperature sensors for heating/ventilation, Integrated controller.
  • Selectable controller type (2-step, PI, PWM) or sensor operation.
  • Temperature measurement over external PT1000 sensor.
  • Temperature range -20 ... +100 °C.
  • Temperature min/max memory, messages and Frost/heat protection alarm.
  • Cyclic sending, selectable.
  • Day-/night-/frost-/heat protection mode, cooling function.
  • Status via HVAC and RHCC objects.
  • Operation mode change via Bit/Byte object.
  • Setpoint adjustment via visualisation, e.g MDT VisuControl.
  • Surface mounted casing including cable glands.
  • Integrated Bus coupler.
  • 3 year warranty.
