MDT

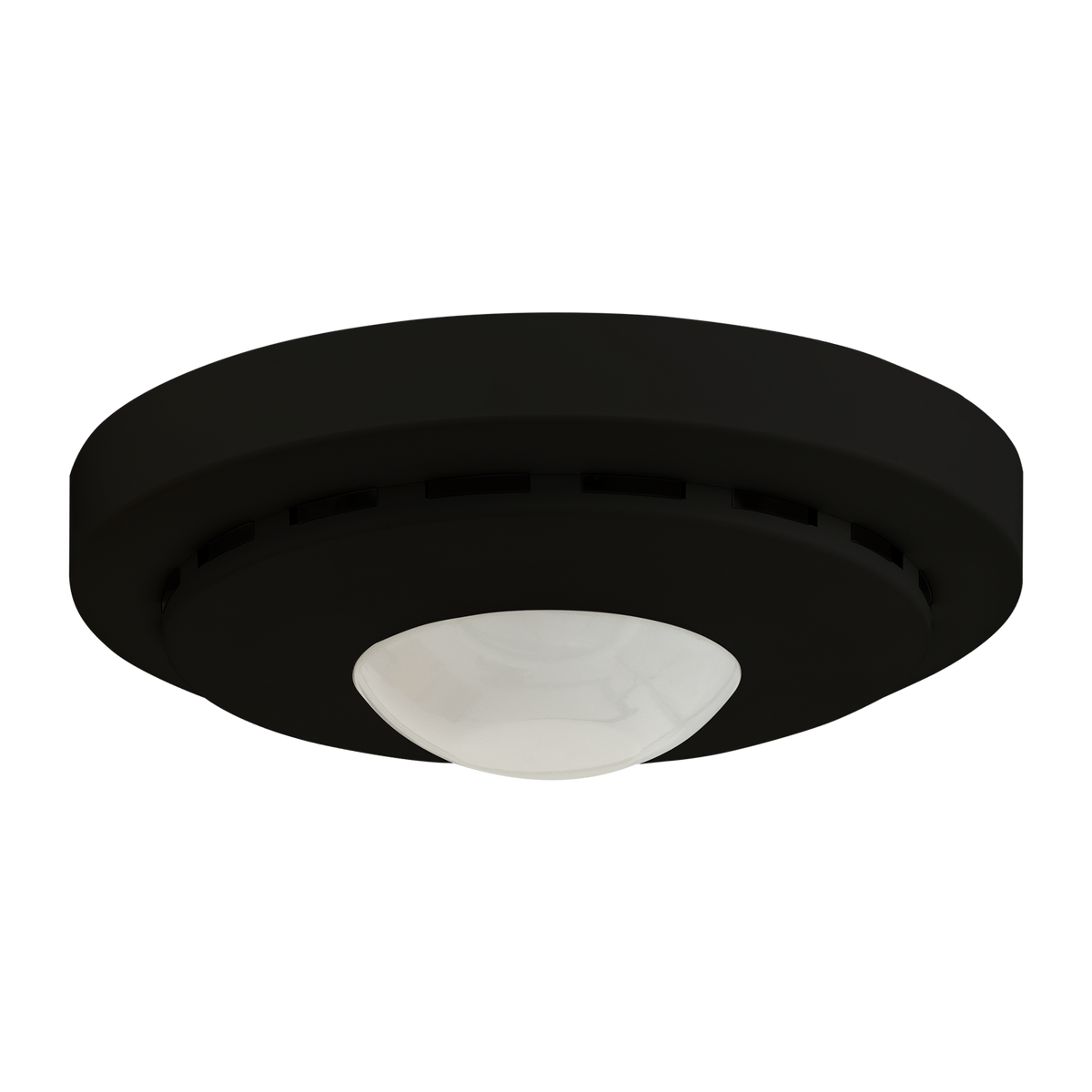

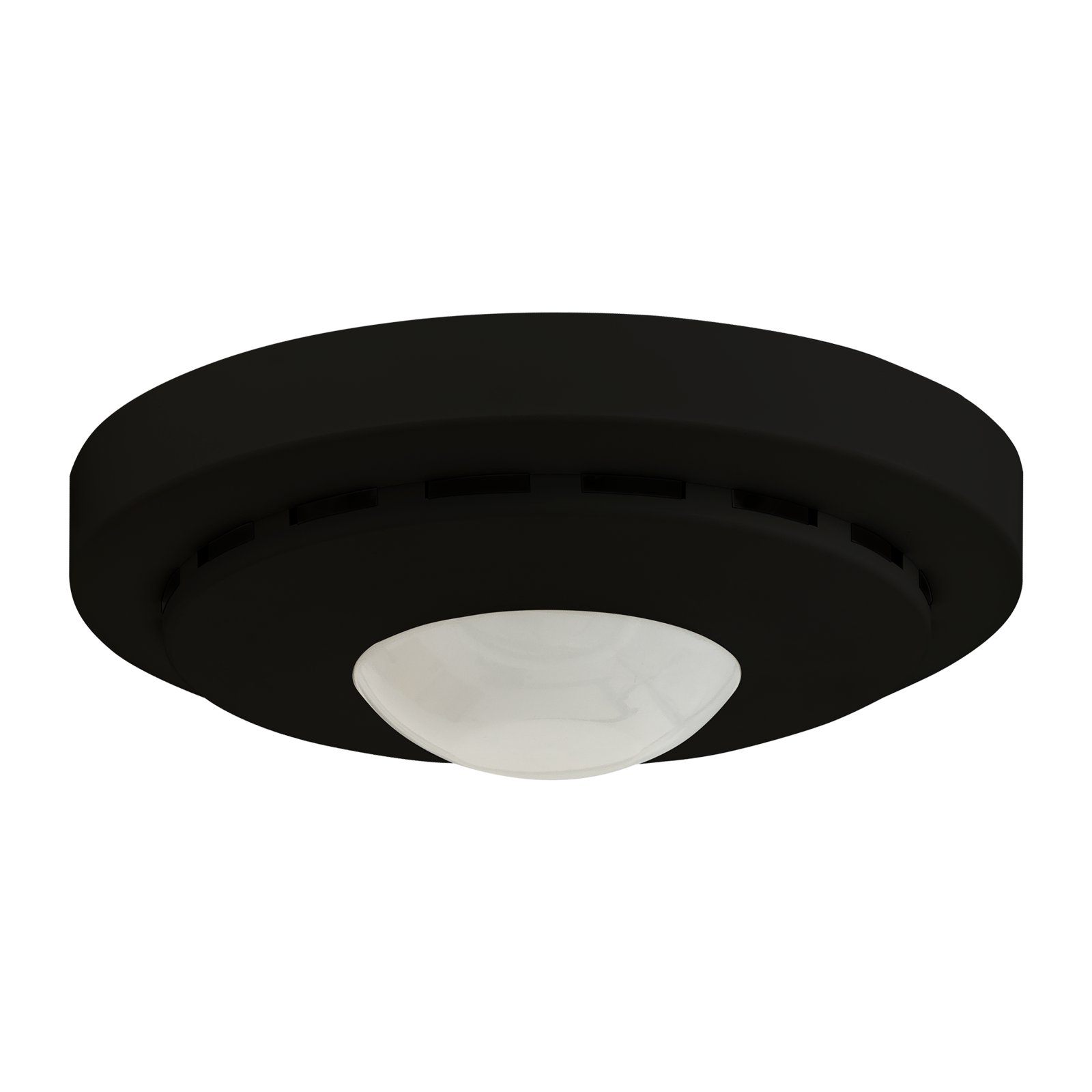

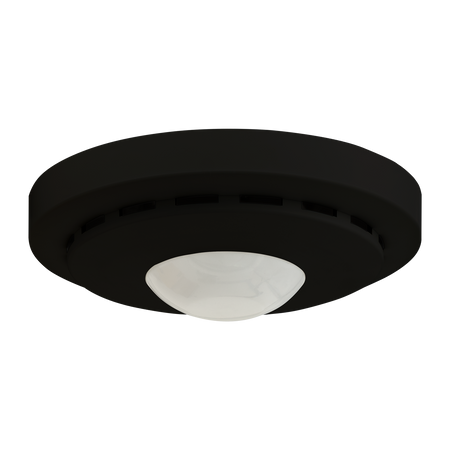

KNX Combi-Presence Detector 360° with room climate sensors, Black matt finish

SKU: USA-SCN-KP360K306.03
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$514.48 USD
-21% $654.00 USD $514.48 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Combi-Presence Detector 360° with room climate sensors, Black matt finish.
  • Passive infrared presence detector with 3 sensors for ceiling installation.
  • Intelligent constant light control for up to 3 rows of luminaires.
  • Sensors for CO2 and VOC mixed gas concentration, relative humidity and temperature.
  • Upper and lower threshold value selectable per measured value.
  • Air quality visualisation via internal RGB LED.
  • Air quality status indication light for CO2 or VOC concentration with 4 colour channels and adjustable output objects (1-bit / scenes / RGB / HSV).
  • 360° angle of detection, Range Ø 11 m, Presence Ø 5 m.
  • 1 HVAC- and 1 Alarm-/ message object.
  • Selectable trigger- and presence sensitivity for day, night and Alarm.
  • Short-term presence to reduce the follow up time.
  • Blocking- and forced operation with release time.
  • Air quality control function selectable as step-/ PI-controller for CO2-/ or VOC-sensor.
  • Integrated room temperature controller with settable control parameters and externally adjustable setpoint value.
  • 3 year warranty.
