MDT

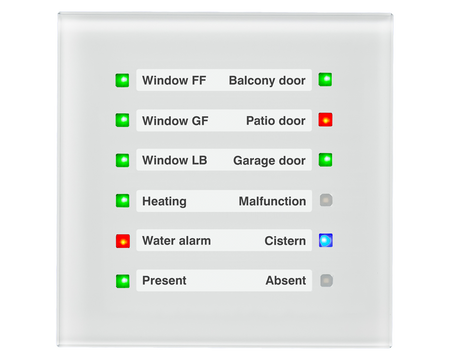

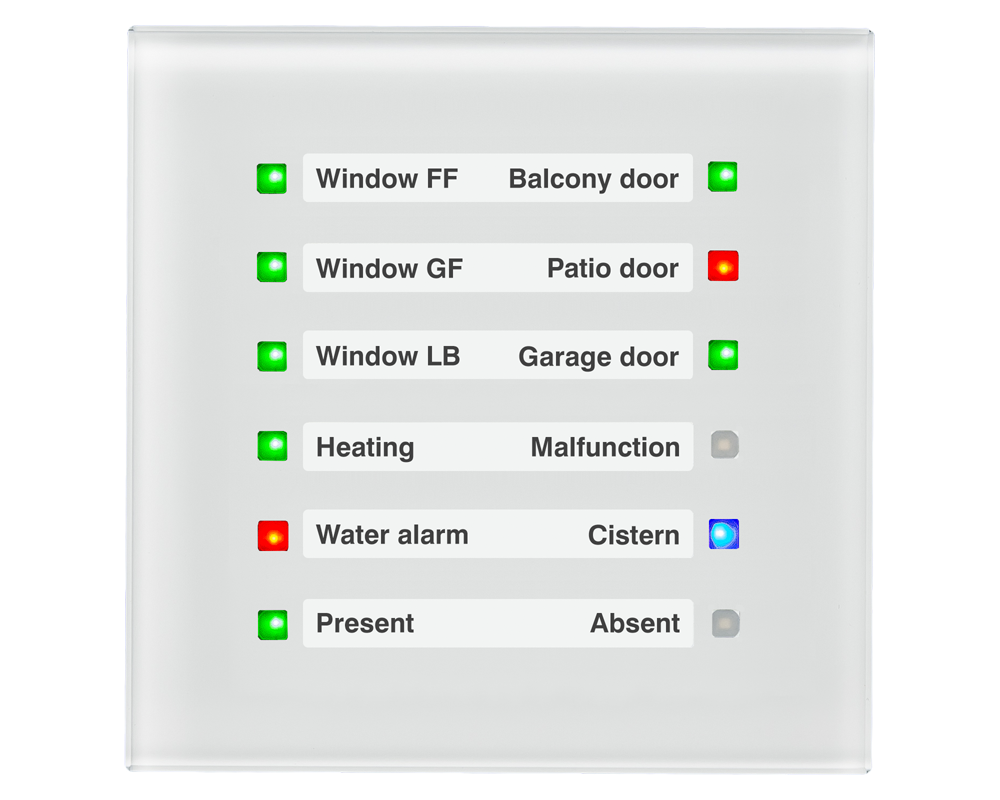

KNX Glass LED Indicator, White

SKU: USA-SCN-GLED1W.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$227.74 USD
-21% $289.50 USD $227.74 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Glass LED Indicator, White.
  • Version with 12 RGB-LEDs.
  • 12 switchable RGB status LEDs.
  • Labelling foil to insert under the glass surface.
  • 3 Objects per LED.
  • 5 possible states per LED (Value=0, Value=1, 2 Priorities object, Object failure).
  • 8 logic blocks each with 8 inputs.
  • 4 Modules to compare telegrams.
  • 2 Brightness levels.
  • Day/Night function.
  • Switch off/reduction of brightness.
  • Present/absence object.
  • Failure monitoring of the objects with an alert function.
  • Object with reporting function (e.g. absence or open window).
  • Installation in an installation box using the included installation frame.
  • Dimensions (H x W): 92 x 92 mm.
  • Integrated Bus coupler.
  • 3 year warranty.
