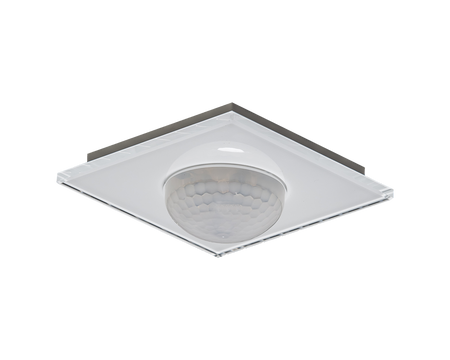

KNX Glass Presence Detector 360° with constant light control and a temperatur sensor, White

SKU: USA-SCN-G360K3.03
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$259.60 USD
-21% $330.00 USD $259.60 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Glass Presence Detector 360° with constant light control and a temperatur sensor, White.
  • Version for installation in an installation box in hollow ceilings.
  • Intelligent constant light control for up to 3 rows of luminaires.
  • Comprehensive application.
  • Glass front in white, integrated temperature sensor.
  • 3 sensors in combination with a diffusion lens for presence detection.
  • Selectable trigger- and presence sensitivity for day, night and Alarm.
  • Range Ø 11 m, Presence Ø 5 m.
  • 3 Light channel, sensors can be evaluated singly.
  • 1 HVAC- and 1 Alarm-/ message object. Short-term presence to reduce the follow up time.
  • Intelligent toggle function for automatic and manual operation.
  • Blocking- and forced operation with release time.
  • Extensive day/night function with a second switching object.
  • Integrated white LED nightlight.
  • Orientation light function when leaving the room.
  • Prevention of failure messages for alarm channels through reduction of sensitivity and adjustable observation window.
  • 3 year warranty.
