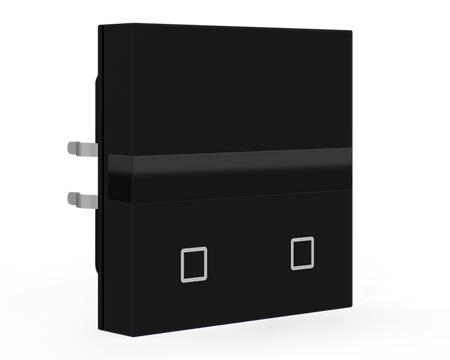

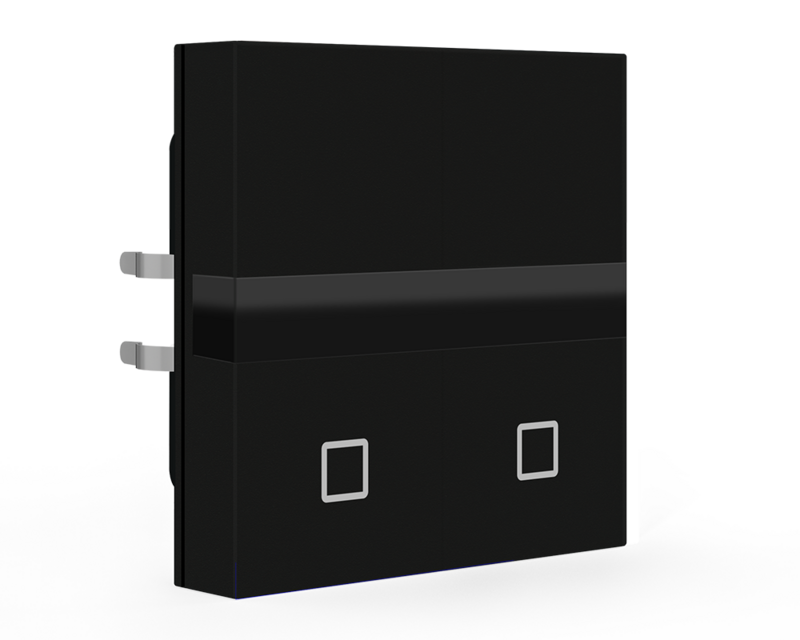

KNX Motion Detector/Automatic Switch TS 55, Black matt

SKU: USA-SCN-BWM55T06.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$223.02 USD
-21% $283.50 USD $223.02 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

KNX Motion Detector/Automatic Switch TS 55, Black matt.

  • Version with temperature sensor and 2 sensor buttons.
  • Suitable for 55 mm switch ranges e.g. MDT assortment 55, GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
  • Motion detector with 2 sensors and brightness sensor.
  • Two sensor surfaces for selectable functions.
  • Temperature sensor to measure the room temperature.
  • Detection angle H 180° / V 15°, area of detection 6 ... 10 m.
  • Suitable for house pets up to 12 kg.
  • Activation sensitivity for day, night, and presence individually selectable.
  • Detection of movement direction.
  • 2 Light channels, 1 HVC- and Alarm channel.
  • Short-term presence to reduce the follow up time.
  • Master/slave function, scenes and logic functions.
  • Integrated white LED nightlight.
  • Day/night function, orientation light function.
  • Blocking- and forced operation with release time.
  • External Push-button input for automatic and manual operation.
  • Recommended installation height: 1.05 ... 1.20 m.
  • Integrated Bus coupler.
  • 3 year warranty.
