MDT

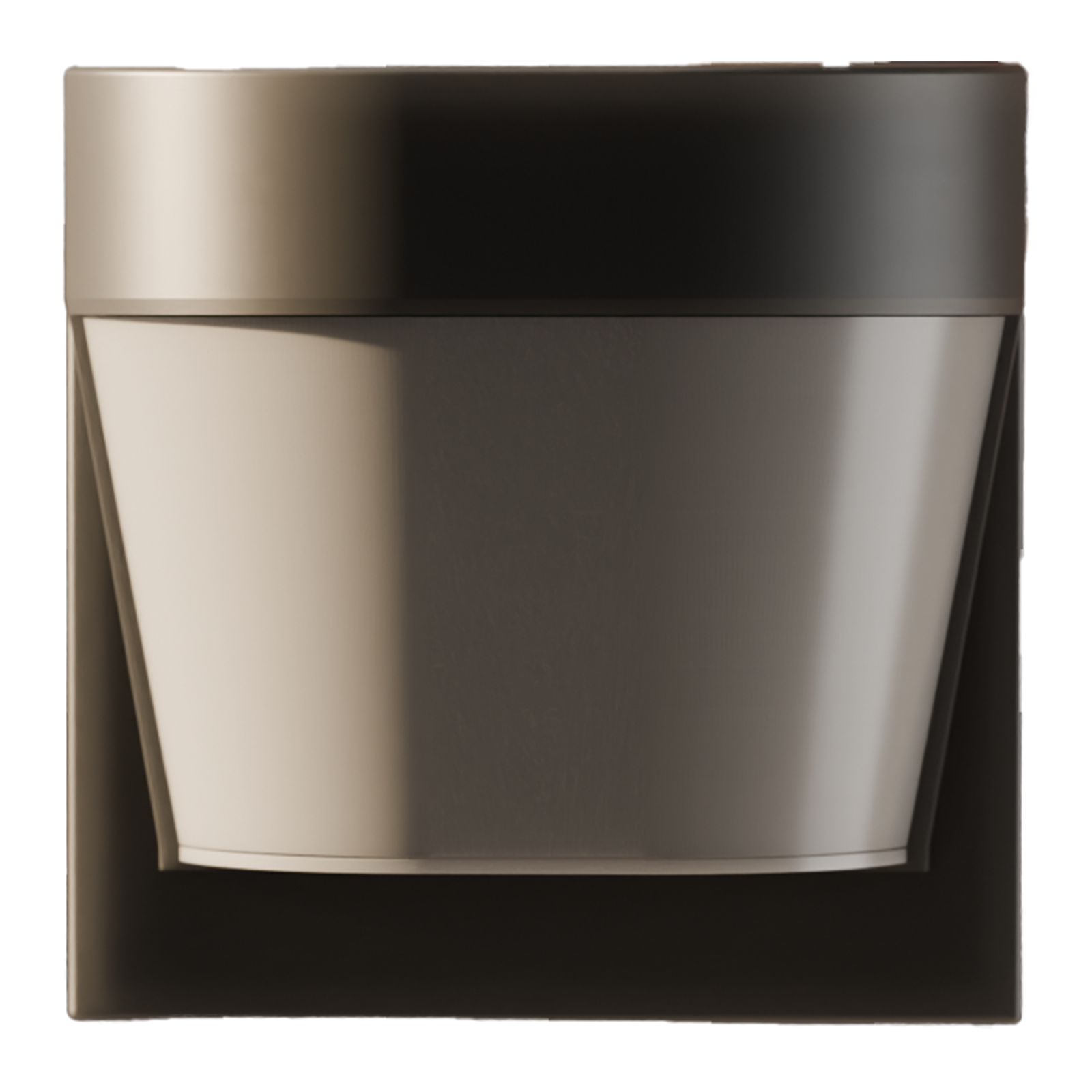

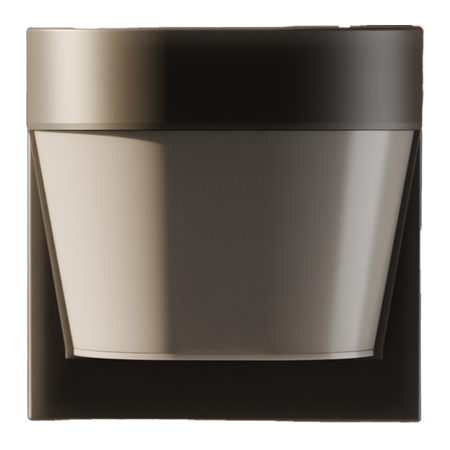

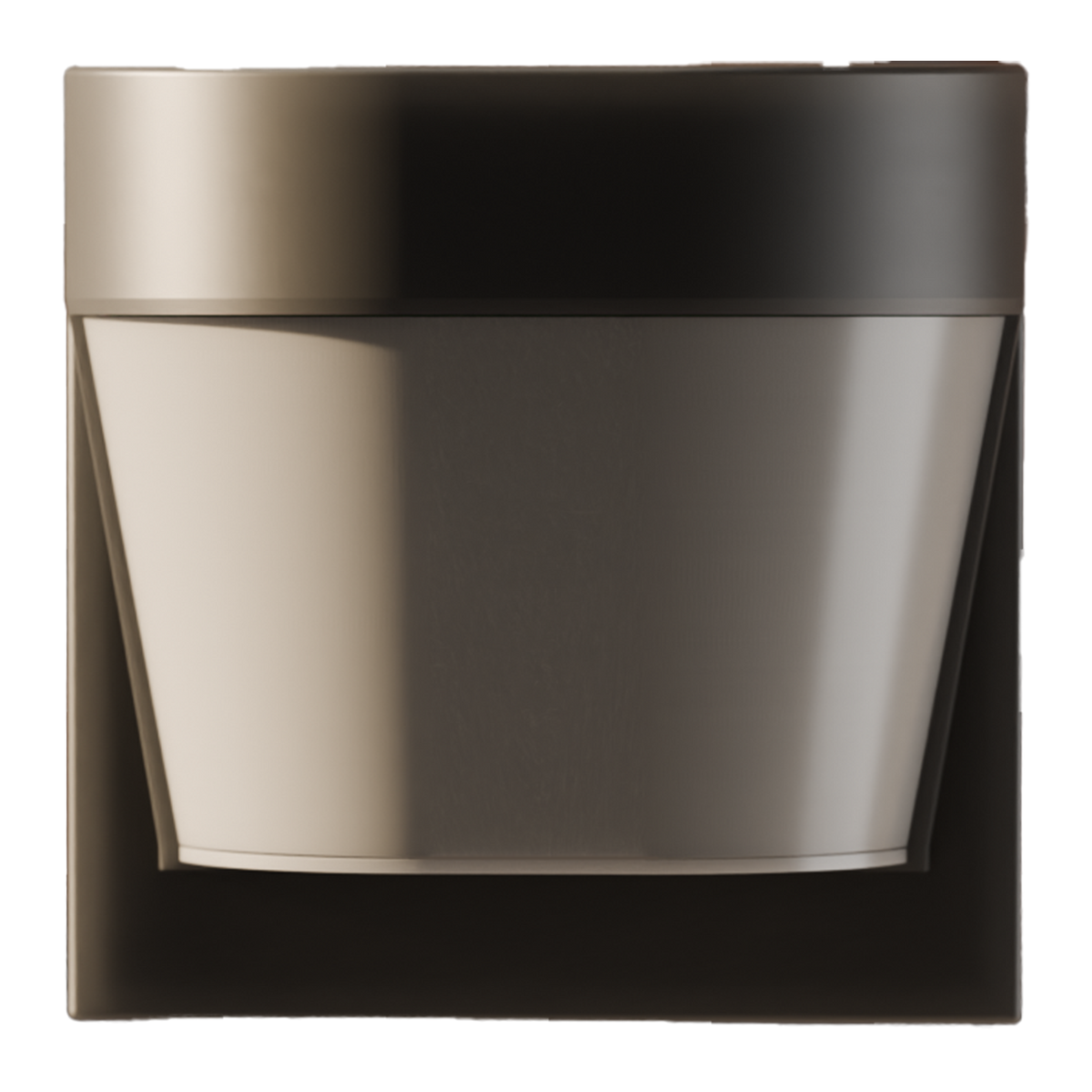

KNX Motion Detector 2.2 m TS 55, black matt

SKU: USA-PSE-B552T06.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$205.32 USD
-21% $261.00 USD $205.32 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Motion Detector 2.2 m TS 55, black matt.
  • Motion Detector with 2 sensors and temperature sensor.
  • For wall mounting at 2.2 m.
  • Suitable for 55 mm switch ranges e.g. MDT assortment 55 or GIRA E2 or BERKER B3, B7 or JUNG A 550 or Merten M-Pure.
  • Motion detector with 2 sensors and brightness sensor.
  • Temperature sensor to measure the room temperature.
  • Activation sensitivity for day, night, and presence individually selectable.
  • 2 Light channels, 1 HVC- and Alarm channel.
  • Short-term presence to reduce the follow up time.
  • Master/slave function, scenes and logic functions.
  • Day/Night function.
  • Blocking- and forced operation with release time.
  • External Push-button input for automatic and manual operation.
  • Recommended installation height: 2.20 m.
  • Installation in an installation box using the included installation frame.
  • Integrated Bus coupler.
  • 3 year warranty.
