MDT

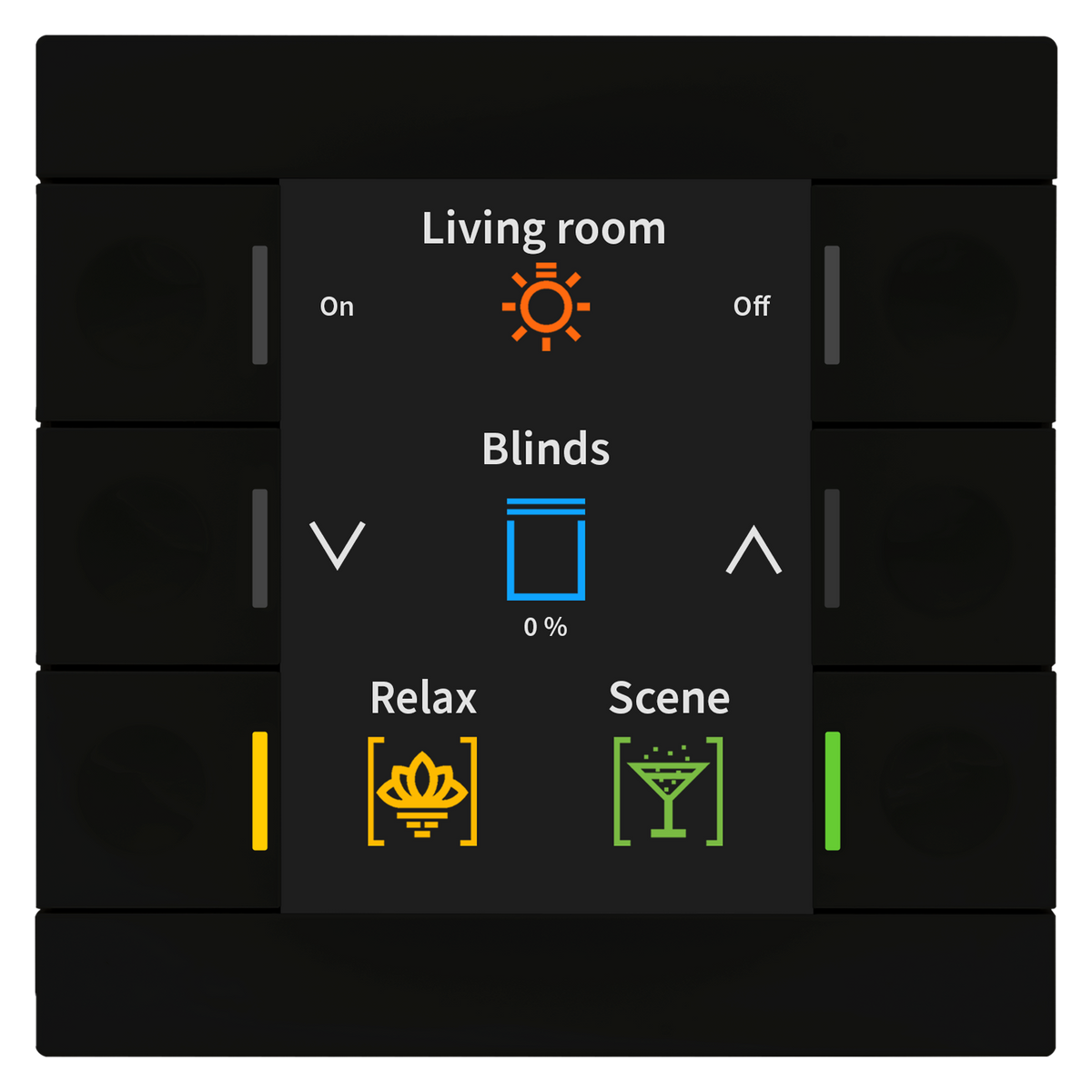

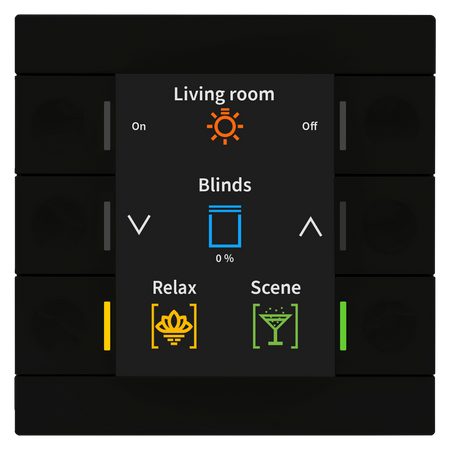

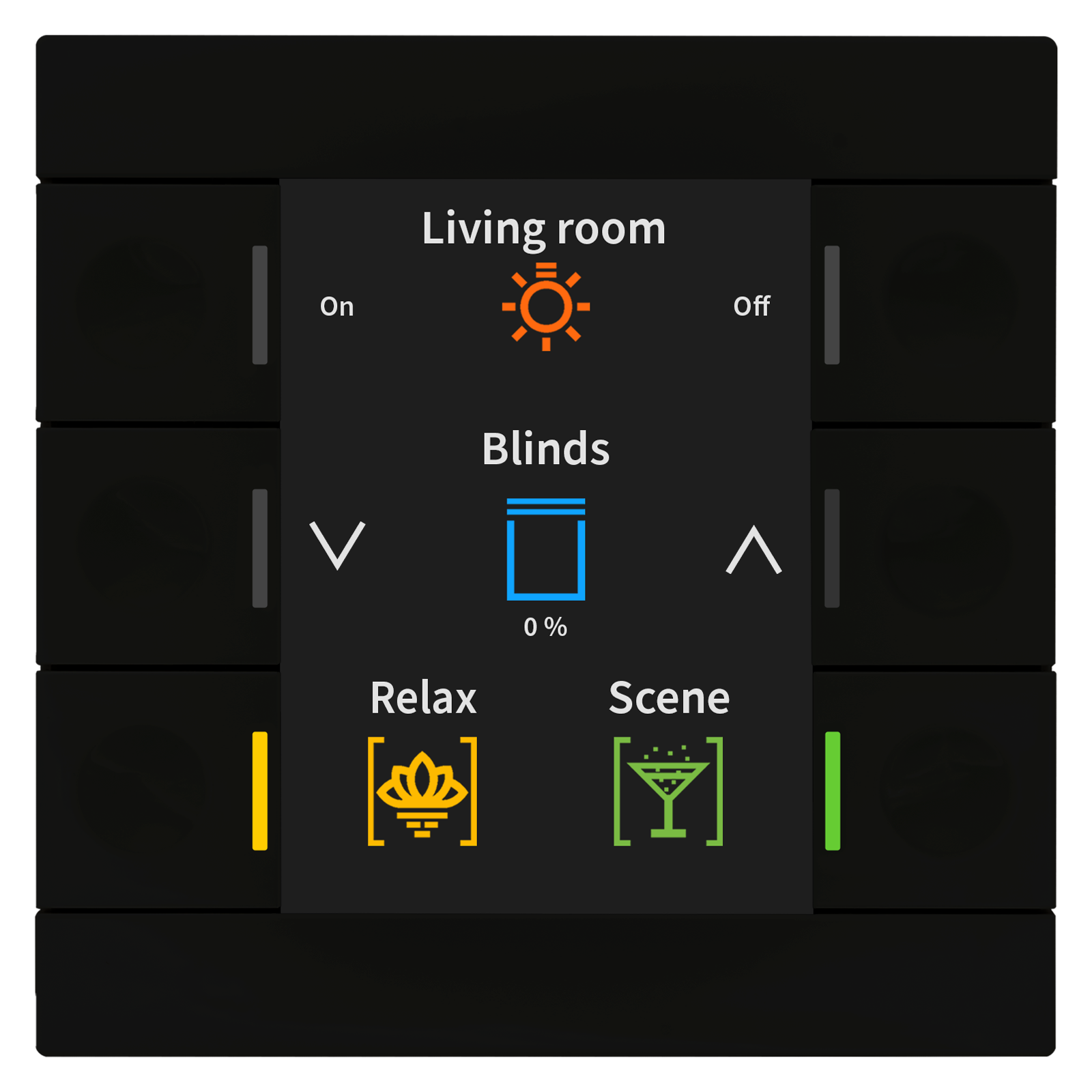

KNX Push Button Smart 86 with colour display, Plastic, Black matt finish

SKU: USA-BE-TAS8606.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$279.66 USD
-21% $355.50 USD $279.66 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Push Button Smart 86 with colour display, Plastic, Black matt finish.
  • Version with six ergonomically designed mechanical buttons, colour display and RGB status indication.
  • Applicable as 4/6/8/12-gang Push-button.
  • Large, active colour display for functions- and status indication.
  • Up to 12 functions on 2 or 3 levels (2 x 6 or 3 x 4 functions).
  • Up to 6 functions without level changing.
  • Mapping function for convenient function allocation.
  • Slap function with extended function range.
  • Innovative group control with long/extra long button press.
  • Extended info display with up to 6 values in 3 lines.
  • The buttons can be configured as pairs or as singular buttons.
  • Adjustable symbols and texts for each button/function.
  • Display of status information (1 Bit) and notification (14 Byte).
  • Singular and double Push-button operation for switching, dimming, shutters, values.
  • RGB status LEDs individually adjustable per level.
  • Display of inside-/outside temperature and time of day.
  • Display brightness automatically over light sensor and day/night object.
  • No additional power supply required.
  • Recommended installation height: 1.10 ... 1.25 m (as Push-button).
  • Frameless mounting in installation box.
  • Dimensions (H x W): 86 x 86 mm.
  • Integrated Bus coupler.
