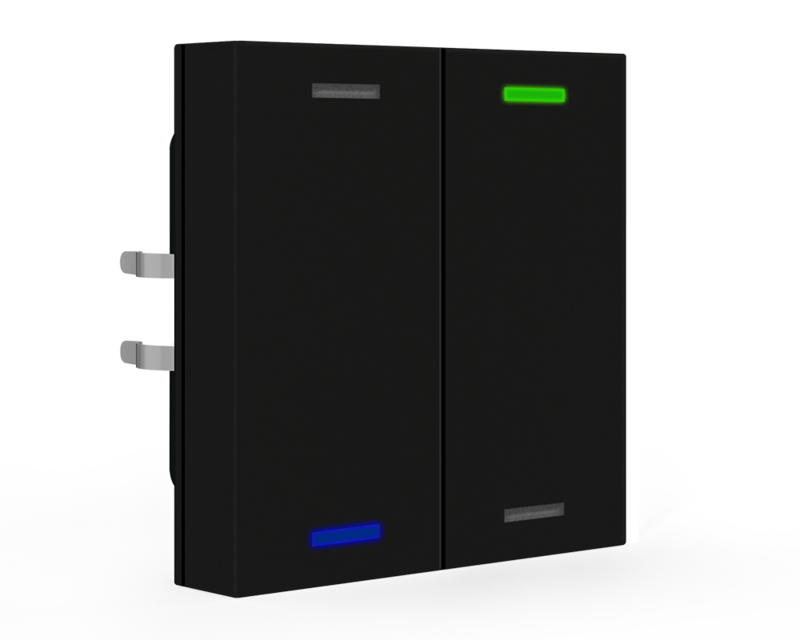

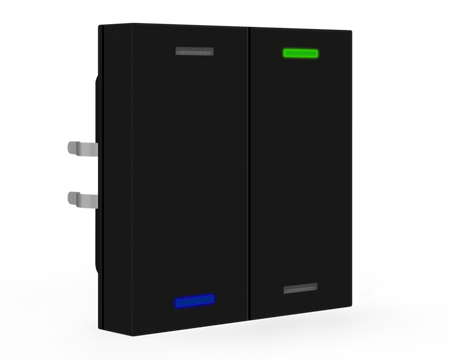

KNX Push Button Lite 55 2 gang, RGBW, neutral, Black matt

SKU: USA-BE-TAL550206.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$134.52 USD
-21% $171.00 USD $134.52 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

KNX Push Button Lite 55 2 gang, RGBW, neutral, Black matt.

  • Version neutral with 2 Push-button pairs / 4 Push-buttons.
  • Suitable for 55 mm switch ranges e.g. MDT assortment 55, GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
  • The buttons can be configured as pairs or as singular buttons.
  • Singular and double Push-button operation for switching, dimming, shutters, values.
  • Toggle up to four values or scenes.
  • Short/Long button press with 2 objects.
  • Innovative group control with long/extra long button press.
  • Multitouch-function, sends up to 4 values on the same or different objects.
  • Two RGBW status LEDs per Push-button pair.
  • LED brightness controllable via a day/night- or brightness object.
  • 4 Logic blocks.
  • Installation in an installation box using the included installation frame.
  • Integrated Bus coupler.
  • 3 year warranty.
