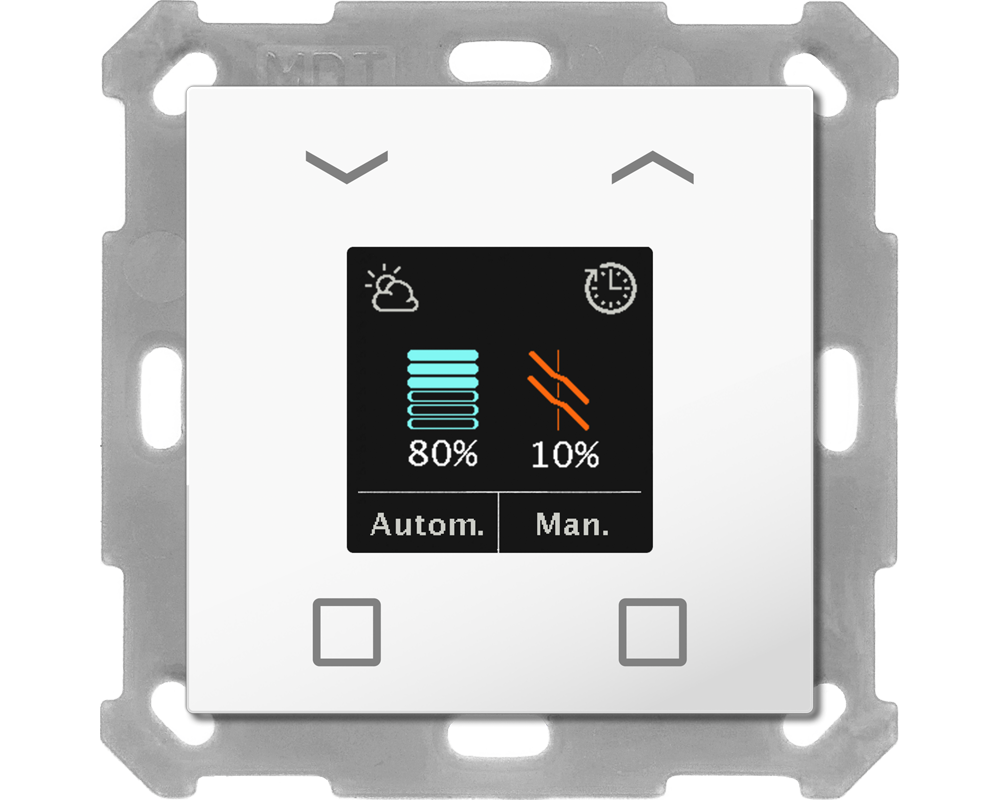

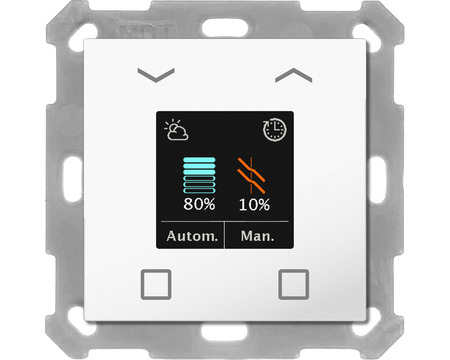

KNX Shutter Push-button Smart 55 4 gang, with colour display, White glossy finish

SKU: USA-BE-JTA5504.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$207.68 USD
-21% $264.00 USD $207.68 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Shutter Push-button Smart 55 4 gang, with colour display, White glossy finish.
  • Version with 4 Push-buttons and an integrated time switch.
  • Suitable for 55 mm switch ranges e.g. MDT assortment 55, GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
  • Active colour display for function and status indication.
  • Display brightness adjustable over brightness- and day/night object.
  • Display of height, slats and wind-/rain-/frost alarm.
  • Up/down Push-button for manual operation.
  • Innovative group control with long/extra long button press.
  • Time switch with 8 switching times, power reserve.
  • Daily-/weekly-/astro switch function.
  • Automatic bank holiday calculation.
  • Switching times adjustable over the ETS and Push-buttons.
  • Control of height and slats via the time switch.
  • Manual activation of the time switch and automatic sun shading.
  • Output object for Date and Time (Master).
  • Date and time adjustable over the KNX Bus (Slave).
  • 8 logic blocks each with 4 inputs.
  • No additional power supply required.
  • Integrated Bus coupler.
  • 3 year warranty.
