MDT

KNX Glass Touch Smart Plus 6 inch, KNX Data Secure, black

SKU: USA-BE-GTSP6TS.01S
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$738.68 USD
-21% $939.00 USD $738.68 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

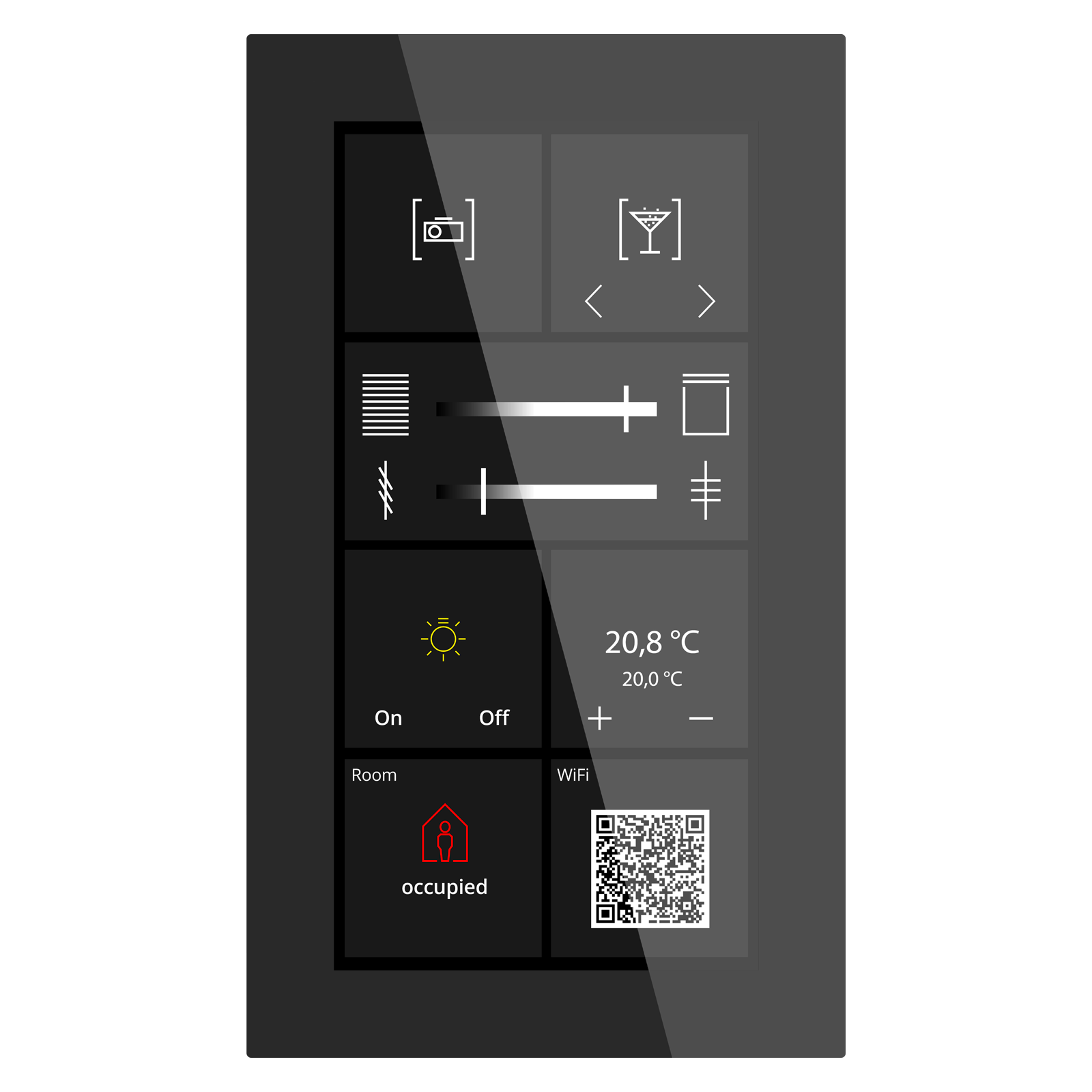

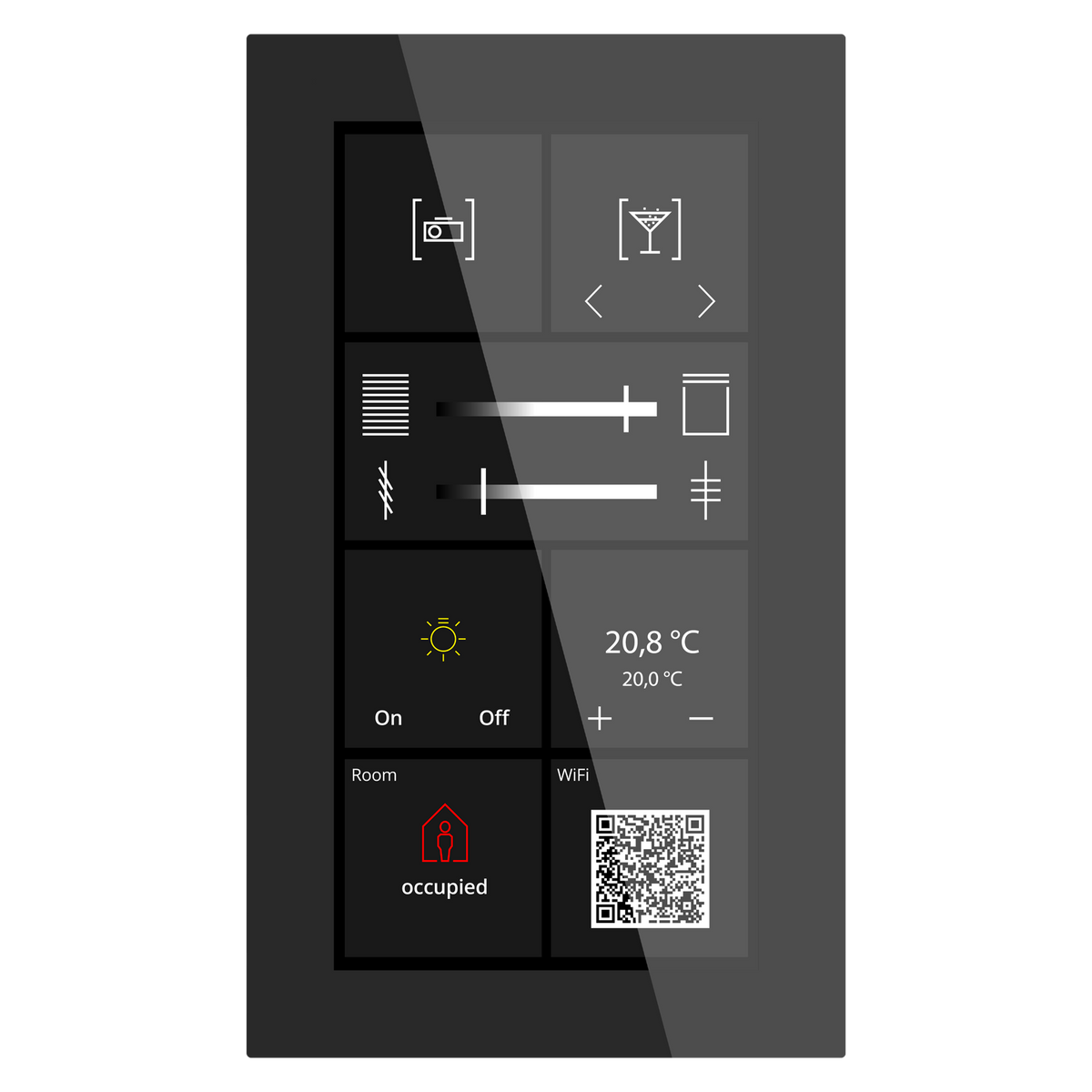

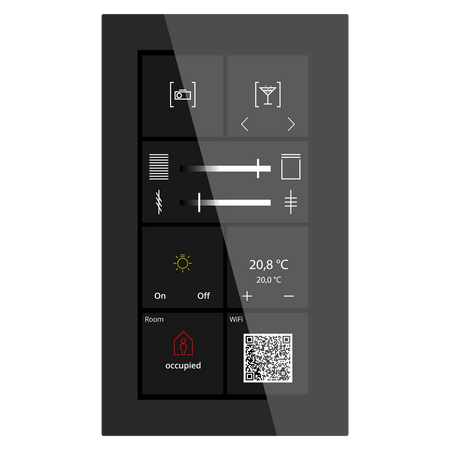

  • KNX Glass Touch Smart Plus 6 inch, KNX Data Secure, black.
  • Version with 6 inch colour display and circumferential white orientation light.
  • Up to 64 functions and up to 12 status displays in standby.
  • Multifunctional push-button with capacitive, high-resolution 6-inch TFT-colour display (1440 x 720 Pixel).
  • Elegant and detailed design, combining glass and brushed aluminium.
  • Intuitive user interface for straightforward control of room functions.
  • Circumferential RGBW-background illumination to signal individual operational status, alarms and orientation light.
  • Up to 64 functions on independent levels and 12 statuses in standby.
  • Room functions: switching, dimming, tuneable white, HSV, RGB, RGBW, sun shading, HVAC.
  • Shortcut function (to a specific level).
  • Comfortable room temperature controller with temperature sensor for heating and cooling operation.
  • Logic functions, scene control, innovative group control.
  • Display of status information (1 Bit) and notification (14 Byte).
  • Integrated loudspeaker for acoustical feedback (button press, signalling of alerts).
  • Security against unauthorised access through code lock function (4 users).
  • Individual customised design according to customer requirements (Logo, Background picture, design colour).
  • With anti-theft / anti-dismantling protection.
  • 2 Binary inputs to connect potential free contacts (Mechanical Push-buttons, Switches, window contacts).
  • With time switch.
  • Installation in a standard switch box (EU, UK, CH, CN). Auxiliary power 24 ... 30 V DC.
  • Integrated Bus coupler, KNX Data Secure.
  • Dimensions (H x W x D): 92 x 160 x 12.5 mm, horizontally or vertically.
