MDT

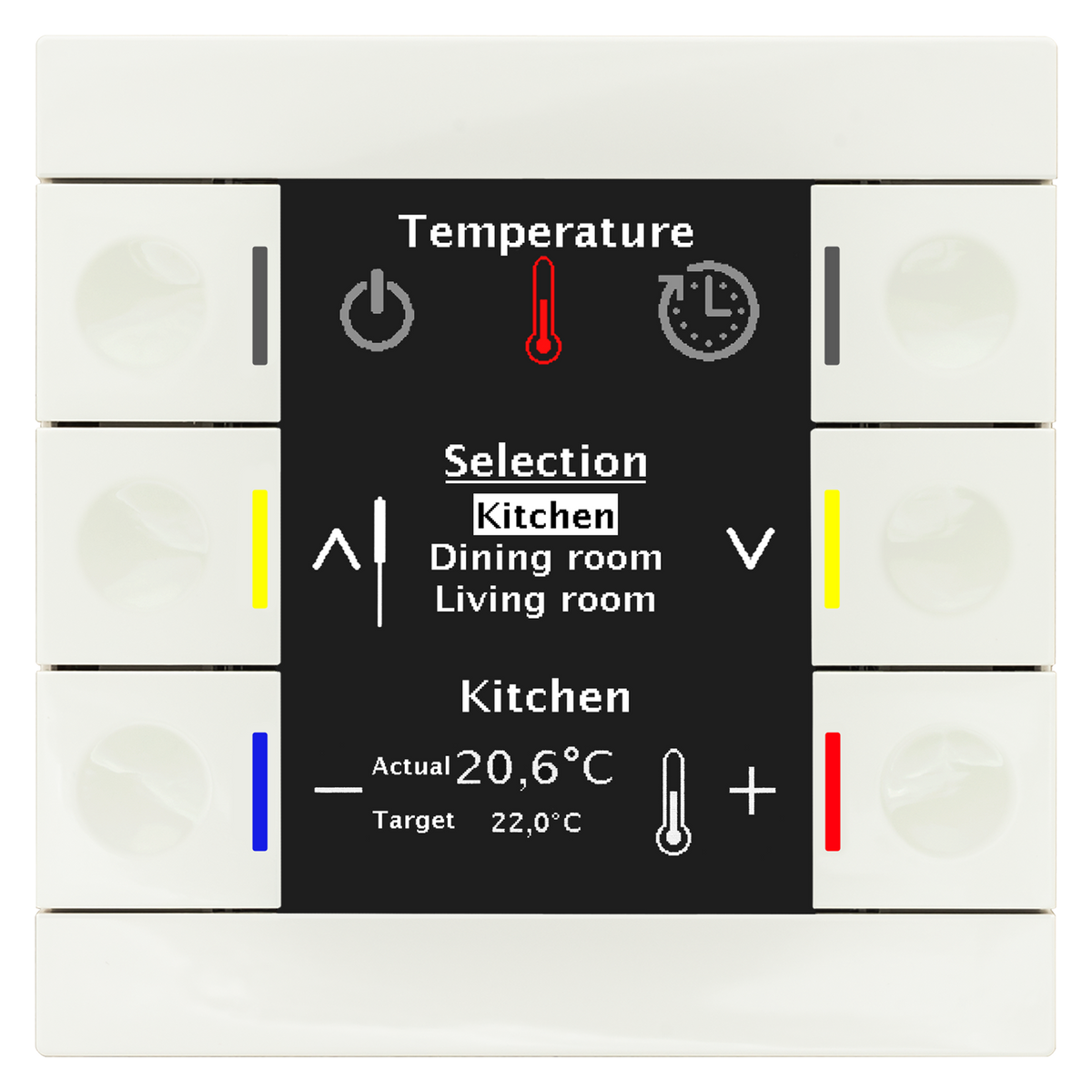

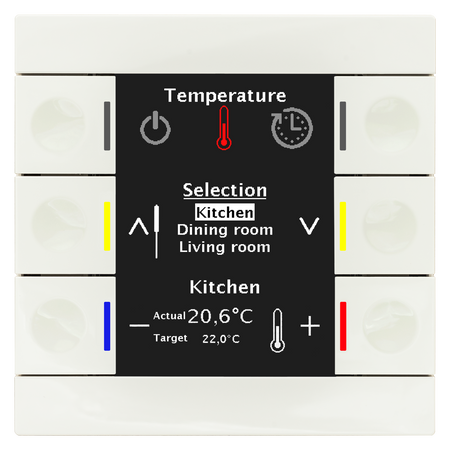

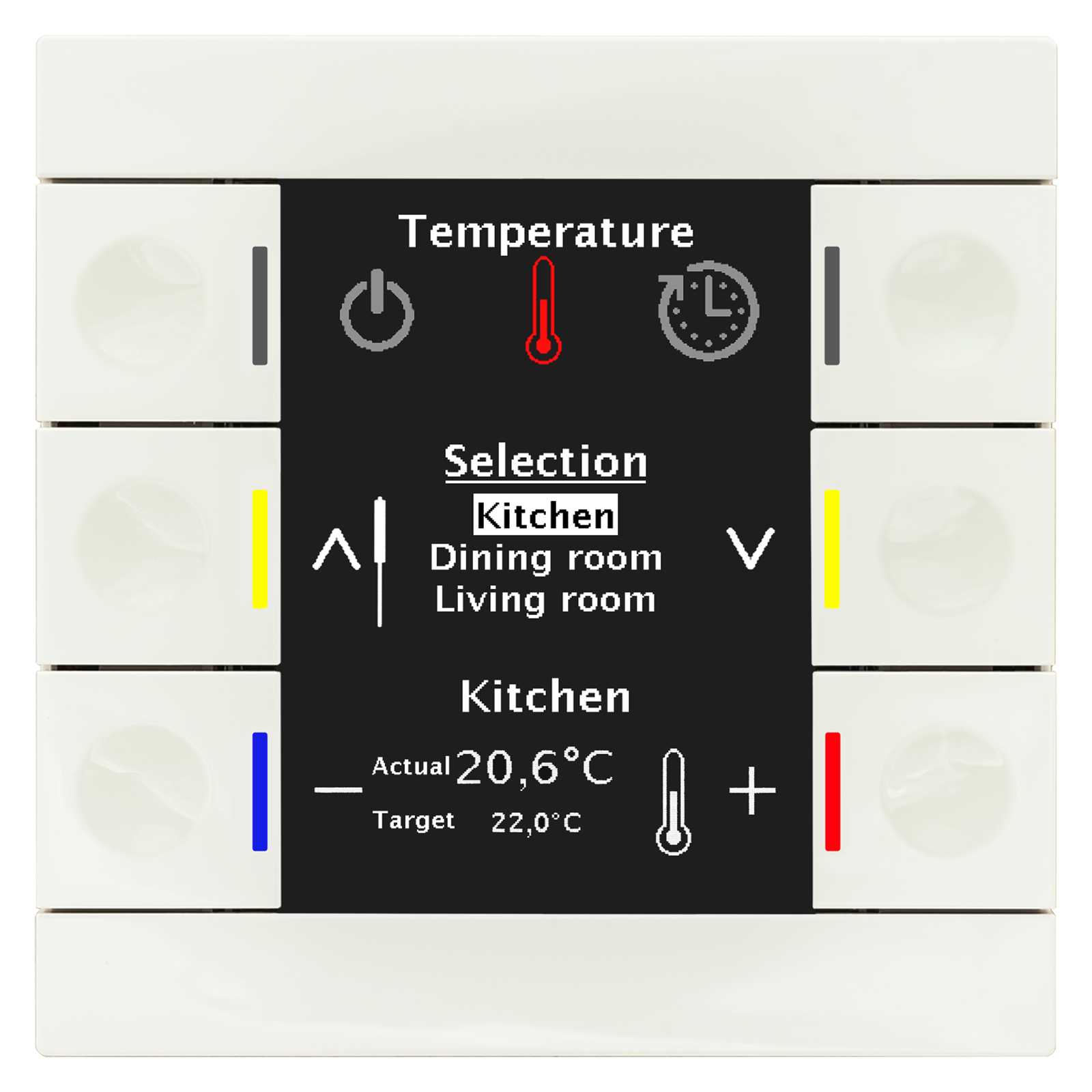

KNX Central Operation Unit Smart 86 with colour display, Plastic, White glossy finish

SKU: USA-BE-BZS86.01
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$366.98 USD
-21% $466.50 USD $366.98 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Central Operation Unit Smart 86 with colour display, Plastic, White glossy finish.
  • Version with six ergonimically designed mechanical buttons, colour display and RGB status indication.
  • Central operation unit with up to 24 functions, Time switch and integrated room temperature controller.
  • Large, active colour display (automatic brightness adjustment).
  • Four direct operating functions for frequently used functions.
  • 20 functions via menu and time switch (e.g. dimming/ blinds/ switching/ sending values/ scenes/ temperature setpoints).
  • Code lock with 4-6 digits, to lock and unlock the device or alarm activation.
  • Daily-/weekly-/astro switch function (20 channels each with 8 switching times).
  • Holiday function with time frame activation.
  • Automatic bank holiday calculation.
  • Comfortable room temperature controller with temperature sensor.
  • Ventilation control with manual and automatic operation.
  • Display of inside-/outside temperature, setpoint value and time of day/date.
  • Display of status information (1 Bit) and notification (14 Byte).
  • 6 status LEDs independently controllable.
  • 6 logic blocks each with 4 inputs.
  • No additional power supply required.
  • Installation in an installation box using the included installation frame.
  • Dimensions (H x W): 86 x 86 mm.
  • Recommended installation height: 1.60 m.
  • Integrated Bus coupler.
  • 3 year warranty.
