MDT

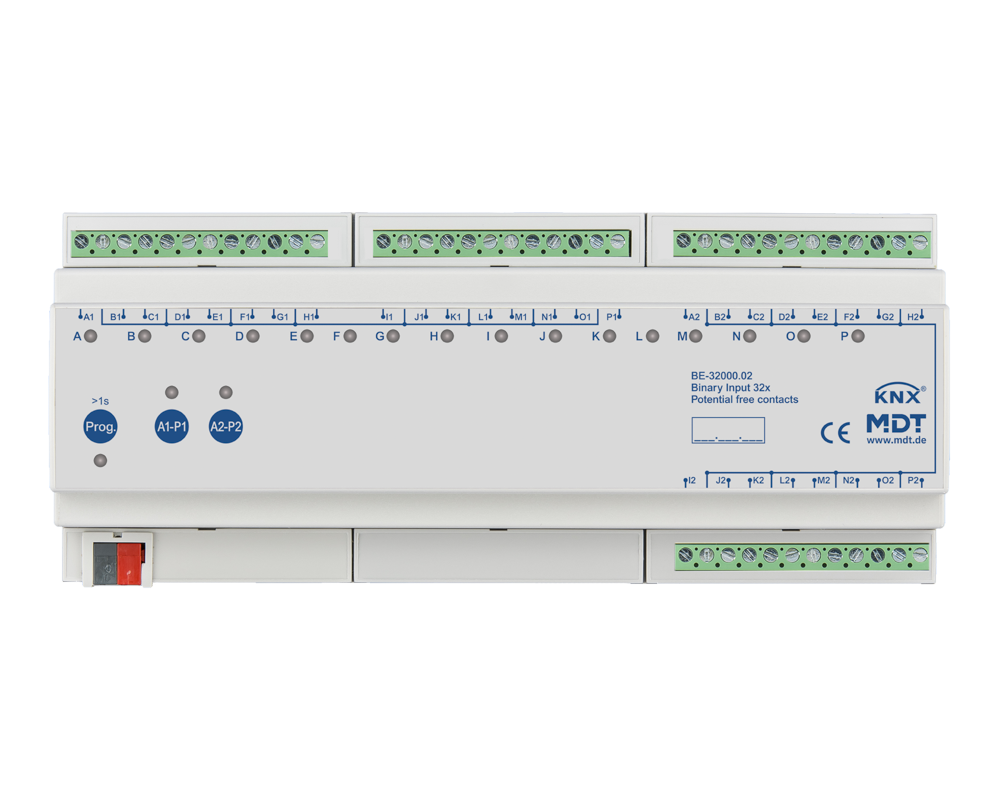

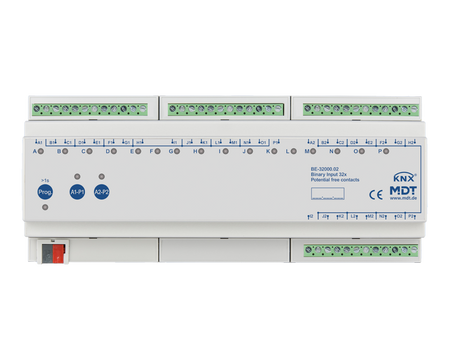

KNX Binary Input 32-channel, 12 SU MDRC, Potential free version

SKU: USA-BE-32000.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$744.58 USD
-21% $946.50 USD $744.58 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Binary Input 32-channel, 12 SU MDRC, Potential free version.
  • Version to connect potential free contacts.
  • LED indicator for each channel, Max. cable length 100 m.
  • To connect Push-buttons, switches, window contacts.
  • Multitouch-function, sends up to 4 values on the same or different objects.
  • Innovative group control with long/extra long button press.
  • 4 integrated logic modules, e.g., to evaluate the inputs (closed window or send a second object).
  • NO- and NC operation, contact status send.
  • Dimmer- and shutter function for singular- and double Push-button operation.
  • Sending of values, forced operation.
  • Scenes and blocking object for each channel.
  • Short/Long button press with 2 objects.
  • Pulse and switch counter with extensive counter functions (suitable for 30 ms S0 pulse, e.g Eltako DSZ ).
  • Cyclic sending, sending after reset.
  • Internally generated 12 V contact voltage.
  • 3 year warranty.
