MDT

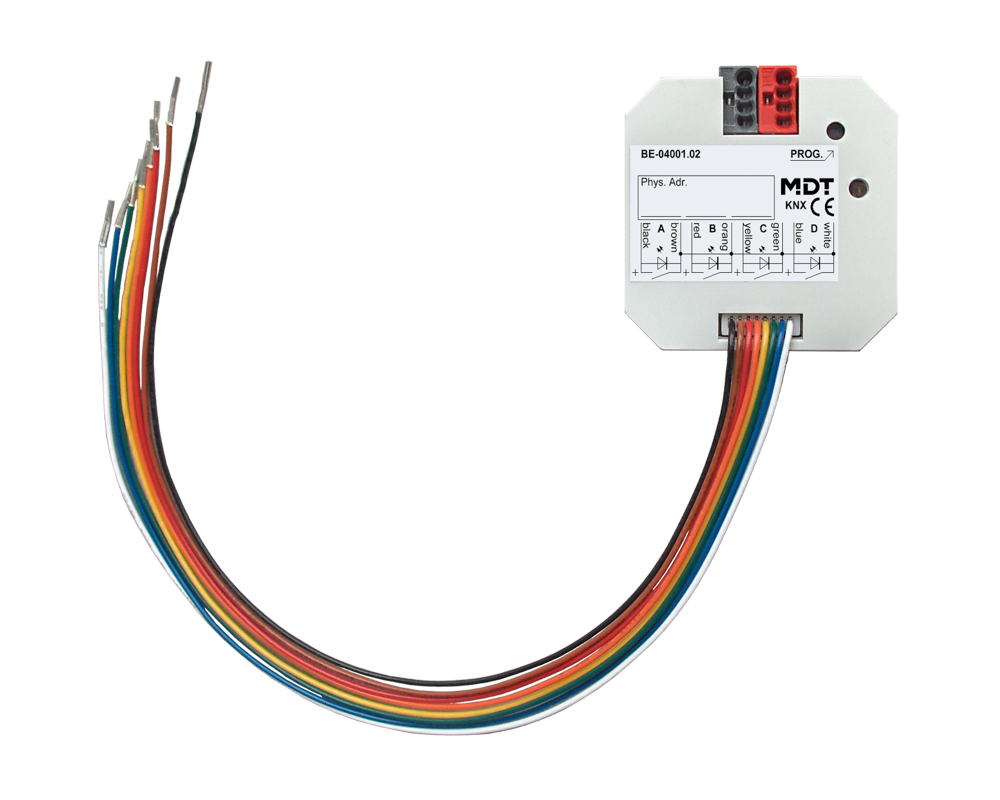

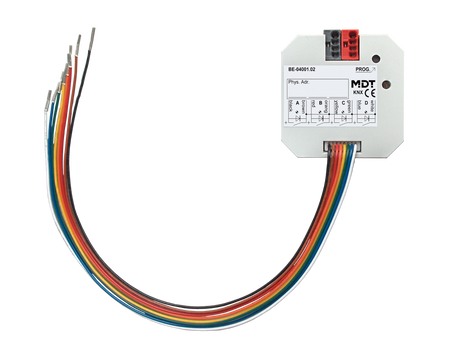

KNX Universal Interface 4-channel, flush mounted, Potential free version

SKU: USA-BE-04001.02
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$95.58 USD
-21% $121.50 USD $95.58 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX Universal Interface 4-channel, flush mounted, Potential free version.
  • Version to connect potential free contacts or LEDs.
  • For installation in an installation box, cable length max. 10 m.
  • To connect Push-buttons, switches, window contacts.
  • Each channel can be set as an output for 1.5 mA low-current LEDs.
  • Multitouch-function, sends up to 4 values on the same or different objects.
  • Innovative group control with long/extra long button press.
  • 4 integrated logic modules, e.g., to evaluate the inputs (closed window or send a second object).
  • NO- and NC operation, duration of button press selectable.
  • Dimmer- and shutter function for singular- and double Push-button operation.
  • Send of values, forced operation and switch commands are selectable.
  • Integrated Bus coupler.
  • 3 year warranty.
  • Short/Long button press with 2 objects.
  • Integrated pulse- and switch counter, selectable cyclic sending.
  • For installation in an installation box (Length of the connection cable 22 cm).
  • Dimensions (H x W x D): 41 x 41 x 12 mm.
