SIEMENS

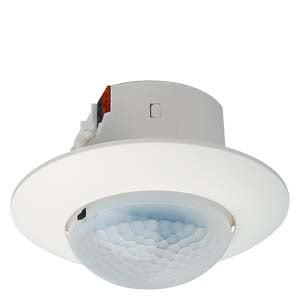

UP 258D12 - Presence Detector with brightness sensor

SKU: 5WG12582DB12
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$180.15 USD
-62% $474.08 USD $180.15 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Presence Detector with brightness sensor

Functions with commissioning with ETS

  • In case of commissioning with ETS different controls can be configured for different applications.
  • Additional the light controllers can be defined by parameters and communication objects.
    Presence / Motion detector
  • The detector senses the presence of a person or that there is no longer anyone in its detection area.
  • The detector signal can be analyzed via two separate communication channels, termed motion detector and presence detector.
  • The detection range is identical for all channels. Each channel can be locked individually via objects.
    HVAC detector
  • The detector has an additional control output for HVAC applications.
  • For example, this function can switch systems that are used for heating, ventilating and climate control (HVAC) of the room from “Energy saving mode” in an unused room to “Comfort mode” in an occupied room and back to “Energy saving mode”, when the room is again unoccupied.
  • Functionality of the Presence detector / Motion detector / HVAC-detector
  • For each detector channel 4 communication objects are available, in sum 12 different communication objects.
  • It is possible to send one or two KNX telegrams at the beginning and at the end of a detected presence, according to configuration.
  • The values of the communication objects are configured for each functional block (motion detector, presence detector, HVAC-detector) via corresponding parameters.
