SIEMENS

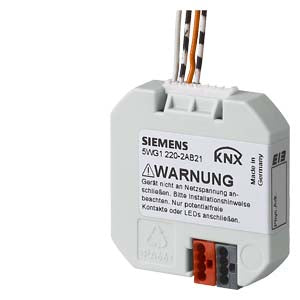

UP 220/21 - Pushbutton interface 2 x potential-free contact, output for LED control

SKU: 5WG12202AB21
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$82.74 USD
-62% $217.74 USD $82.74 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821
  • A single input (A, B) can be configured for one of these functions:
  • Switching (on, off, toggle) on rising, falling, or rising and falling edge
  • Send value (8-bit value, 16-bit value, 16-bit floating point) on rising, falling, or rising and falling edge
  • Switching (on, off, toggle) after short / long push button action
  • Send value (8-bit value, 16-bit value, 16-bit floating point) after short / long push button action
  • Adjustable period for long switch operation can be selected
  • Cyclical sending possible
  • Single button dimming
  • Single button control of solar protection
  • Single button group control
  • 1-bit scene control
  • 8-bit scene / effect control
  • Impulse counting with / without limit value monitoring
  • 8-bit
  • 16-bit
  •  32-bit
  • Contact status, send binary value (door bell function)
  • Sending possible on bus voltage recovery
  • Send condition can be set
  • Selectable contact type (N.C. / N.O.)
  • The two channels (A and B) can be configured as a pair of inputs for one of these functions:
  • Dual-button dimming with stop telegram
  • Dual-button dimming with cyclical sending
  • Dual-button control of solar protection
