NETIO

PowerPDU 8QS US, 2 channels metering

SKU: PowerPDU 8QS US
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$743.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

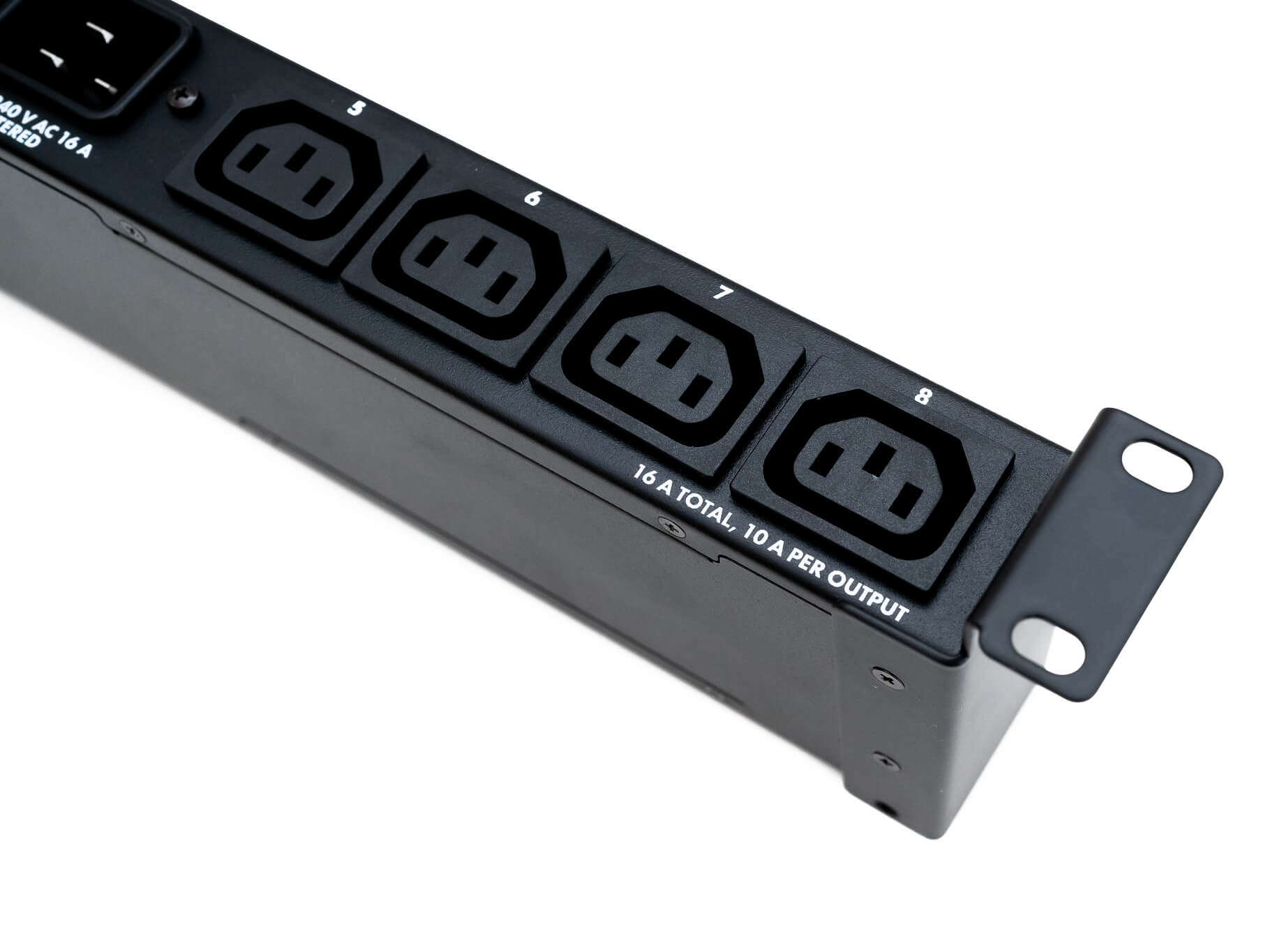

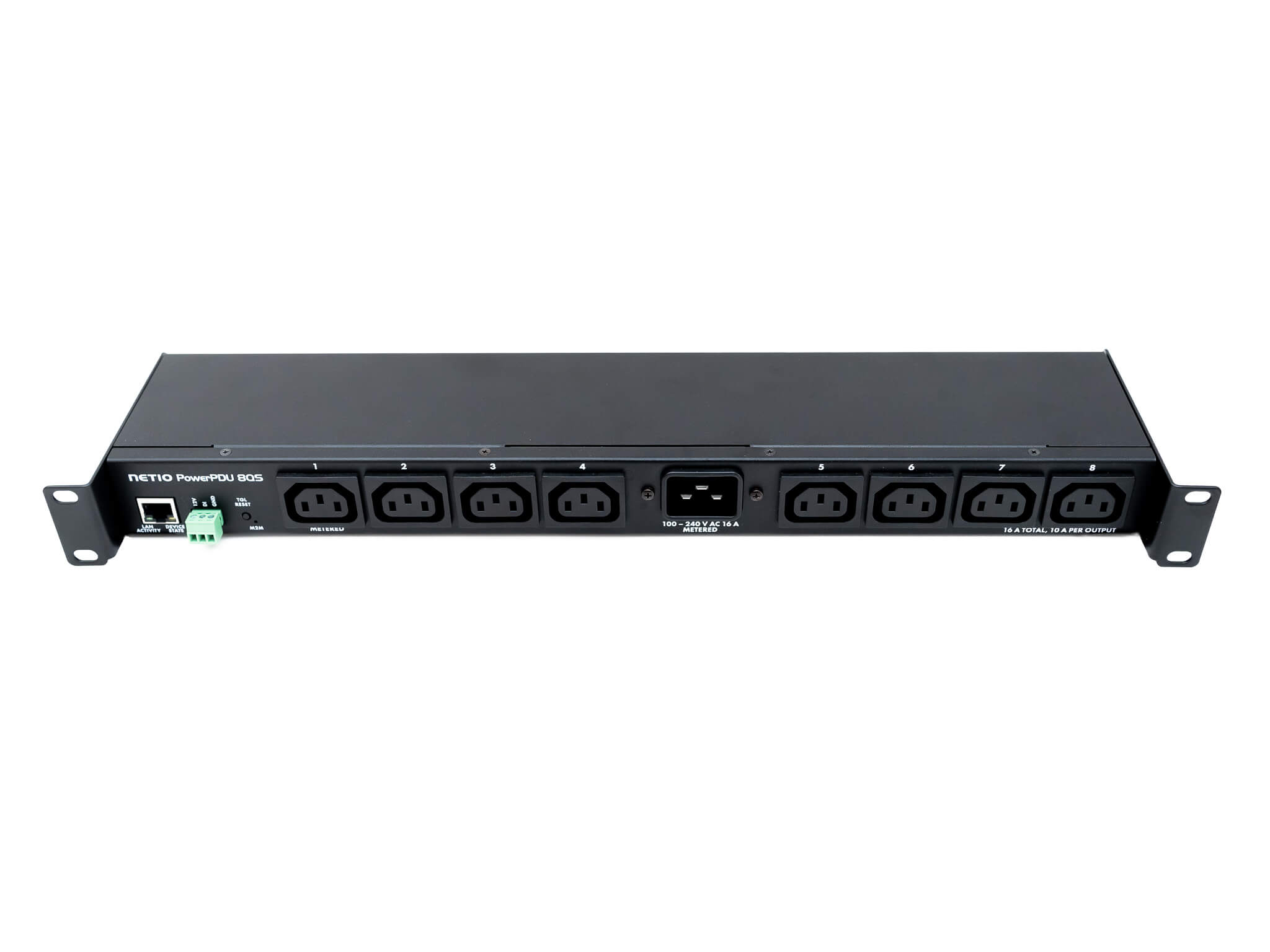

NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN.

It fits into a 19” cabinet (1U).

Each output can be switched on/off individually.

PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (All Outputs + 1).

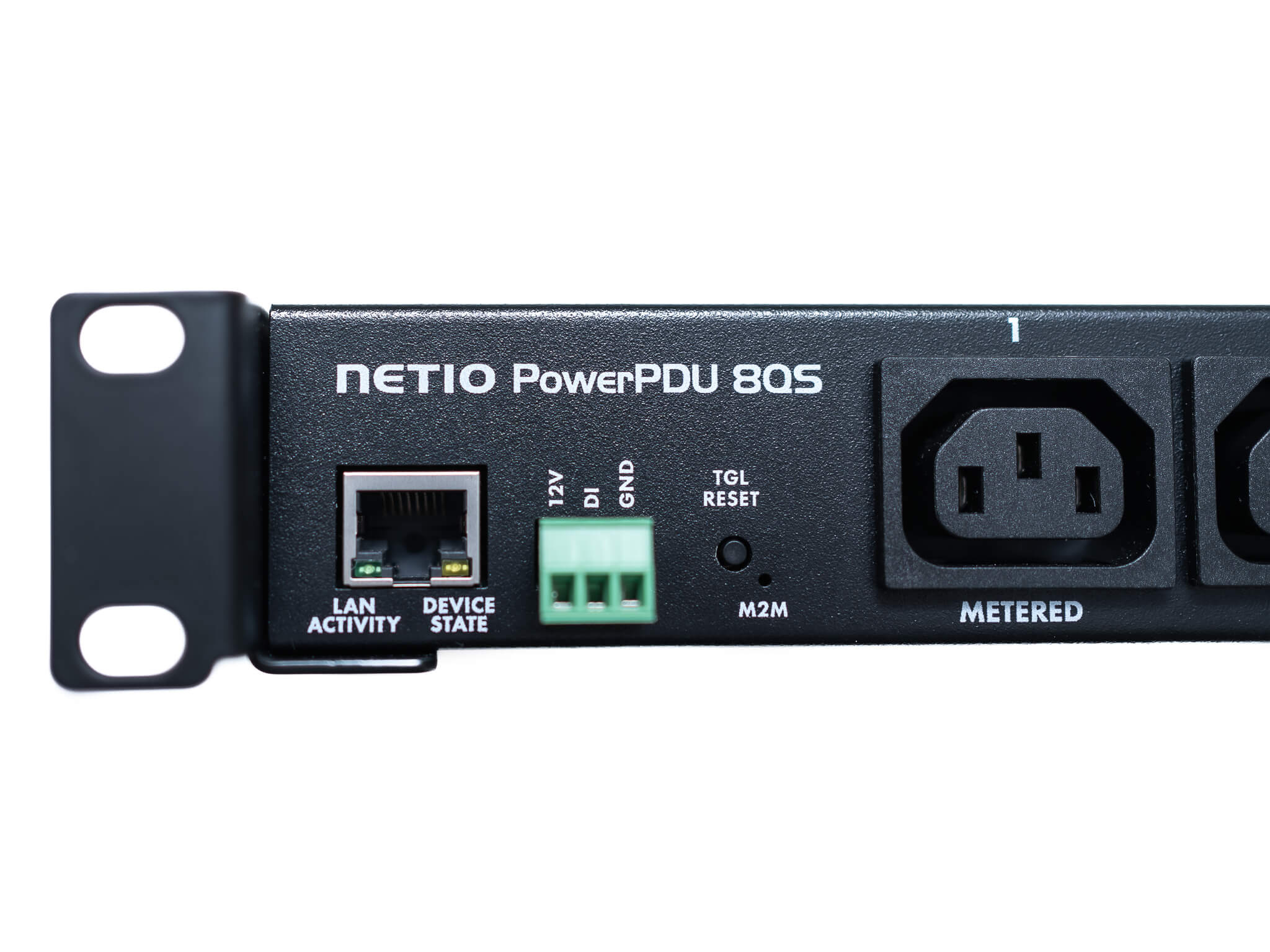

A digital input (DI) can be used to control the outputs or count S0 pulses (electricity meter output).

NETIO PowerPDU 8QS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile2 app controls each output individually over LAN (local network).

To switch the outputs on in a sequence, a power-up delay can be configured for each output.

Open API: Supported M2M protocols

One Open API protocol can be used at a time, chosen from among the supported M2M protocols:

  • SNMP v1                               AN11, AN41
  • SNMP v3
  • MQTT-flex                             AN40
  • Telnet                                     AN10
  • Modbus/TCP                         AN27, AN22, AN37
  • JSON over HTTP                 AN21, AN30, AN42
  • XML over HTTP                    AN20, AN31
  • URL API (http get)                AN19, AN29
  • HTTP(s) Push JSON
  • HTTP(s) Push XML

Regardless of the Open API used, the PowerPDU 8QS can be always controlled from its web interface and from the NETIO Cloud service.

The customer can take advantage of the NETIO Cloud service and one Open API protocol simultaneously.

Typical applications

  1. In IT, the smart PowerPDU 8QS is typically used to distribute electricity in a 19" rack (cabinet) in a data center.
  2. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
  3. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
  4. The outputs of several NETIO products can be controlled using the NETIO Mobile 2 app, as long as the app is connected to the same network.
  5. The outputs of multiple devices can be controlled centrally using the NETIO Cloud service (for a fee).
