NETIO

PowerPDU 8QB US, 2 channels metering

SKU: PowerPDU 8QB US
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$799.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

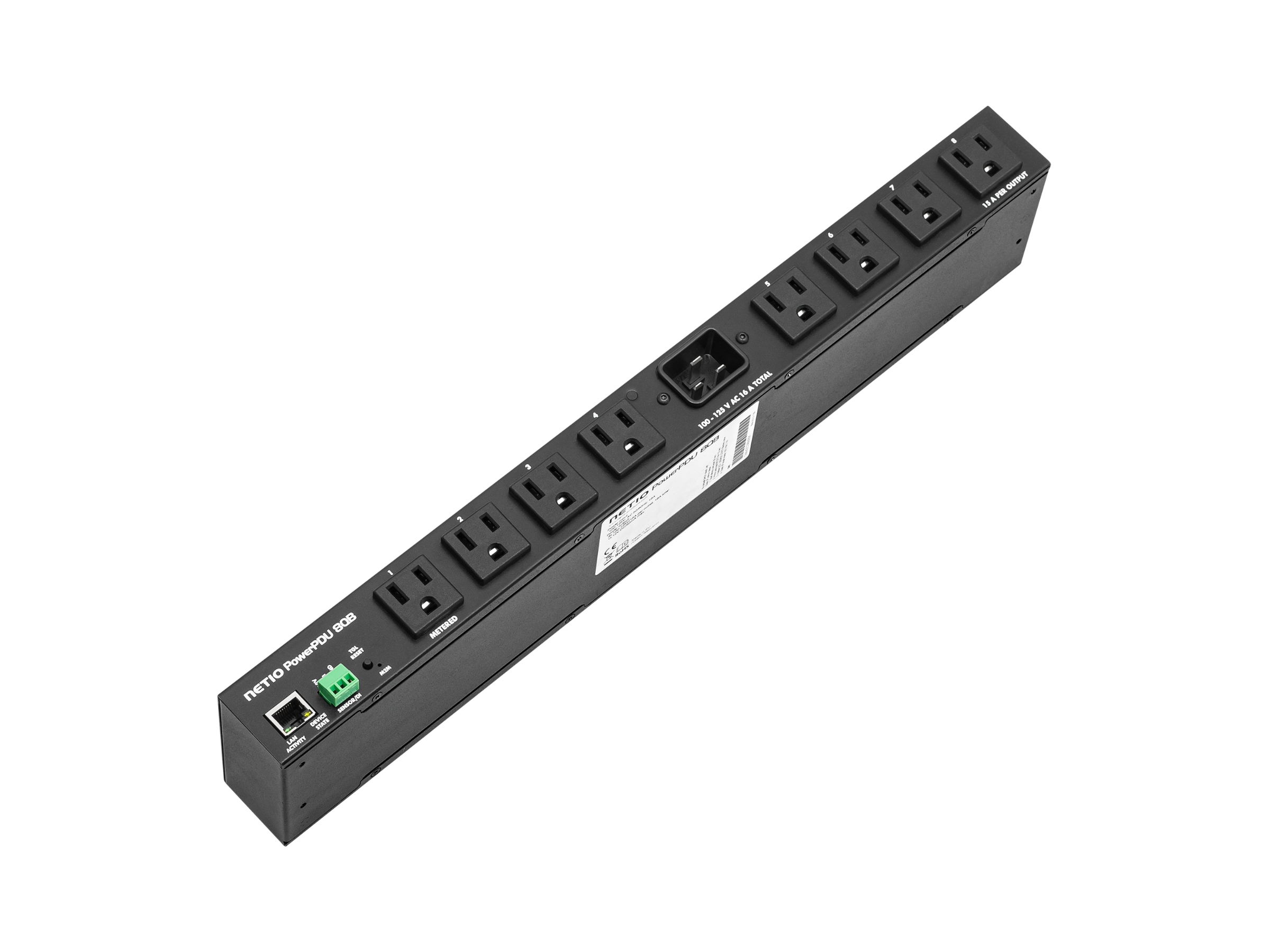

NETIO PowerPDU 8QB is a PDU (Power Distribution Unit) with eight power outputs (8x NEMA 5-15R) controlled and metered over a LAN.

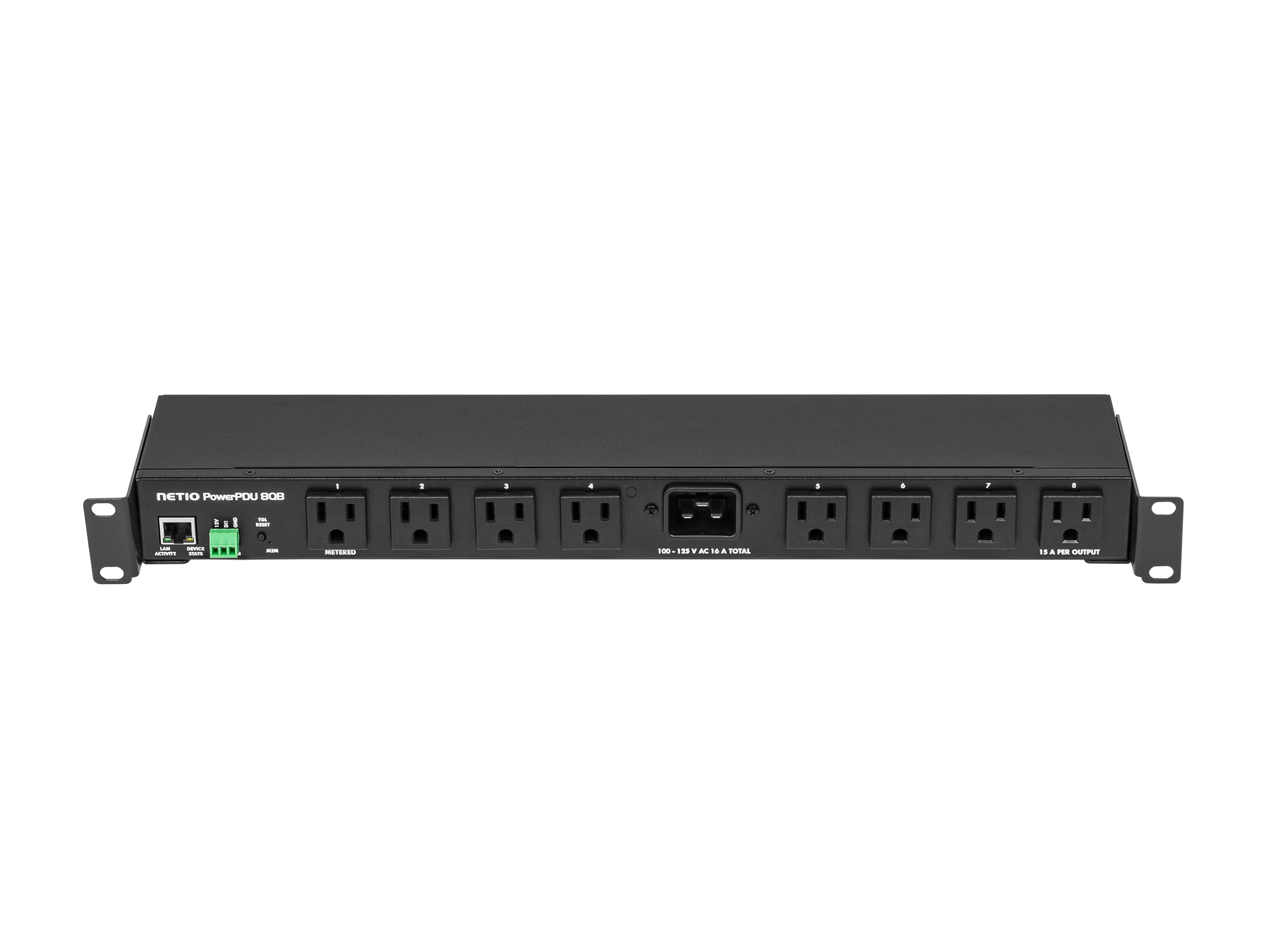

It fits into a 19” cabinet (1U). Each output can be switched on/off individually. PowerPDU 8QB supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (All Outputs + 1).

A digital input (DI) can be used to control the outputs or count S0 pulses (electricity meter output).

NETIO PowerPDU 8QB can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output can be turned off and on individually. Output 1 and the whole PDU are metered.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Atlona, Qsys, Kramer, RTI, SAVANT, SKAARHOJ, Utelogy and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile 2 app controls each output individually over LAN (local network).

The PowerUp sequence or power-up delay can be configured for each output.

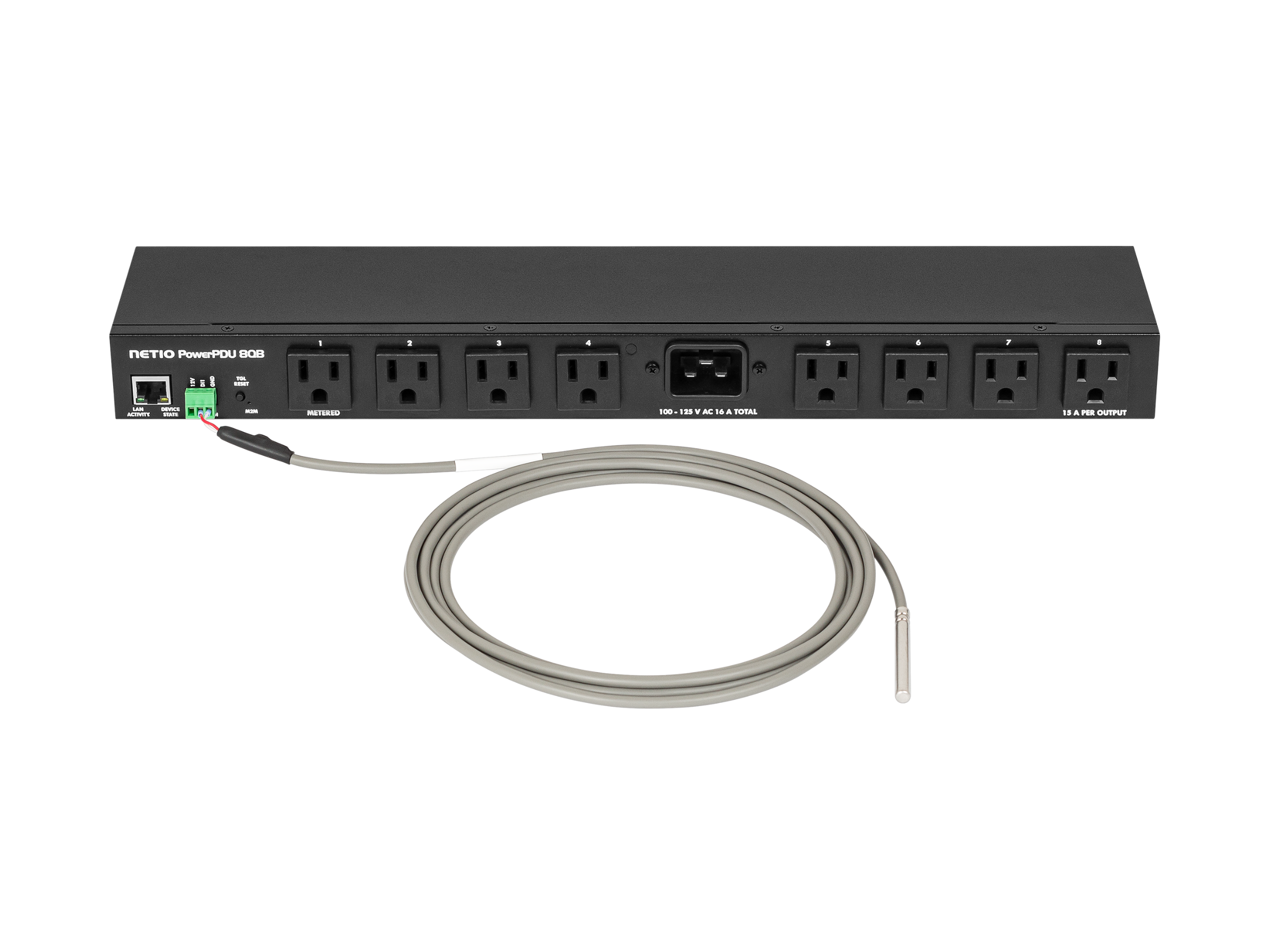

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.

By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

Typical applications

  1. Several PowerPDU 8QB units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet). Vertical or horizontal montage is available.
  2. With using external T1 temperature sensor can be used thermostat feature to ativate additional cooling in case of too high temperature.
  3. High temperature email alerting via NETIO Cloud can be realized in case of high temperature with external T1 temperature sensor.
  4. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
  5. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
