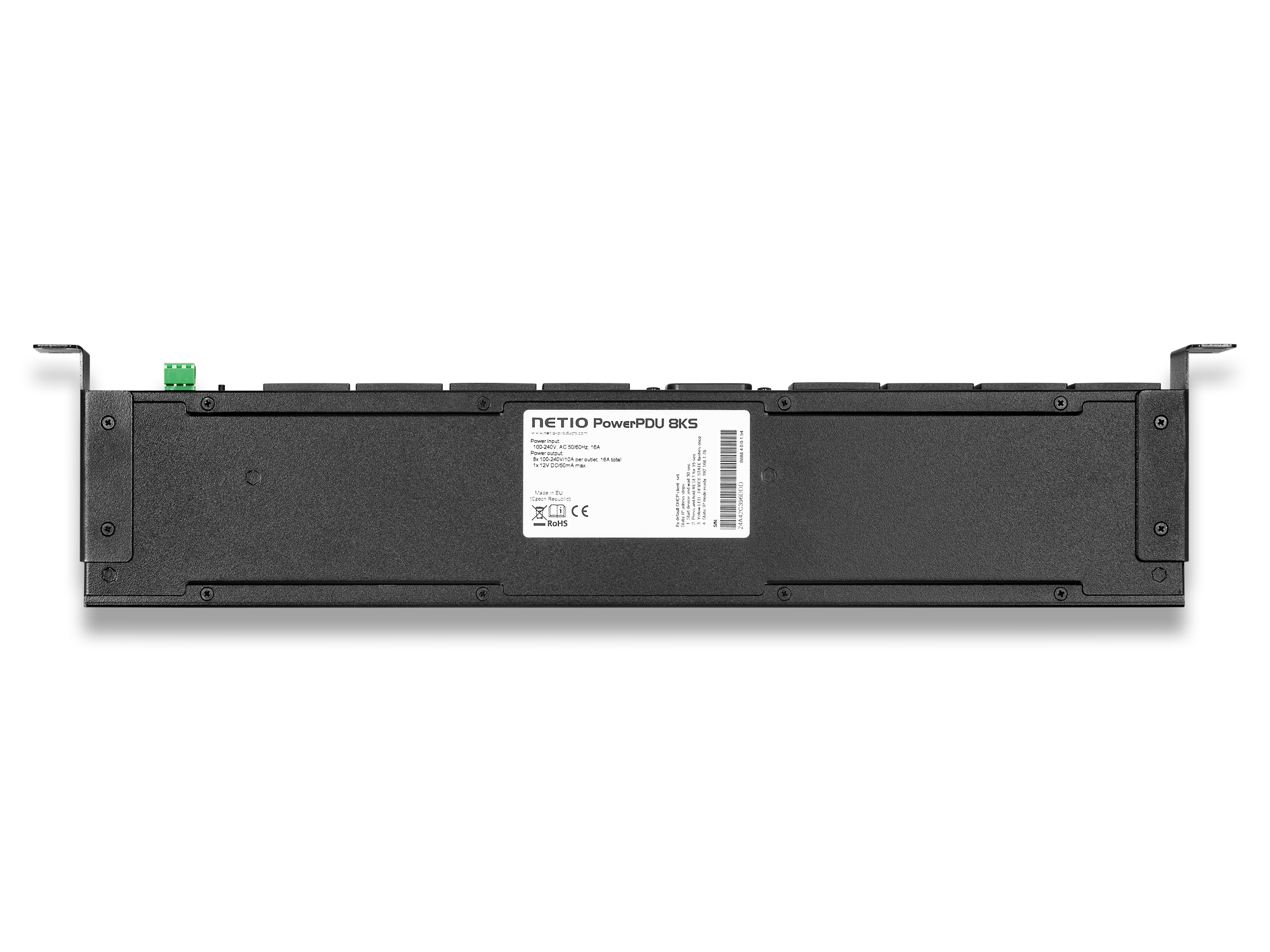

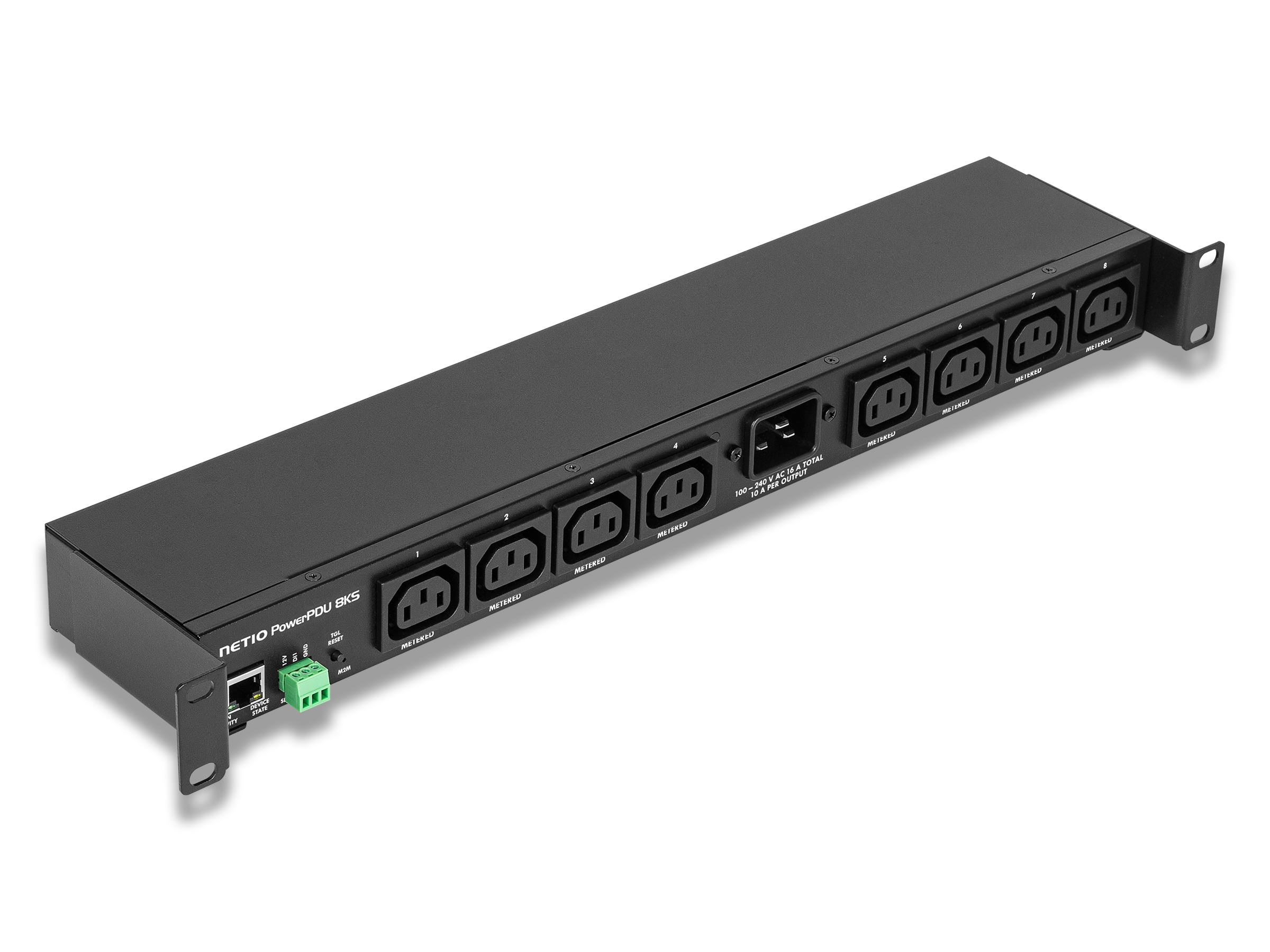

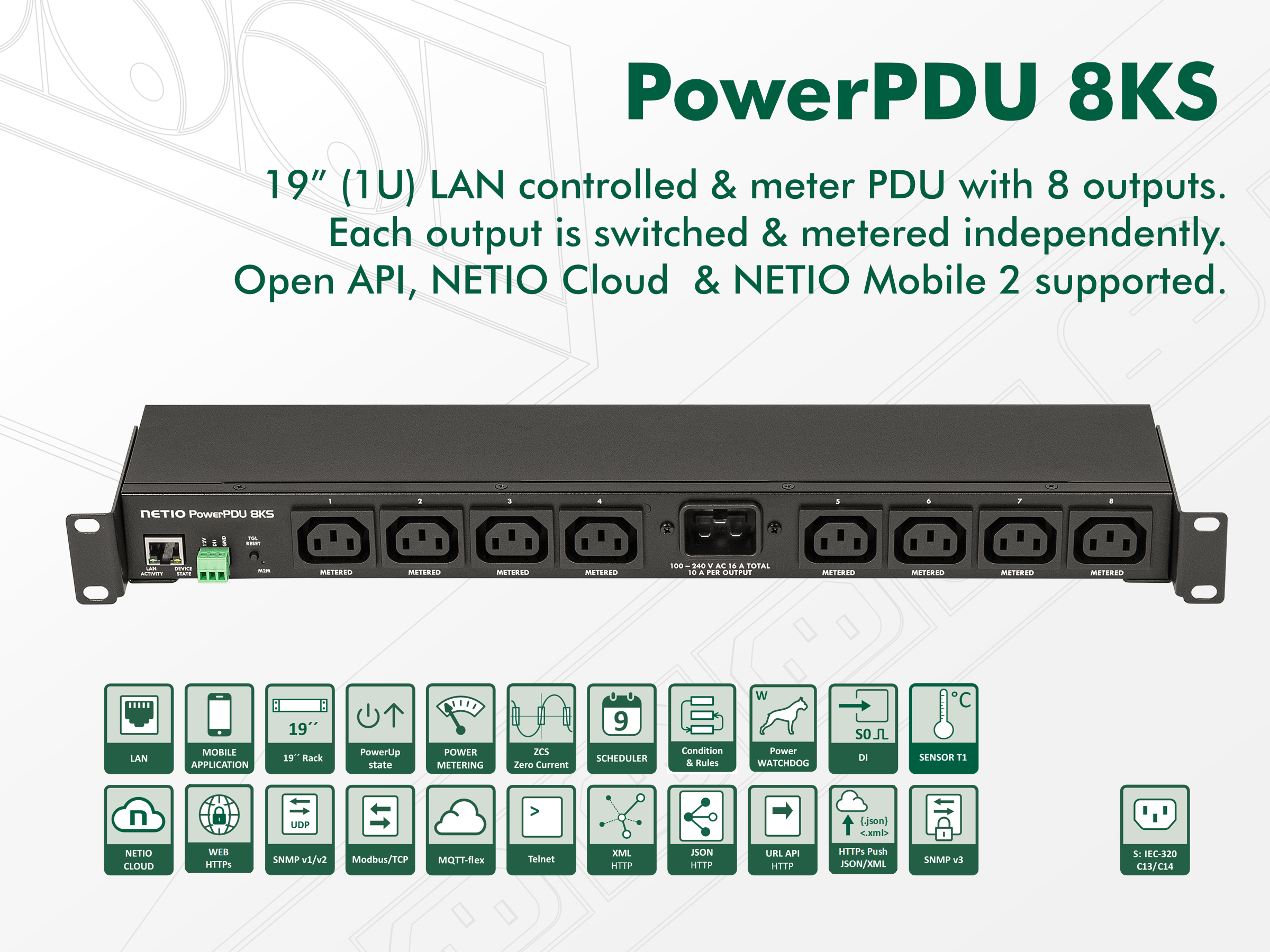

NETIO PowerPDU 8KS is a PDU (Power Distribution Unit) with 8 measured outputs (8x IEC-320 C13) connected to a LAN network.
Each output can be switched on/off and measured individually via LAN or from the NETIO Cloud online service.
It fits into a 19” cabinet (1U).
The green DI (Digital Input) terminal block can be used to connect an mechanical switch (dry contact) or an external temperature sensor.

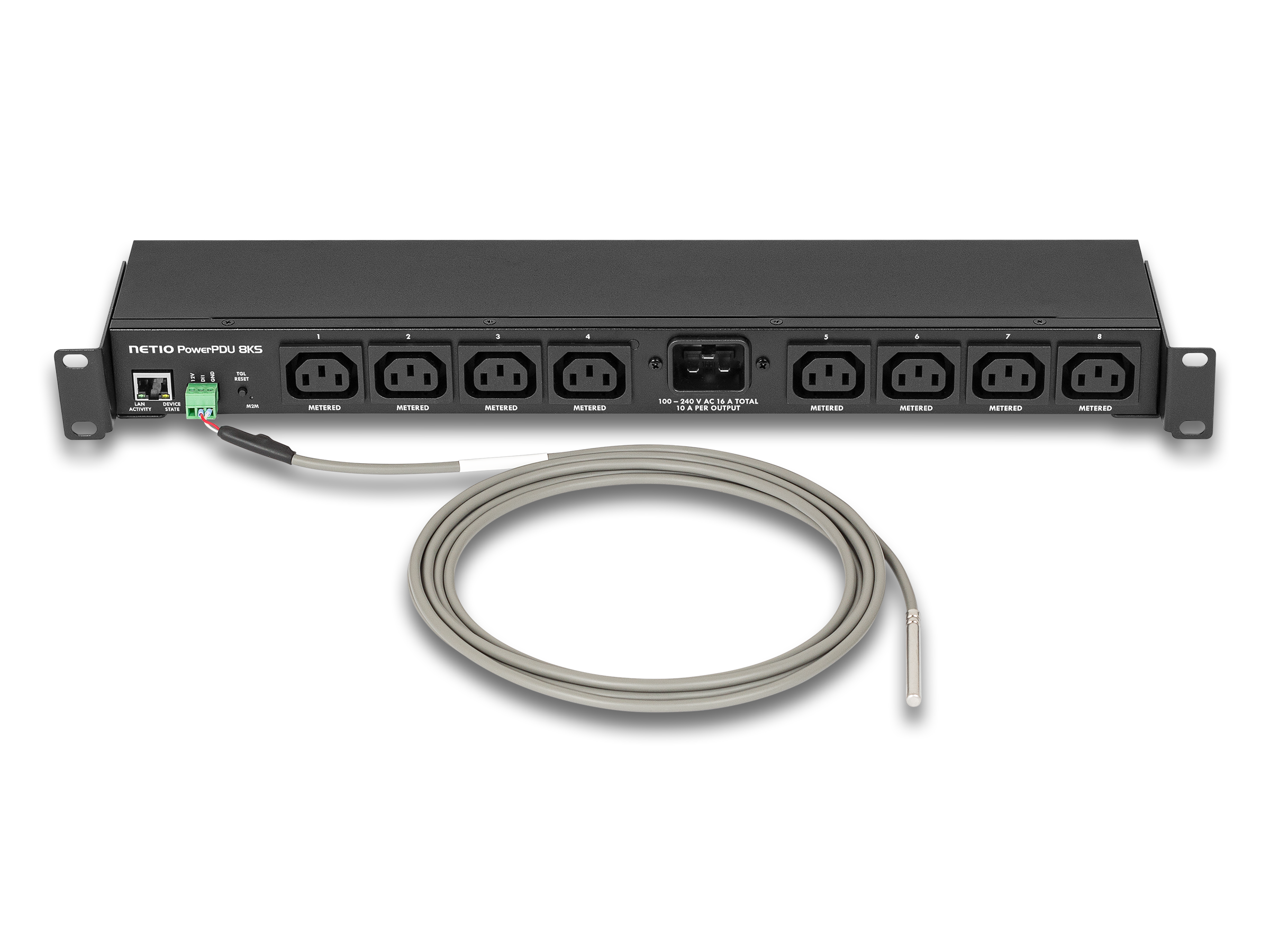

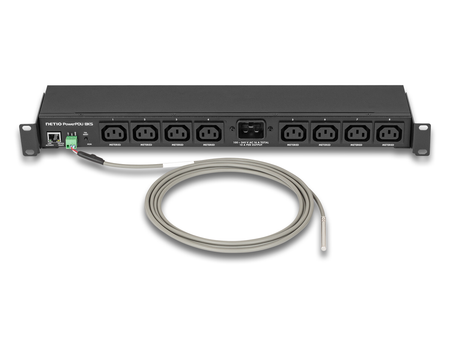

With the NETIO T1 temperature sensor, the defined output can be switched based on temperature ( thermostat function).
NETIO PowerPDU 8KS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
Each output is separately metered and can be turned off and on individually.
Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Domotz, Elgato Stream Deck, Kramer, RTI, SAVANT, SKAARHOJ and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.
With the NETIO Cloud service, the outputs can be controlled from anywhere.
The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
The NETIO Mobile2 app controls each output individually over LAN (local network).
The PowerUp sequence or power-up delay can be configured for each output.
Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.
By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.
Typical applications
- The PowerPDU 8KS can be used for power balancing due to energy metering on each output.
- Several PowerPDU 8KS units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet).Vertical or horizontal montage is available.
- With using external T1 temperature sensor can be used thermostat feature to ativate additional cooling in case of too high temperature.
- High temperature email alerting via NETIO Cloud can be realized in case of high temperature with external T1 temperature sensor.
- Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
- Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
AV drivers for integration
NETIO products can be used together with plenty 3rd party software / hardware or cloud services.
- BrightSign media player (BrightAuthor]
- Crestron (SIMPL blocks)
- Control4
- Domotz
- ELAN
- Elgato Stream Deck
- Flic buttons
- HW group (Perseus platform)
- Kramer (K-Config)
- PIXILAB Blocks
- LOXONE
- RTI
- SAVANT
- SKAARHOJ
