NETIO

PowerPDU 4PS US, non metering

SKU: PowerPDU 4PS US
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$456.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

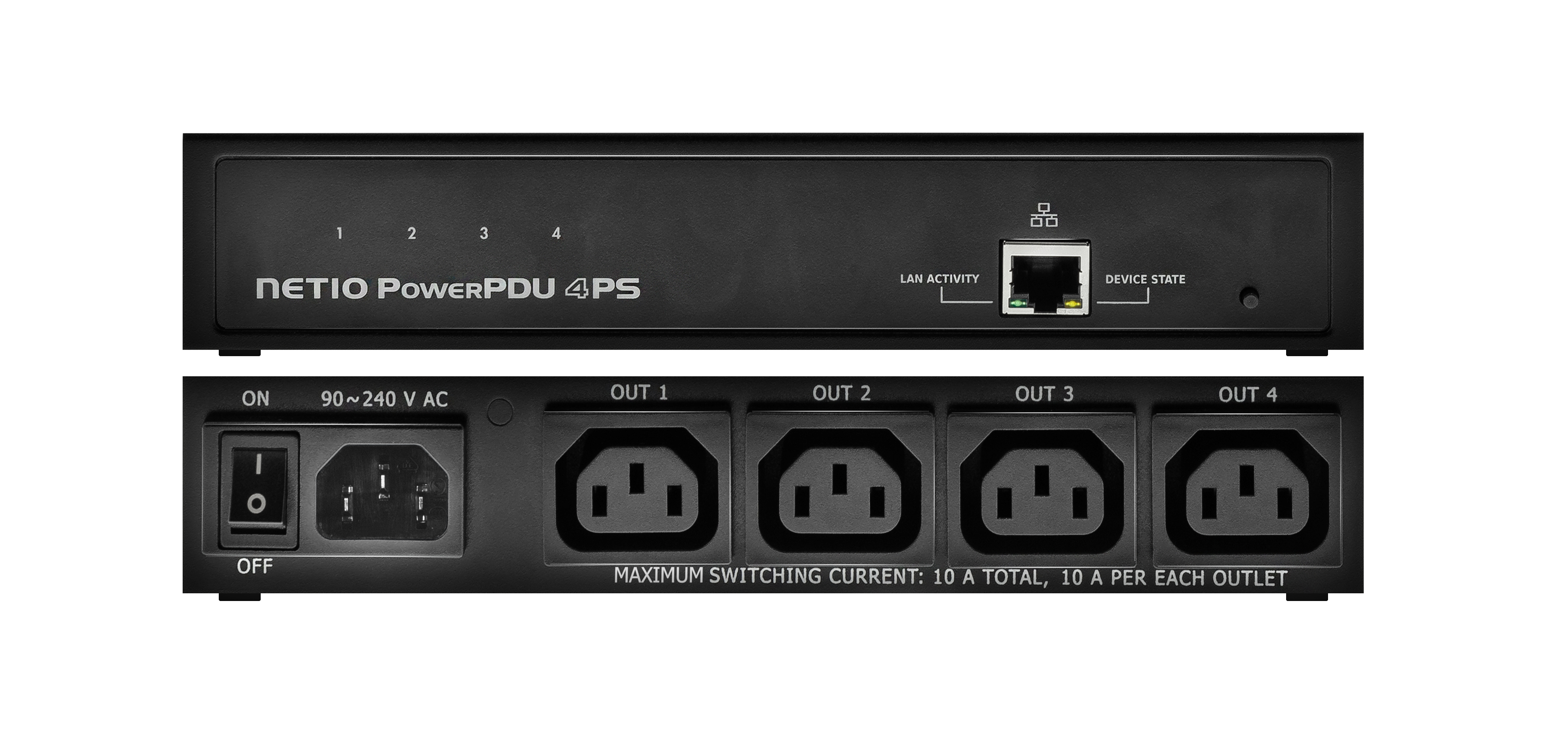

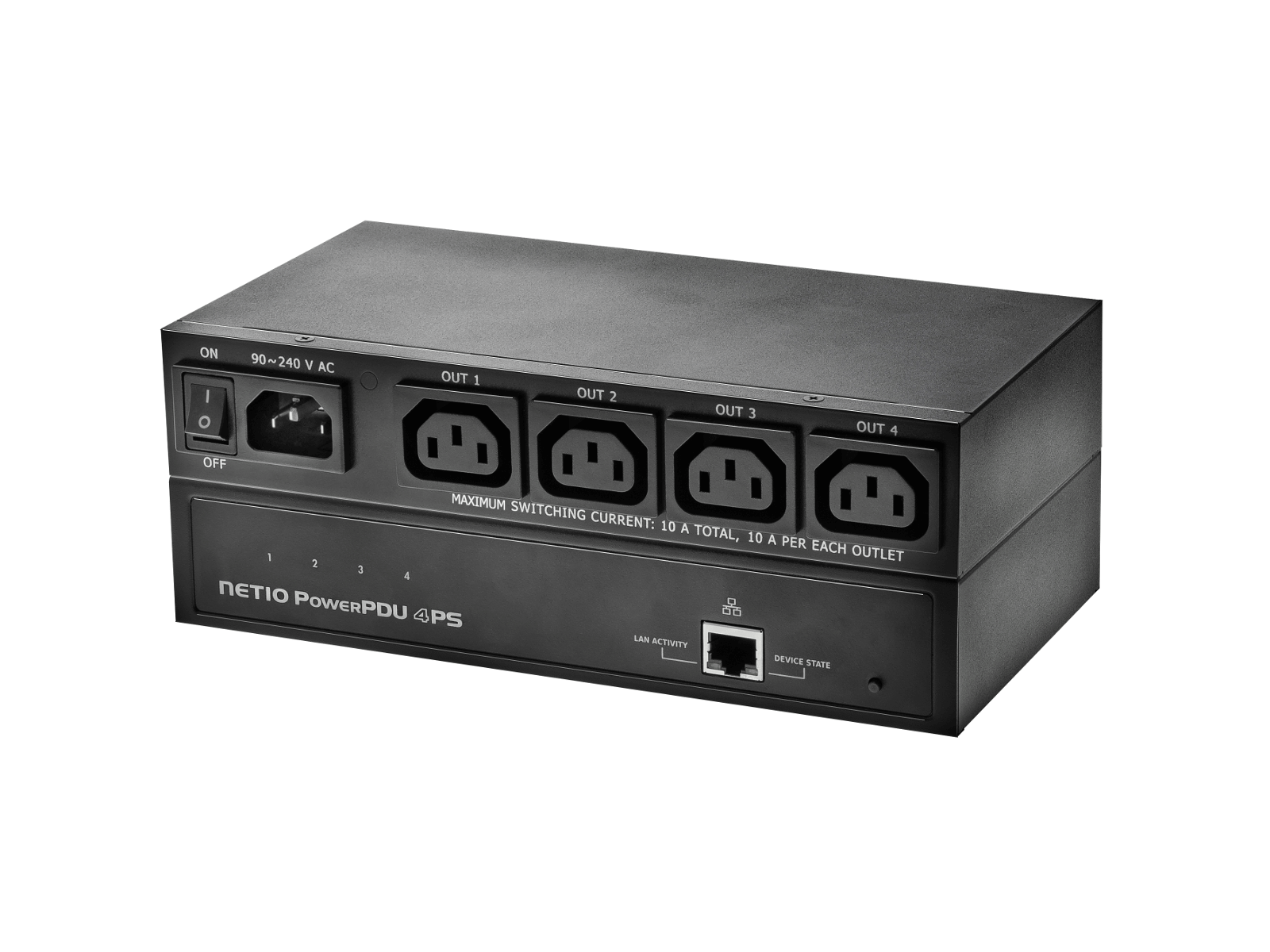

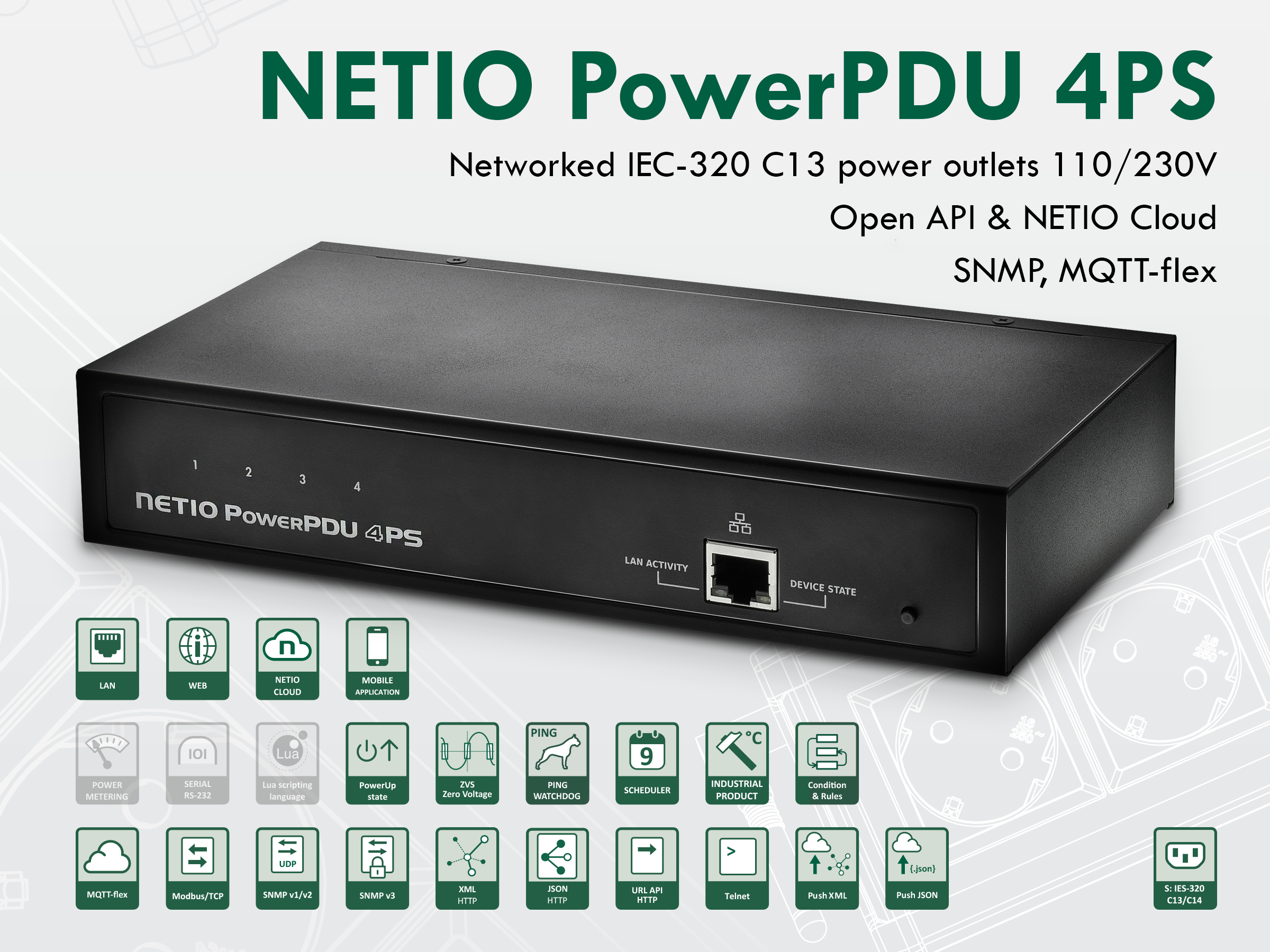

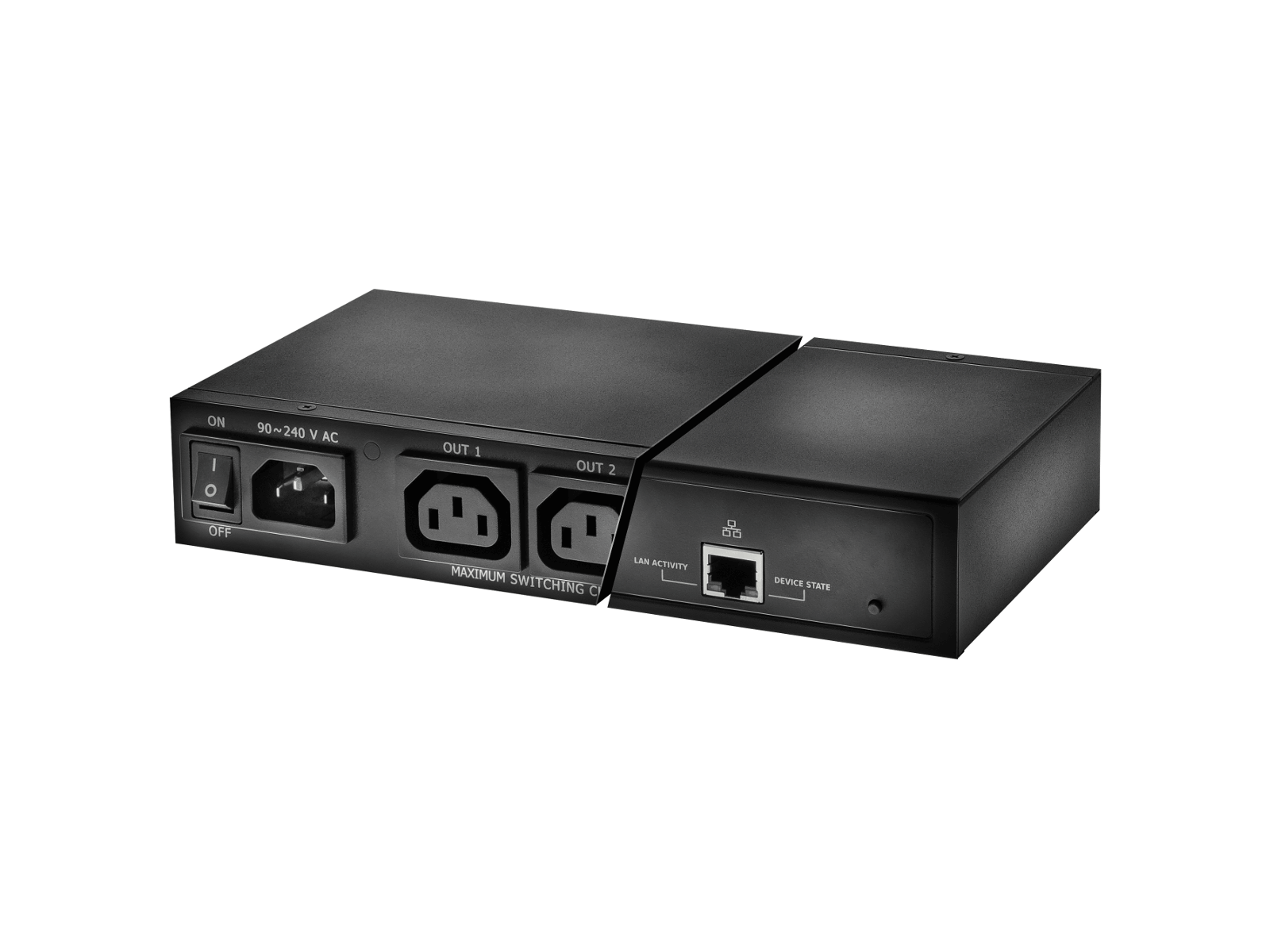

NETIO PowerPDU 4PS is a smart PDU (Power Distribution Unit) with four power outlets (4x IEC-320 C13).

Each output can be switched on/off individually.

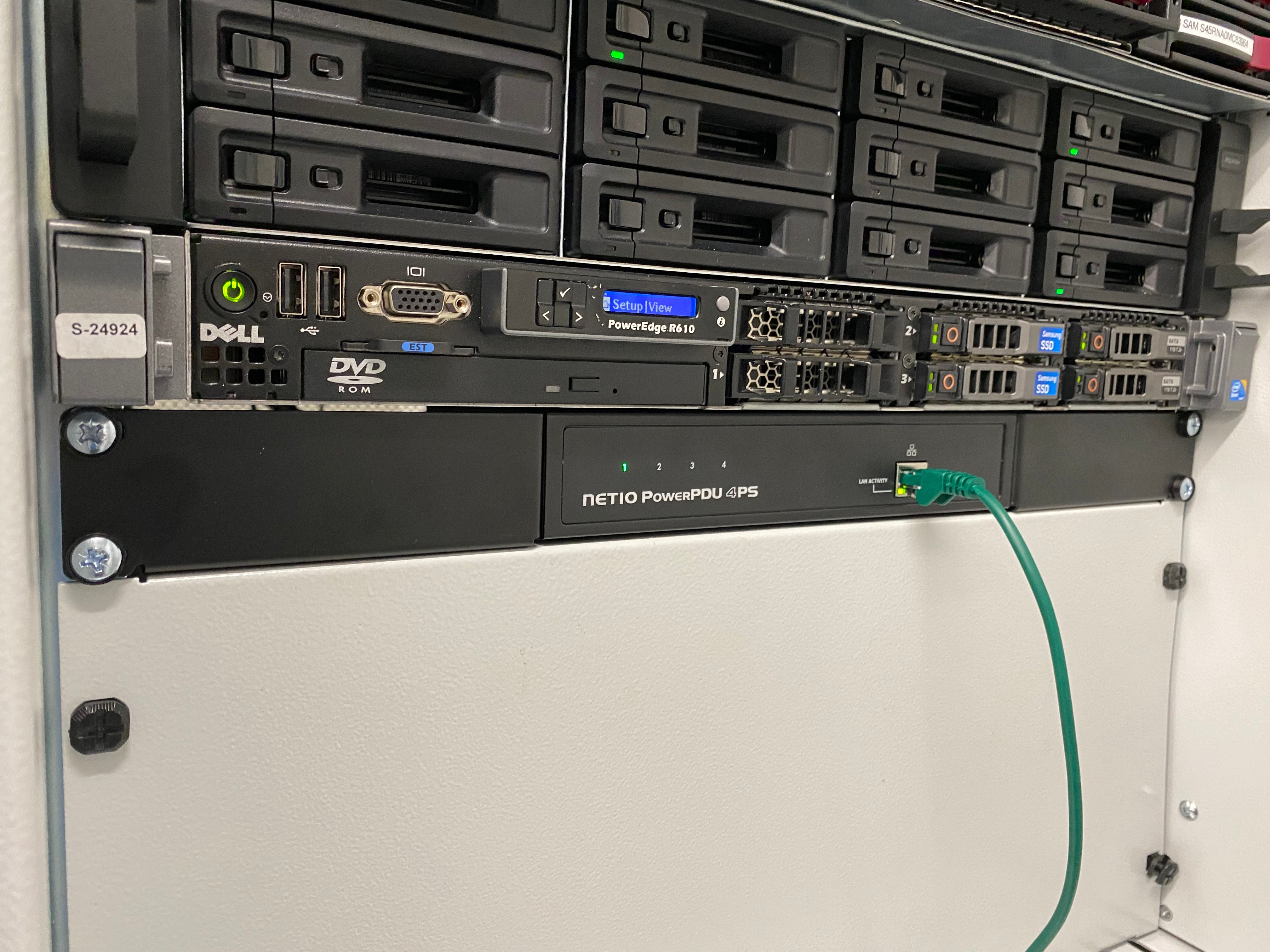

NETIO PowerPDU 4PS can be mounted in rack cabinets – horizontally, vertically, or as a 1U device.

Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the open API.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

NETIO PowerPDU 4PS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

NETIO PowerPDU 4PS does not support electrical measurements.

Each output can be individually switched on/off or power-cycled.

To switch the outputs on in a sequence, a power-up delay can be configured for each output.

The NETIO Mobile 2 app controls each output individually over LAN (local network) or the NETIO Cloud service.

NETIO Cloud is a TLS-secured service for controlling the outputs from anywhere (Web or Open API).

Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, CRESTRON, Control4 and more.

Professional product

NETIO PowerPDU 4PS is suitable for industrial applications.

The product works in a wide temperature range (–20°C to +65°C), supports firmware upgrades over the web, remembers the last socket states before being powered off, and its relays switch at zero voltage.

A power-on delay can be configured for each output.

In this way, the outputs can be switched on in a sequence after a power outage.

Open API: Supported M2M protocols

The open API can use one protocol at a time, chosen from among the supported M2M protocols:

The SNMP protocol can be always used in parallel to outher APIs.

Regardless of the Open API used, the PowerPDU 4PS can be always controlled from its web interface and from the NETIO Cloud service.

The customer may use one Open API protocol and the NETIO Cloud service simultaneously.
