NETIO

PowerPDU 4PB US, non metering

SKU: PowerPDU 4PB US
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$516.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

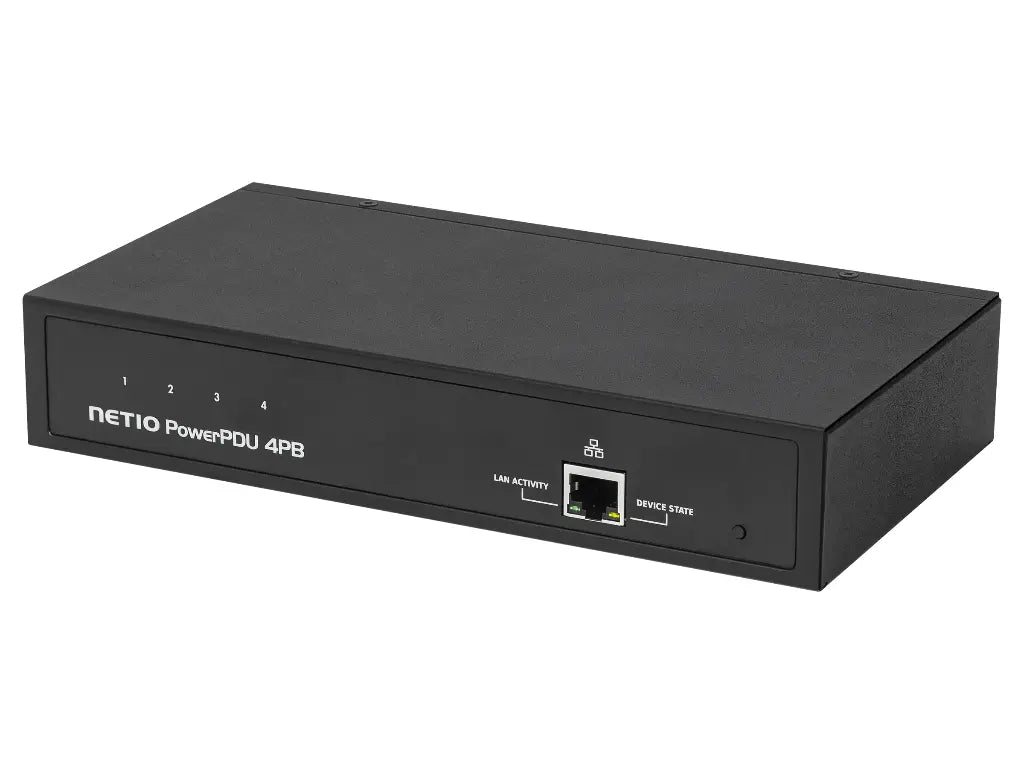

NETIO PowerPDU 4PB is a smart PDU (Power Distribution Unit) with four power outlets (4x NEMA 5-15R).

Each output can be switched on/off individually.

NETIO PowerPDU 4PB can be mounted in rack cabinets – horizontally, vertically, or as a 1U device.

Device supports local Ping WatchDog and Scheduler functions.

User can switch each output manually over the web, the NETIO Cloud service, or with a Mobile App NETIO Mobile 2 (Locally or via NETIO Cloud).

PDU supports Open API for 3rd party integration (http JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...).

 AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Utelogy, Crestron, Control4, Atlona etc.

NETIO PowerPDU 4PB can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output can be turned off and on individually.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Atlona, Utelogy, Qsys, RTI, SAVANT, SKAARHOJ and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile 2 app controls each output individually over LAN (local network).

The Power-Up sequence or power-up delay can be configured for each output.

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.

By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

Typical applications

  1. Several PowerPDU 4PB units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet) with our rack holders.
  2. Vertical or horizontal montage is available.
  3. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
  4. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
