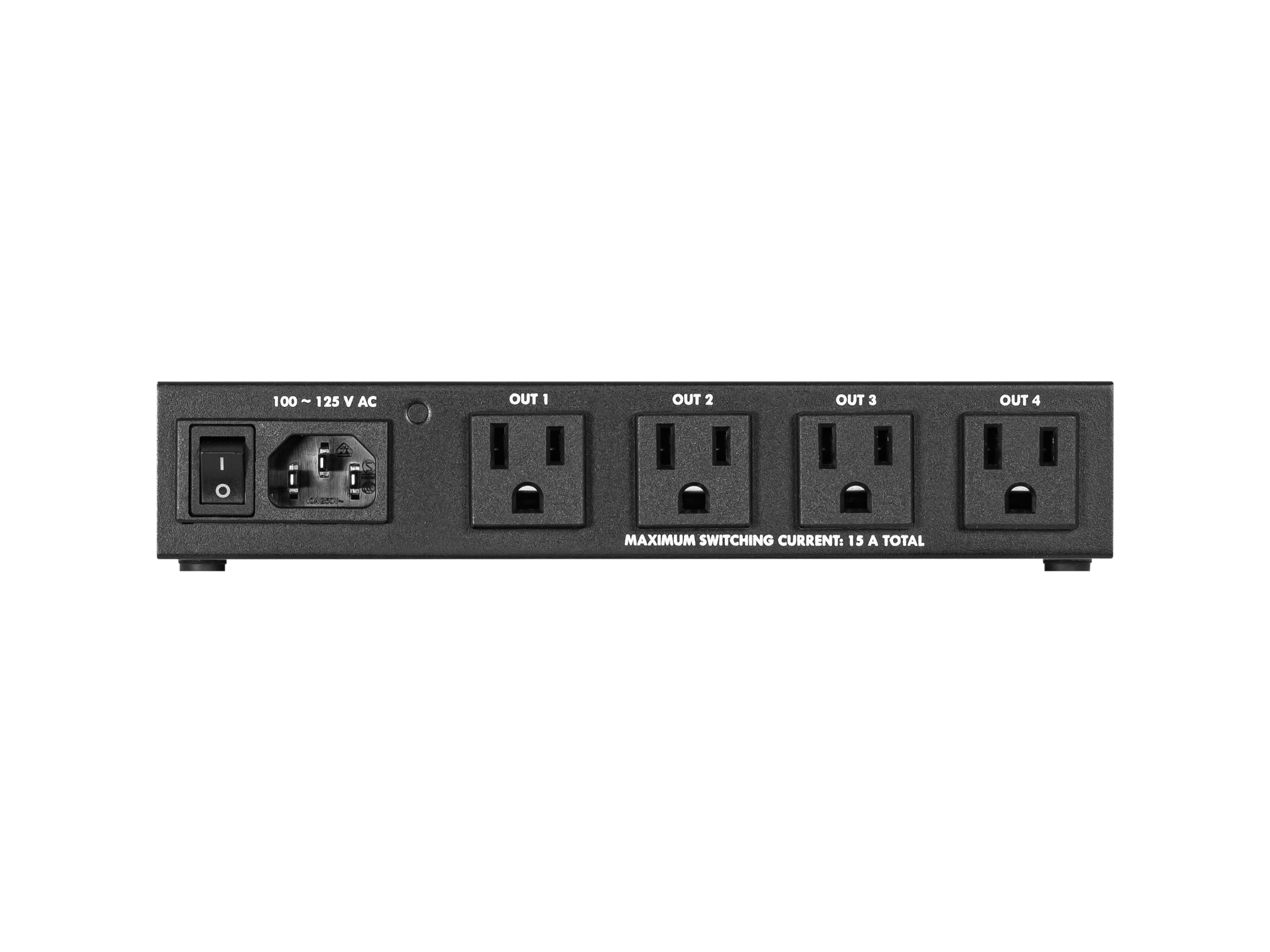

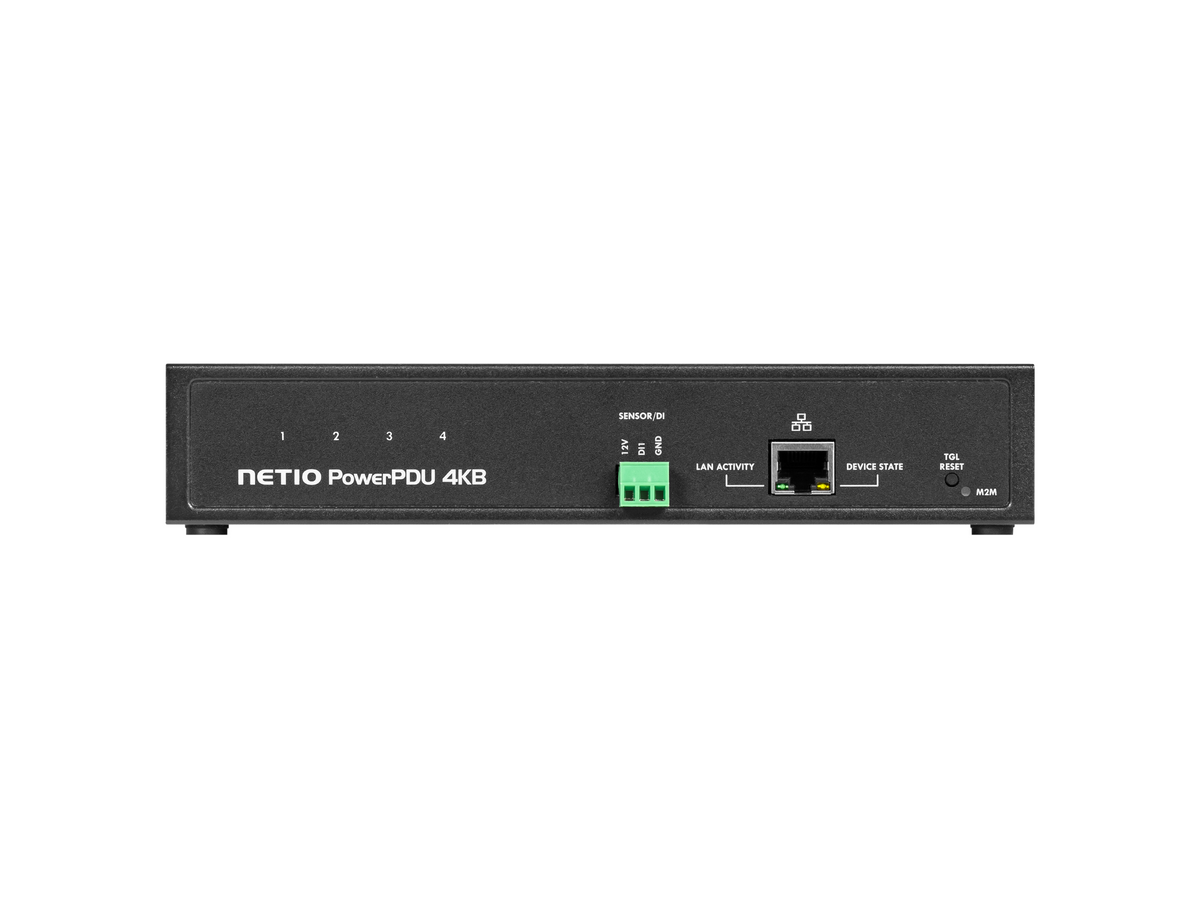

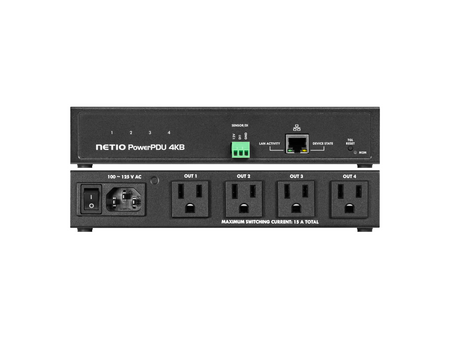

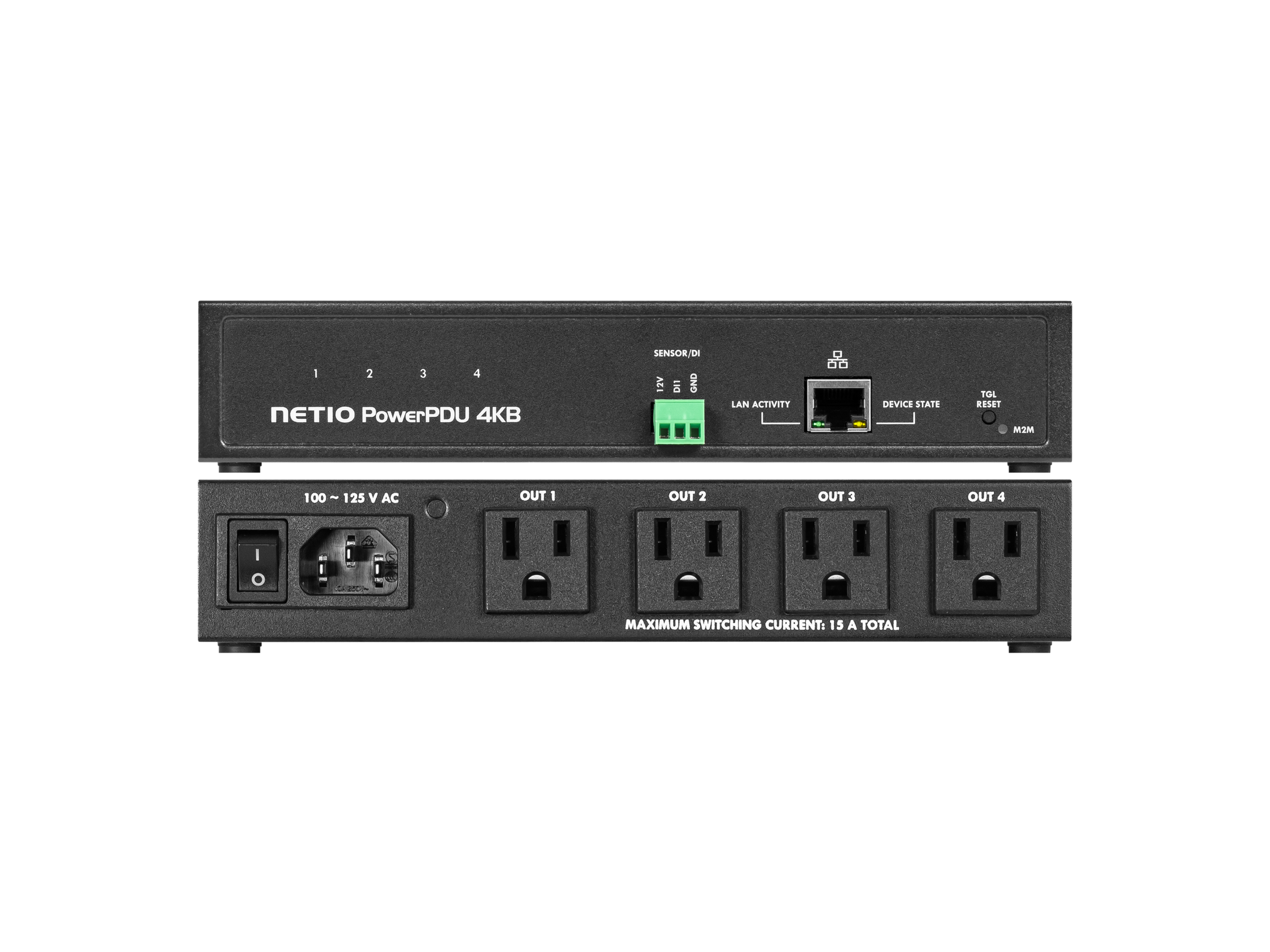

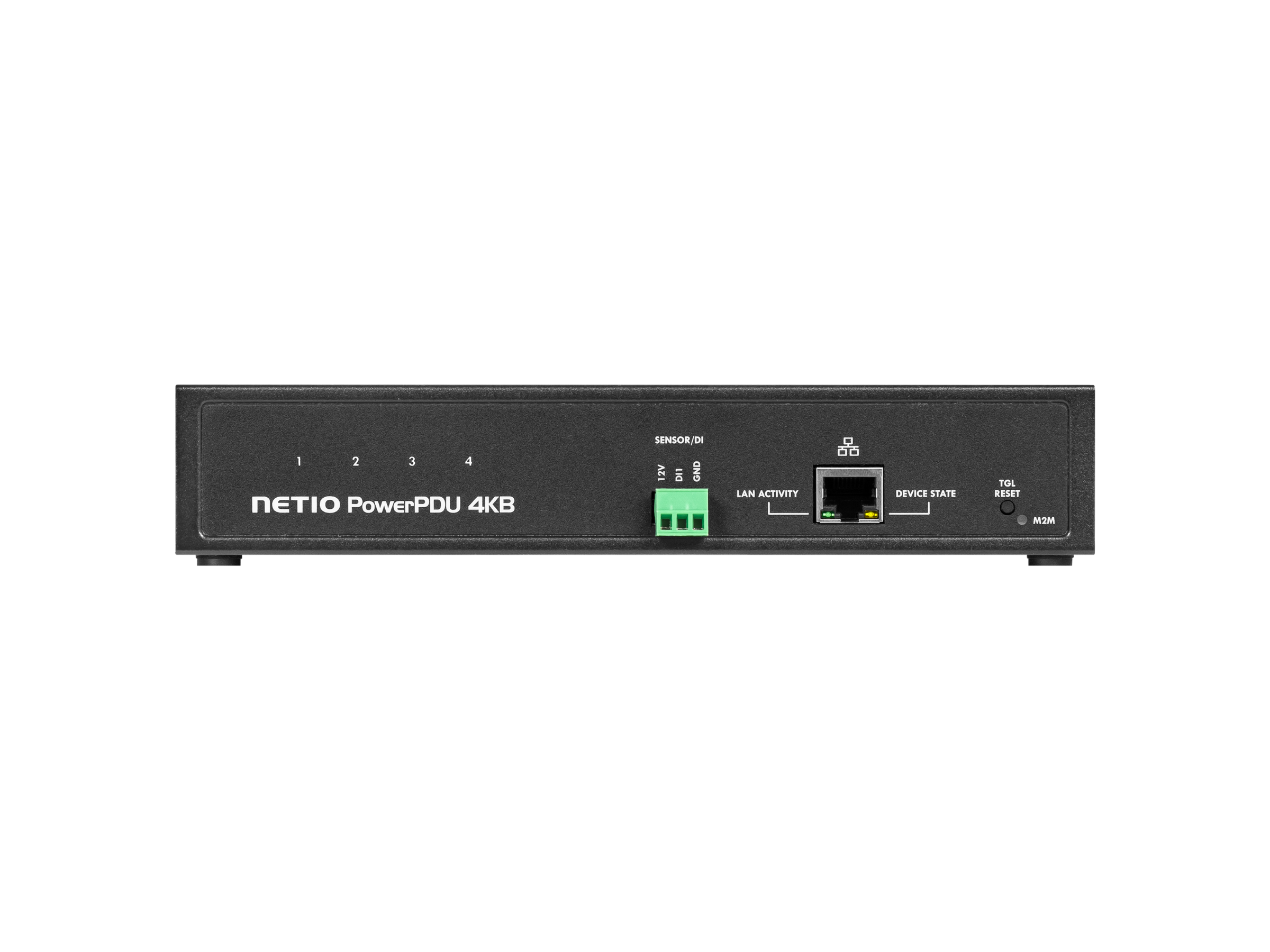

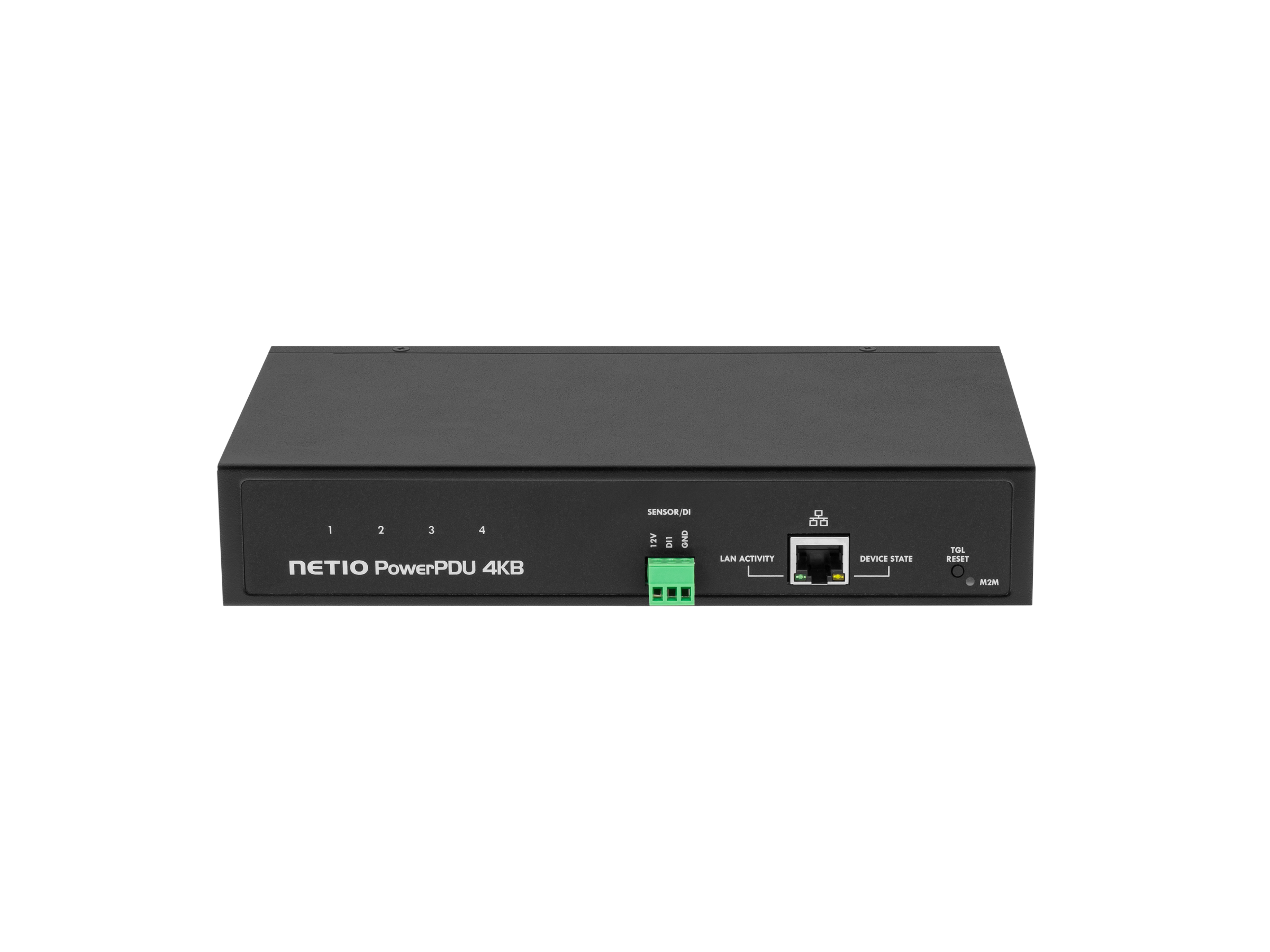

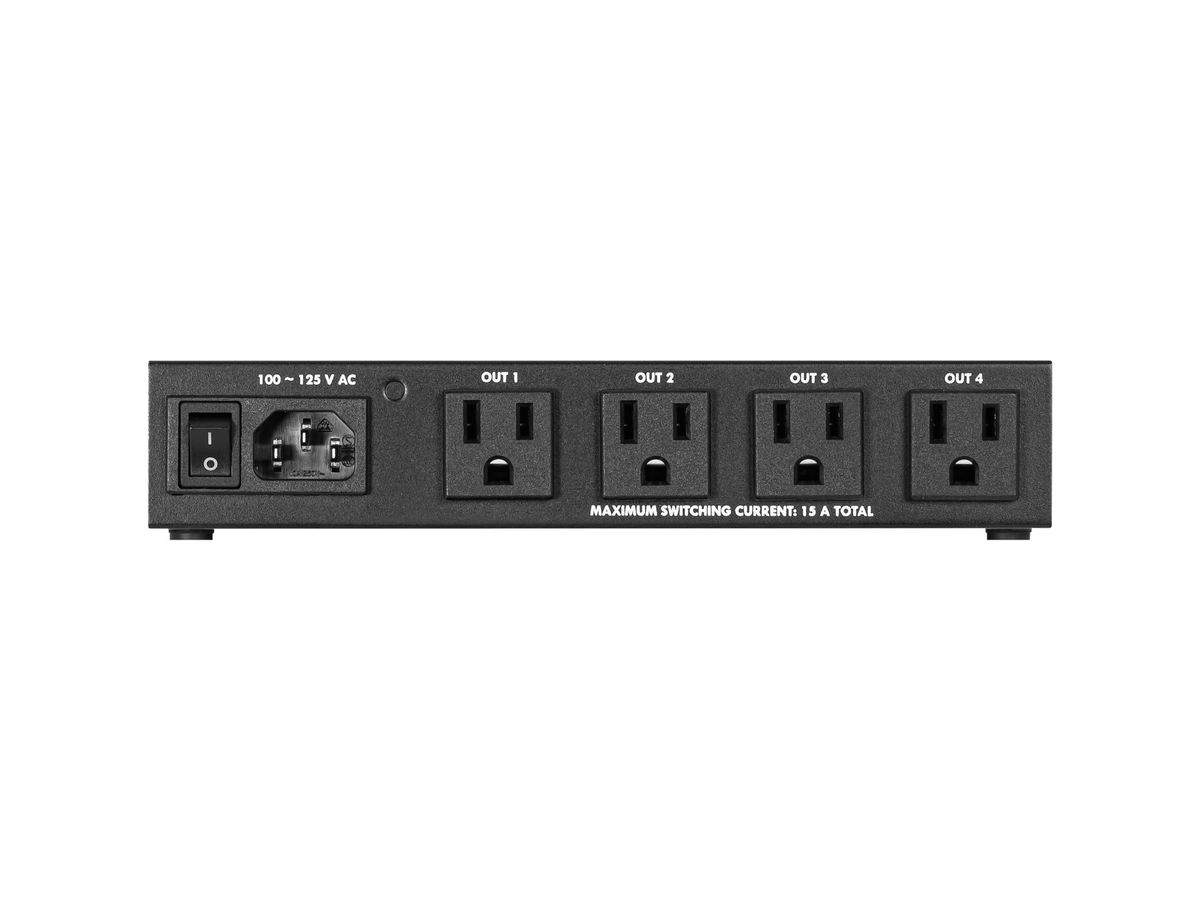

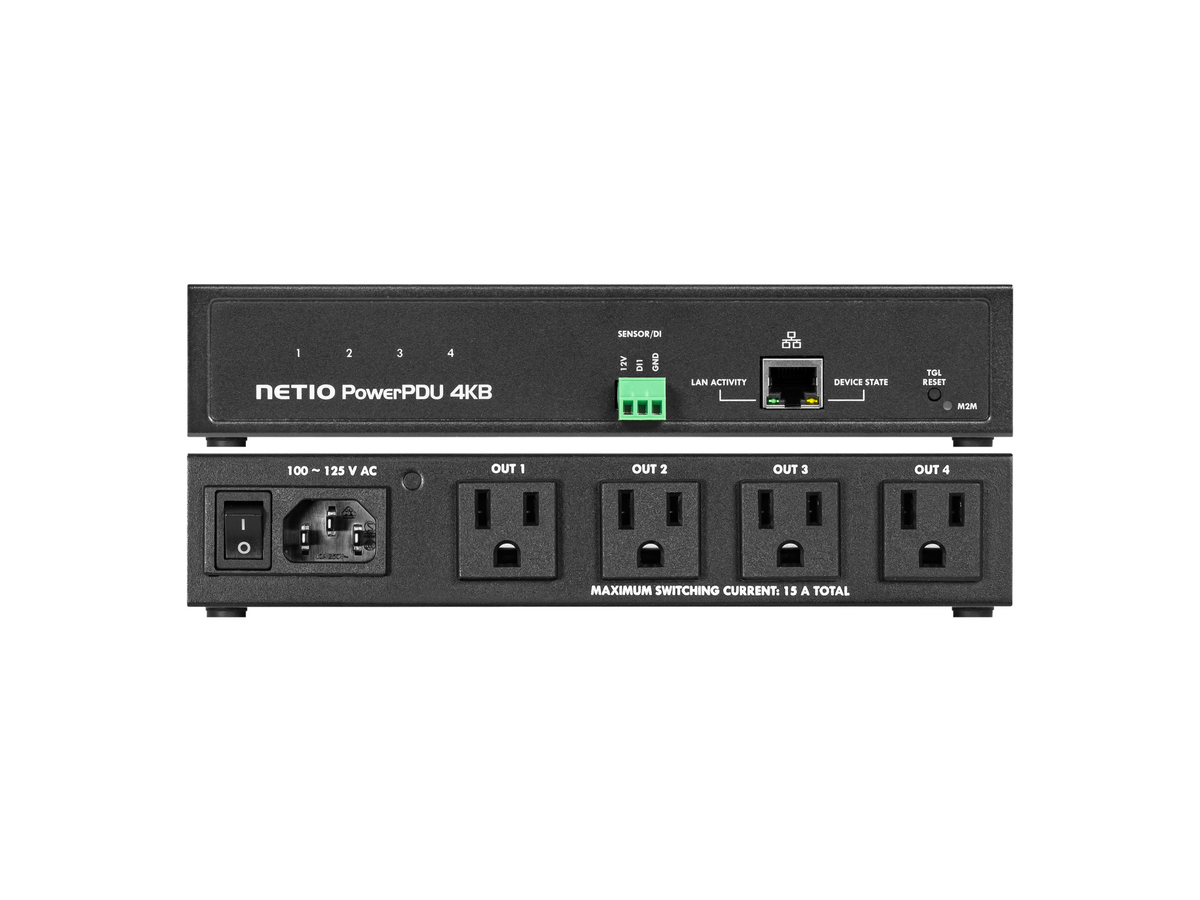

NETIO PowerPDU 4KB is a smart PDU (Power Distribution Unit) with 4 metered & switched power outputs (4x NEMA 5-15R) and 1x DI (Digital Input).

PDU measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off each power output individually.

Device supports local Ping & Power WatchDog and Scheduler functions.

PowerPDU 4KB can be mounted in rack cabinets – horizontally, vertically, or as a 1U device.

Each output can user switch manually over the web, the NETIO Cloud service, or with a Mobile App NETIO Mobile 2 (Locally or via NETIO Cloud).

The DI (Digital Input) can control the outputs or count S0 pulses (ext. power metering).

PDU supports Open API for 3rd party integration (http JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...).

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud is paid service with welcome credit for new connected devices.

It’s SSL secured cloud solution, servers located in Europe.

AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Utelogy, Crestron, Control4, Atlona etc.

NETIO PowerPDU 4KB can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output is separately metered and can be turned off and on individually.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Atlona, Utelogy, Qsys, RTI, SAVANT, SKAARHOJ and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile 2 app controls each output individually over LAN (local network).

The PowerUp sequence or power-up delay can be configured for each output.

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.

By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

Typical applications

  1. The PowerPDU 4KB can be used for power balancing due to energy metering on each output.
  2. Several PowerPDU 4KB units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet) with our rack holders. Vertical or horizontal montage is available.

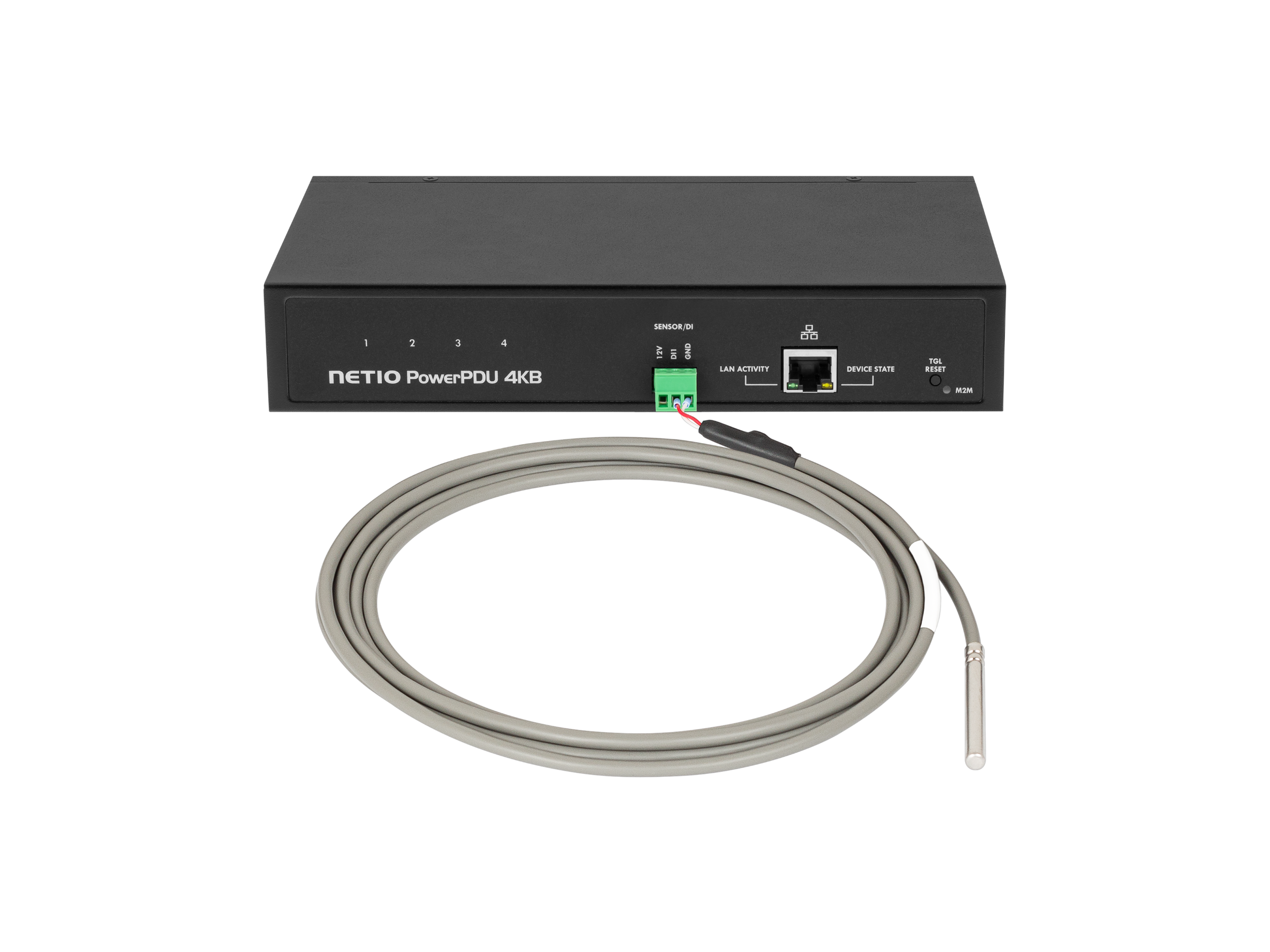

  3. With using external T1 temperature sensor can be used thermostat feature to activate additional cooling in case of too high temperature.
  4. High temperature email alerting via NETIO Cloud can be realized in case of high temperature with external T1 temperature sensor.
  5. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
  6. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
