NETIO

PowerDIN 4PZ, 2 channels metering

SKU: PowerDIN 4PZ
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$516.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

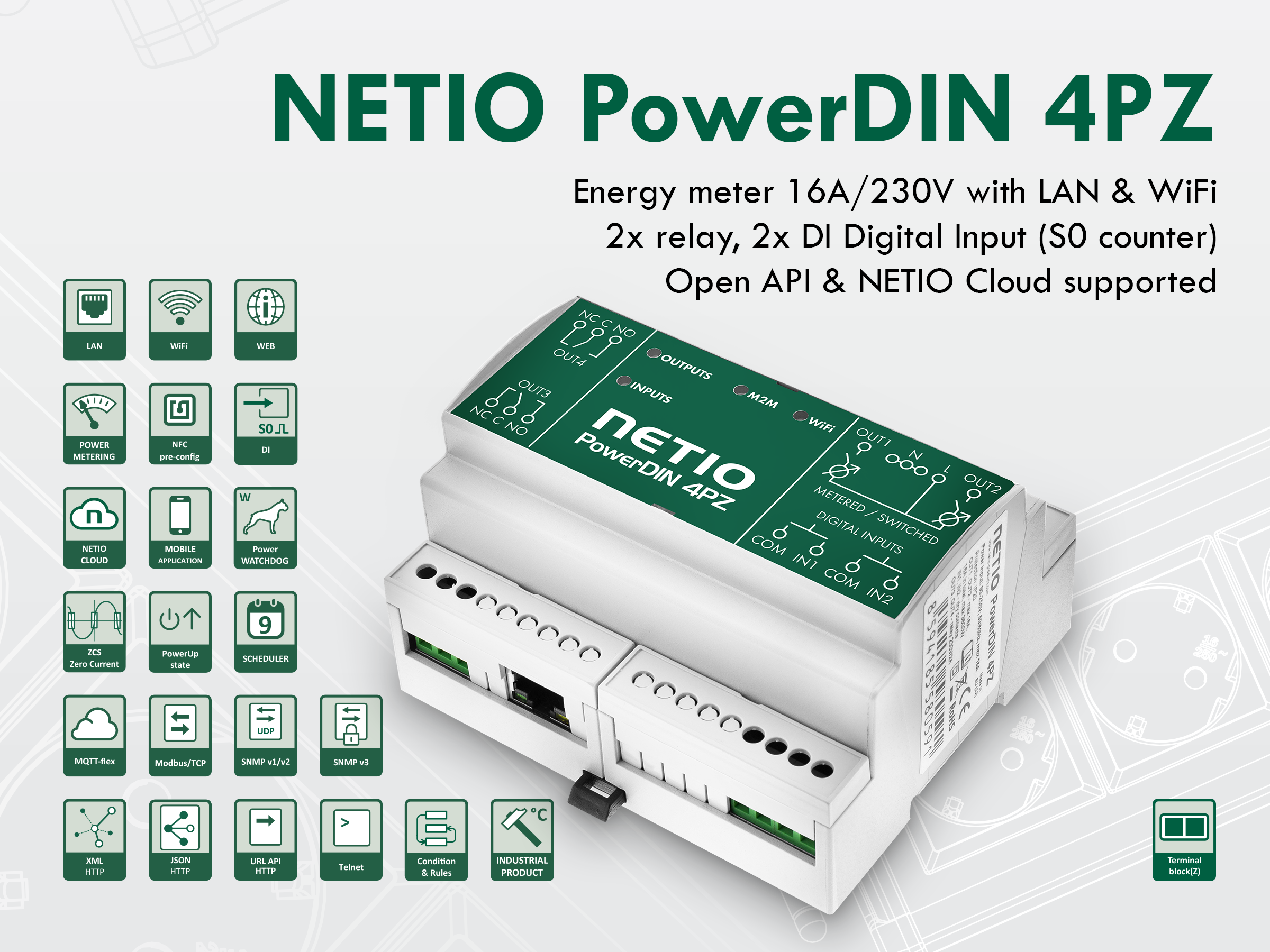

PowerDIN 4PZ is a dual 110-230V / Max 16A electricity meter with LAN/WiFi and I/O, designed to fit on a DIN rail.

Enables control over the Web, NETIO Cloud, Open API.

Each of the 4 outputs can be switched on or off independently using the Web interface, or with Open API and NETIO Cloud.

States of two dry contact digital inputs (including S0 pulse counts) can be also read remotely.

Integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the Open API.

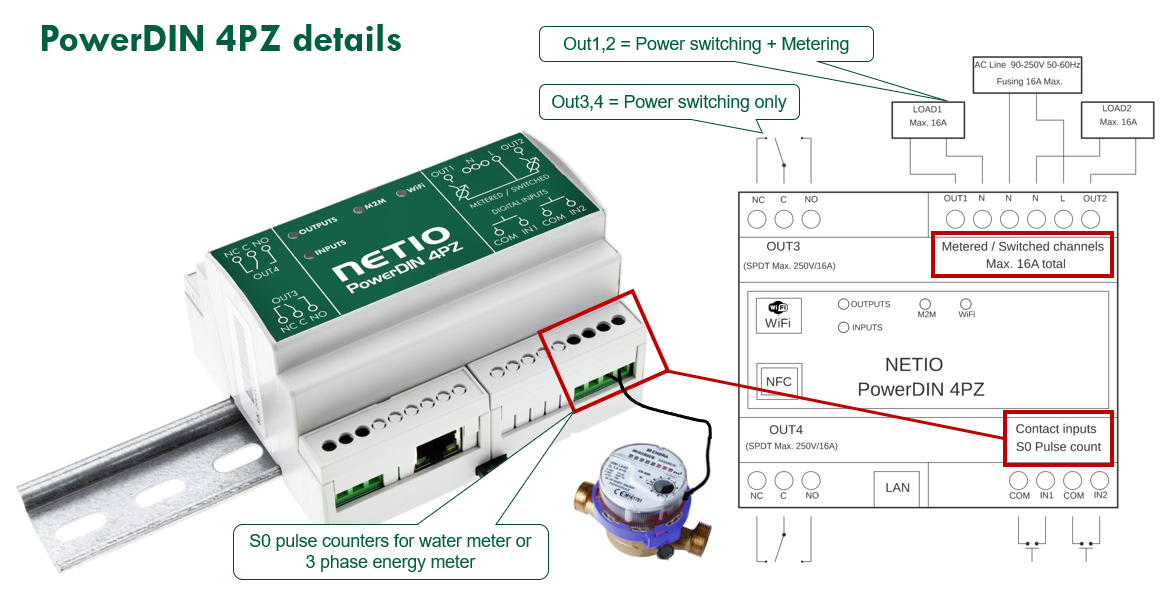

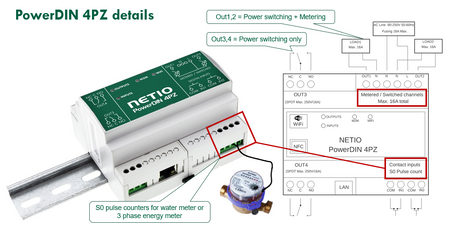

NETIO PowerDIN 4PZ is a 2-channel 110-230V/ Max 16A electricity meter with relays at outputs and LAN (Ethernet) or WiFi connectivity.

  • The two metered 110/230VAC outputs can be switched off thanks to a built-in relay.
  • Two other outputs feature NO/NC relay contacts.
  • Two digital inputs can be used to connect push-buttons or S0 meters.

Using the product’s web interface, the device can be configured, the measured values can be read and each of the 4 outputs can be switched on or off.

Open API enables integration with third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

  • LAN or WiFi connection, NFC configuration
  • WEB interface
  • Channels 1, 2: metering + relay
  • Channels 3, 4: relay contacts
  • OPEN API: MQTT-flex, Modbus/TCP, Telnet, JSON, XML, SNMP, ..
  • ZCS – Zero-current switching
  • Mobile app: NETIO Mobile2 (Android & iOS)
  • Service: NETIO Cloud

NETIO Cloud is a SSL-secured service that allows controlling the outputs from anywhere (using a Web browser or Open API cloud services).  >> More about NETIO Cloud

The NETIO Mobile 2 app controls each output individually over LAN (local network) or NETIO Cloud. >> Více o NETIO Mobile

Open API allows controlling the device over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more...).

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as NEETS, ELAN, CRESTRON, Control4 and more.

Third-party partners provide various SW solutions that can be integrated with NETIO products (Nagios, PRTG, Grafana, Prometheus, Node-Red and more.
