SIEMENS

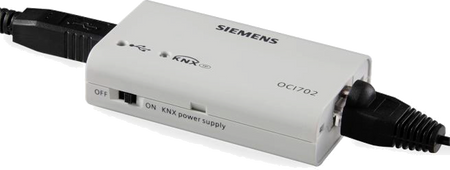

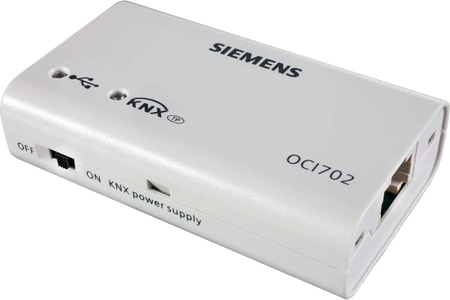

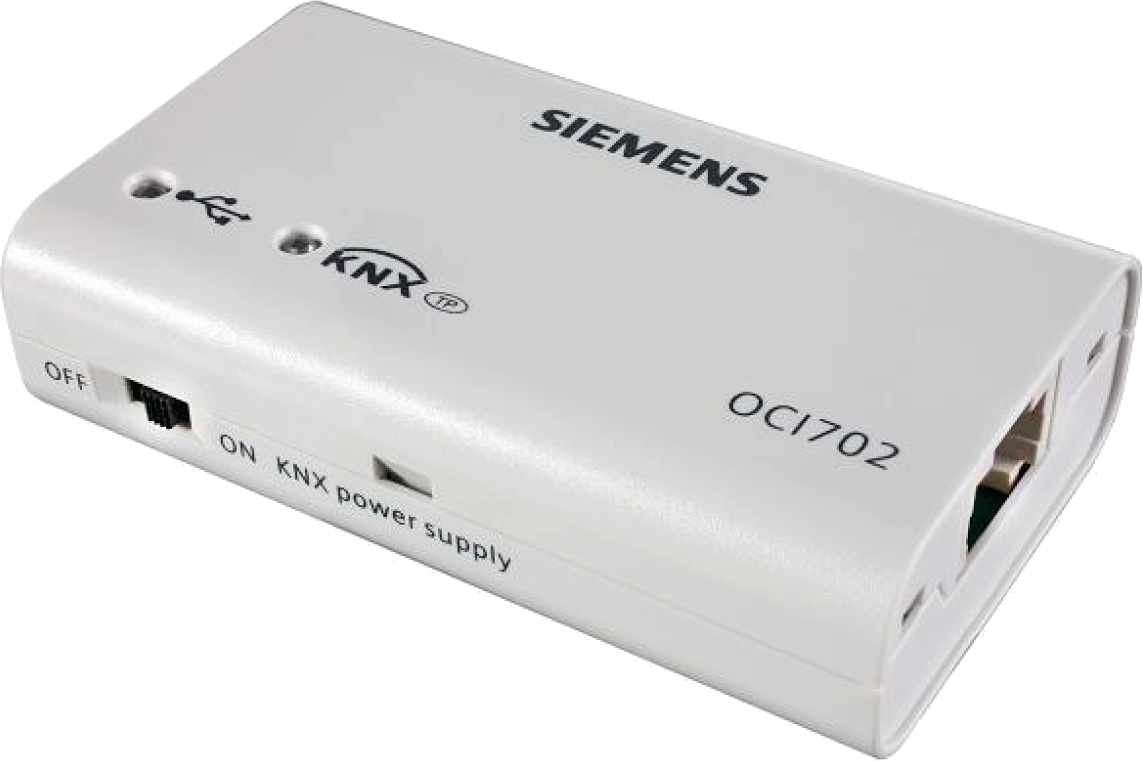

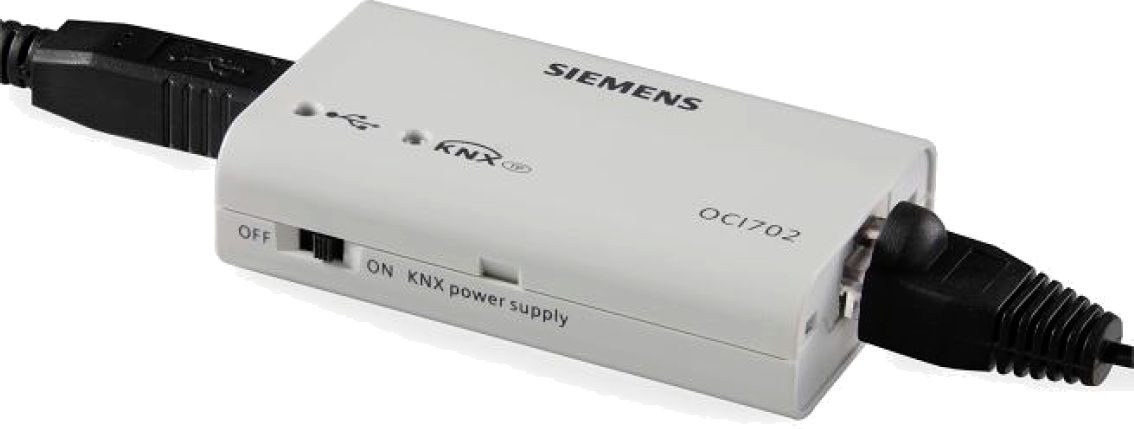

OCI702 USB-KNX Interface W/ Power Supply

SKU: S55800-Y101
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$361.78 USD
-62% $952.04 USD $361.78 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Features

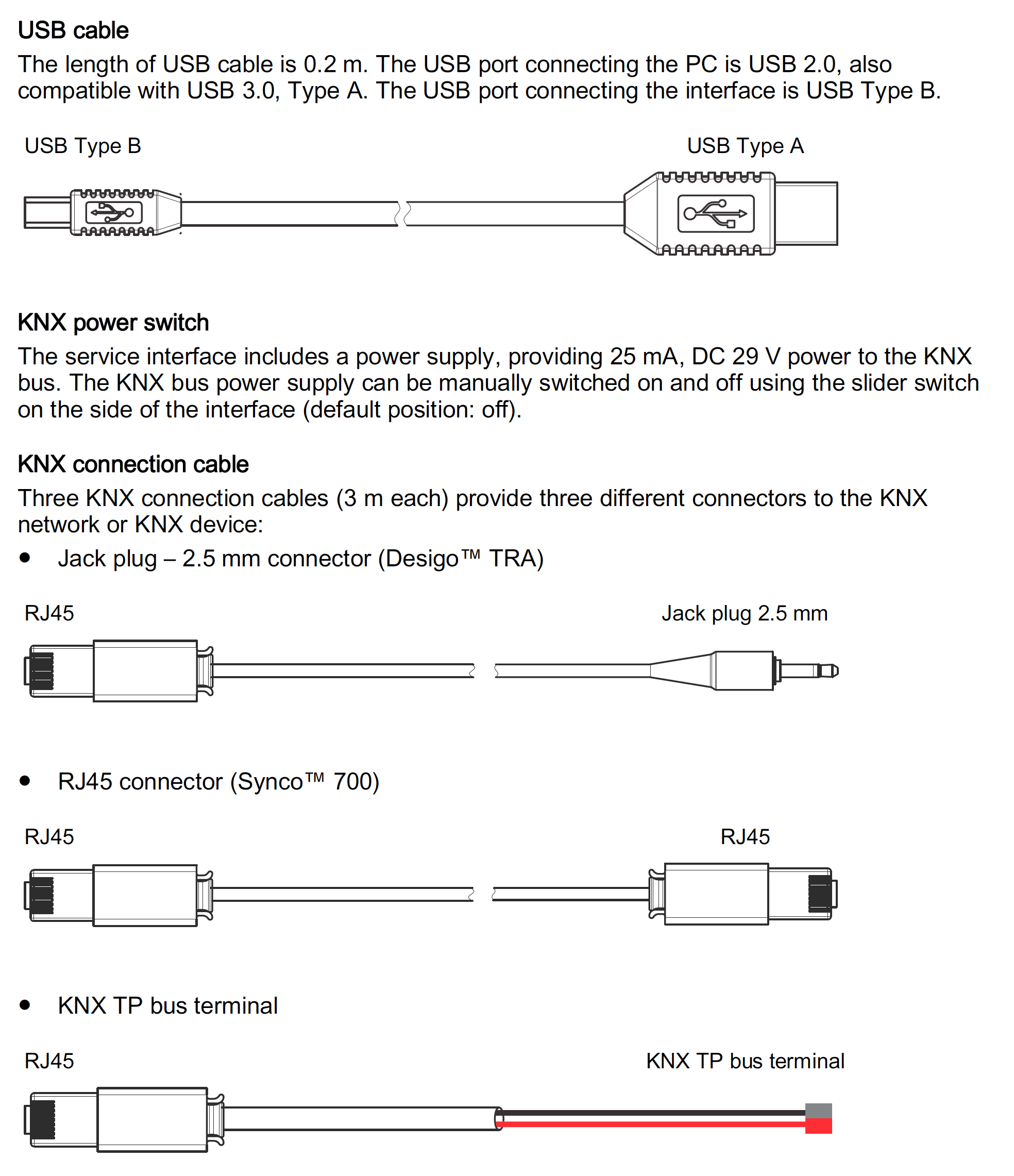

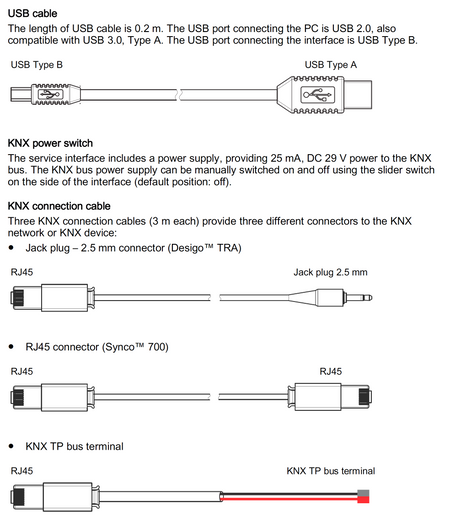

  • USB - KNX connection to access tools from a Microsoft® Windows® PC (standard USB port) to KNX bus
  • Pluggable interface to PC's USB port
  • USB powered
  • Provides power to the KNX bus of 25 mA, DC 29 V
  • Supports long frames of up to 64 bytes
  • Compatible with software tools ETS3 (or later), KNX EITT, ACS V10 (or later) and Desigo™ TRA tools.

Use

The interface supports, together with the appropriate PC software, device commissioning and servicing with KNX communication, for example, from the following ranges:

  • Synco™ 700 controllers and room devices
  • KNX room thermostats RDF..., RDG..., RDU341
  • Individual room controllers RXB... / RXL...
  • Synco™ living central apartment units QAX9...
  • Desigo™ TRA
  • GAMMA devices
