SIEMENS

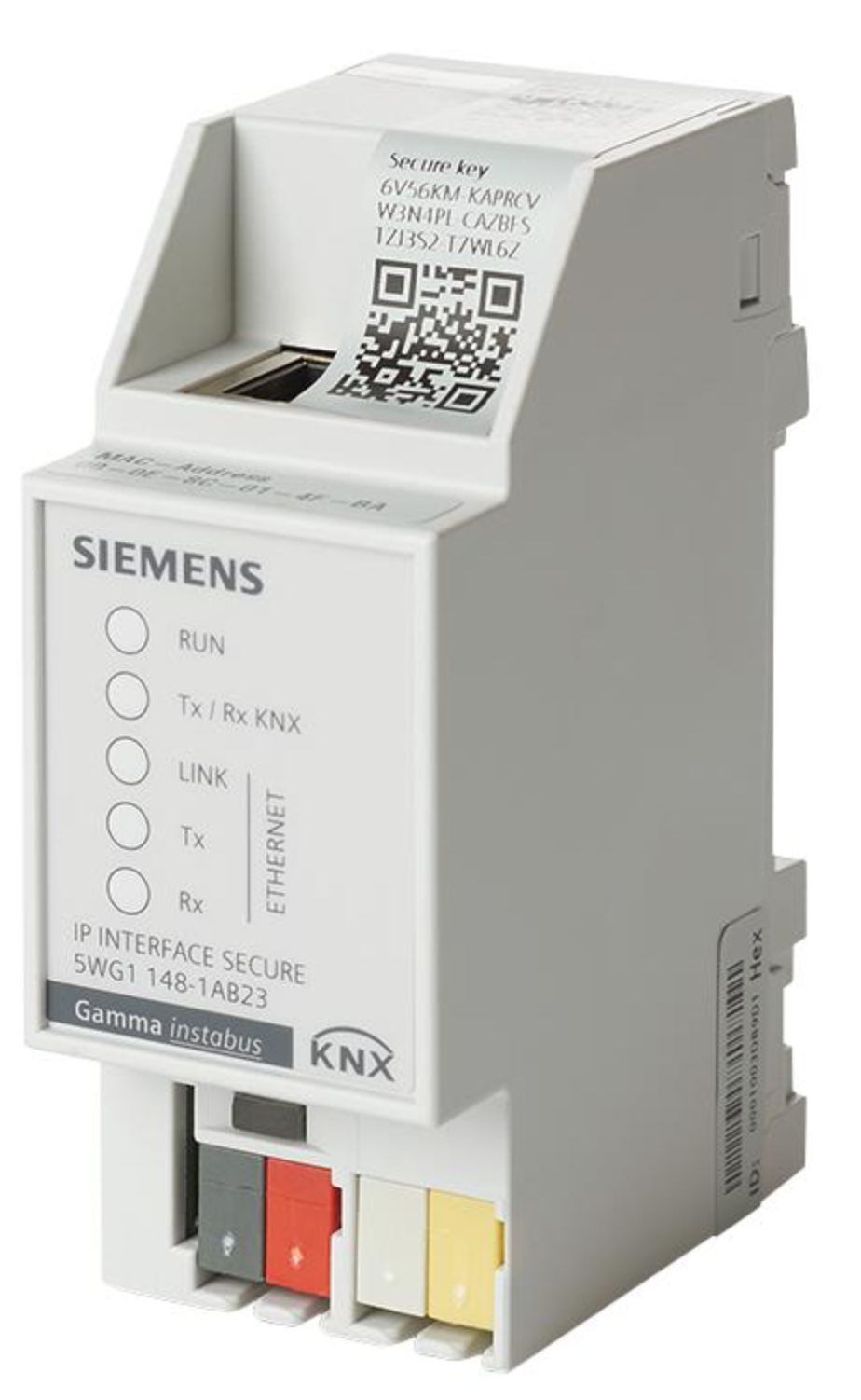

N 148/23 - IP Interface Secure

SKU: 5WG1148-1AB23
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$342.92 USD
-62% $902.42 USD $342.92 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

IP Interface Secure is used for communication between KNX devices and PCs or other devices with an Ethernet interface and for remote access to a KNX installation.

  • Secure KNX/IP Interface: Provides communication between KNX devices and IP-based systems, allowing remote access and control.
  • Power Over Ethernet (PoE): Supports PoE for easy power supply via the network cable, or alternatively, can be powered by AC/DC 24V.
  • Supports Multiple Connections: Allows up to five simultaneous KNXnet/IP tunneling connections, enabling multiple devices to access the KNX system.
  • LED Status Indicators: Features LED displays for power, KNX communication, and IP communication status.
  • Secure Communication: Implements KNX IP Secure for encrypted and authenticated communication, ensuring safe access.
  • Remote Access: Provides secure remote access through VPN, enabling users to control the KNX system from anywhere.
  • Easy Configuration: Configured using the ETS software, which includes secure commissioning options.
  • Compatibility: Integrates easily with visualization systems and facility management tools for broader system management.
  • DIN Rail Mounted: Compact design for easy installation on DIN rails, making it suitable for distribution boards and enclosures.
  • Dual Power Supply Option: Can be powered by either PoE or an external 24V AC/DC supply, offering flexible installation options.
  • Reset to Factory Settings: Supports easy resetting to factory defaults by pressing the learning button for 20 seconds.
  • Supports SD Card Slot: Contains an SD card slot for additional storage and data management (though currently not in use).
  • Environmental Protection: Rated for operation in a wide temperature range and designed for installation in dry environments.
