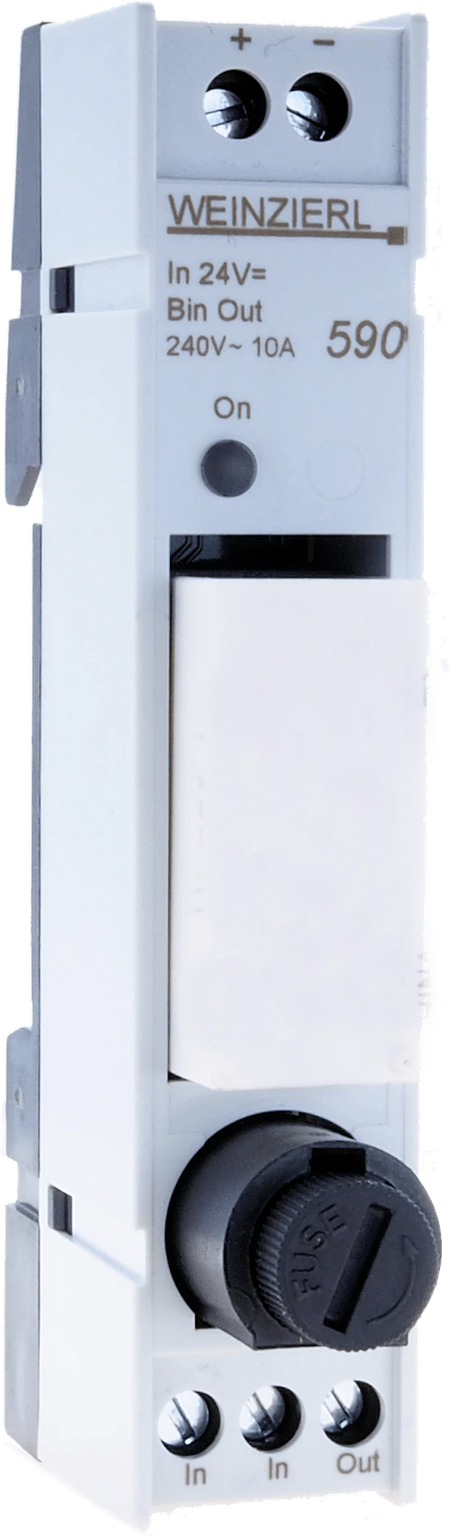

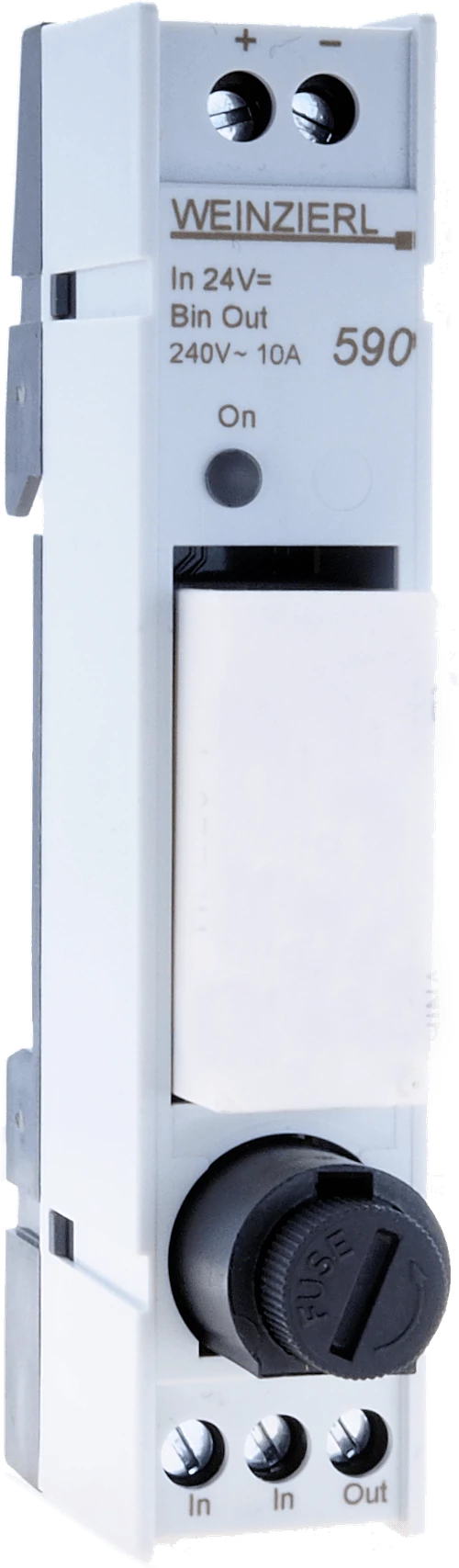

Multi IO Extension Switch 590

The Multi IO Extension Switch 590 serves as a power-saving alternative to commercial standard coupling relays. The coupling relay is controlled as a mono-stable relay, but uses a bi-stable relay internally, thus reducing the holding current by up to 95%.

The Multi IO Extension Switch 590 has an integrated fuse to protect high-quality equipment.

Spare relays

Standard relays for Multi IO Extension Switch 590

• Art.-Nr. 5347
  EAN: 42 6026277 347 0
• Contact material: AgSnO2
• Input 24 V
• Output 230 V / 16 A, bi-stable
• Delivery unit: 10 pcs.

Special relays for Multi IO Extension Switch 590

• Art.-Nr. 5348
  EAN: 42 6026277 348 7
• Contact material: Tungsten / AgSnO2
• For high inrush currents, e.g. for LED lamps
• Input 24 V
• Output 230 V / 16 A, bi-stable
• Delivery unit: 10 pcs.

• Art.-Nr. 5349
  EAN: 42 6026277 349 4
• Contact material: AgSnO2
• For manual operation
• Input 24 V
• Output 230 V / 16 A, bi-stable
• Delivery unit: 10 pcs.
