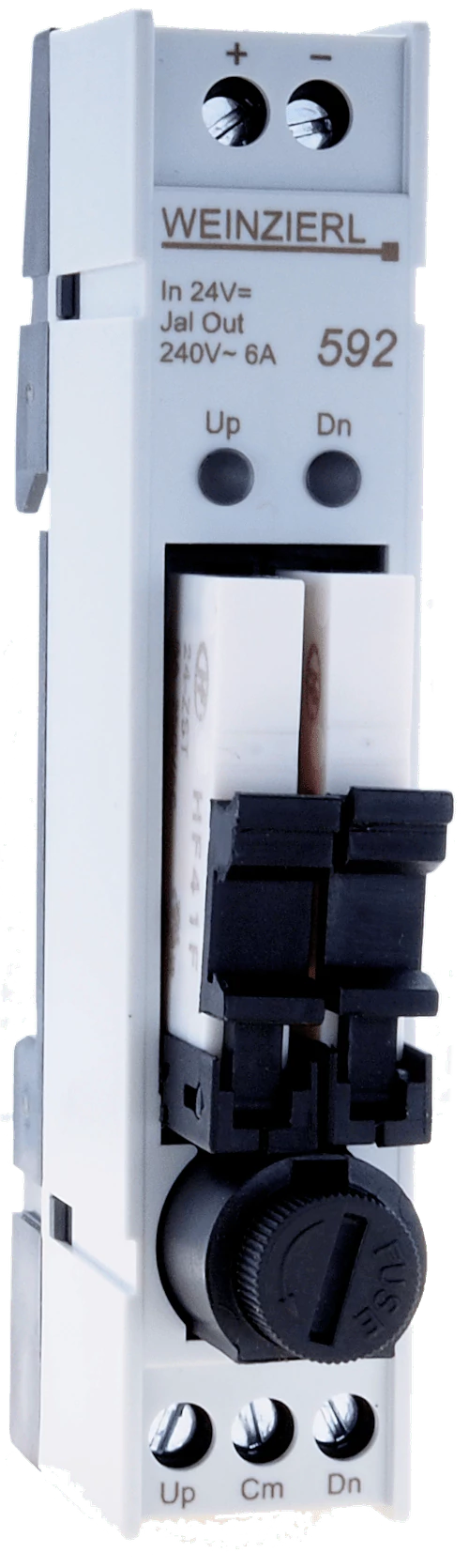

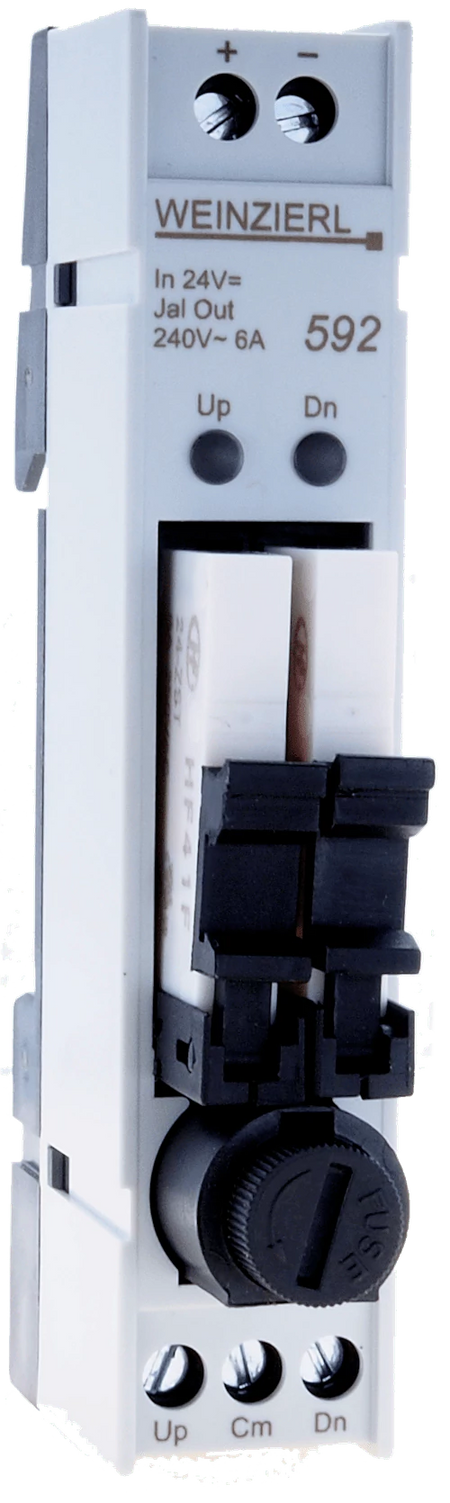

Multi IO Extension Shutter 592

The Multi IO Extension Shutter 592 for shutter has been specially developed for the control of blinds and shutters. The double relay is connected to only one output of a KNX TP Multi IO 570 or KNX IP Multi IO 580. The direction control of the relay outputs is performed automatically by the KNX Multi IO by a defined voltage interruption of the holding current.

The outputs are electro-mechanically locked against each other to prevent a motor defect. The Multi IO Extension Shutter 592 has an integrated fuse to protect high-quality equipment.

Spare relays

Standard relays for Multi IO Extension Shutter 592

• Art.-Nr. 5346
  EAN: 42 6026277 346 3
• Contact material: AgSnO2
• Input 24 V
• Output 230 V / 1A
• Delivery unit: 10 pcs.
