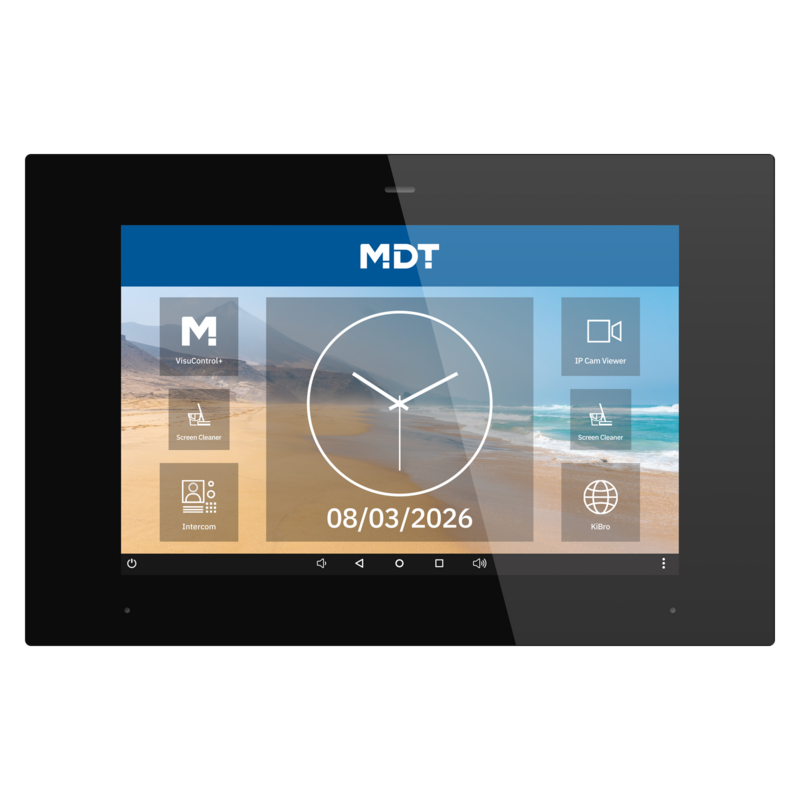

KNX Touch Panel VisuControl Plus, 8-inch display, Secure, Black
KNX Touch Panel VisuControl Plus, 8-inch display, Secure, Black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MDT

KNX Touch Panel VisuControl Plus, 8-inch / 20.3 cm display, Secure

SKU: USA-VC-08P82.01S
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$1,296.82 USD
-21% $1,648.50 USD $1,296.82 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The VisuControl Plus touch panel with high-resolution 8-inch glass display enables intuitive visualisation and control of building functions such as lighting, shading, climate and scenes. With integrated SIP functionality, IP camera connectivity, logic functions and remote access, it offers comprehensive smart building capabilities. With KNX Data Secure.

  • High-resolution capacitive glass touch display (1280 x 800 pixels)
  • Visualisation and operation of lighting, shading, room temperature, status, scenes, multimedia, weather data and more
  • Up to 500 elements can be visualised
  • With speaker and microphone for SIP door communication functions (requires VoIP server)
  • Daily / weekly / astro switch function (125 channels, each with 10 switching times)
  • Notifications for alarms, warnings and information (text and sound)
  • Integration of IP cameras
  • Remote access via MDT VisuControlPlus app (Android / iOS / Windows)
  • Digital I/O for doorbell button and signalling
  • With brightness and proximity sensor
  • User management with PIN codes for up to 10 users
  • Cloud connection, backup and restore via USB
  • Logic functions, scenes and presence simulation
  • Integrated bus coupler, KNX Data Secure
  • With mounting adapter for standard installation box — horizontal or vertical
  • Dimensions (H x W x D): 153 x 233 x 16 mm
  • Colour: Black
  • 3 year warranty

Datasheet (PDF)
