The KNX Modbus TCP Gateway 716 is a compact Gateway between KNX TP and Modbus TCP with 250 freely configurable data points.

The device enables easy integration of Modbus devices that support the TCP protocol via IP and can act as a Modbus master or slave.

As Master the device can address up to 5 slave devices.

Two buttons and three LEDs allow local operation and visualization of the device status.

Furthermore, the device can be used as a programming interface to connect one or more PCs to the KNX bus (e.g. for ETS®).

The Power is supplied via the KNX bus. The KNX Modbus TCP Gateway supports KNX Security.

KNX Modbus configuration

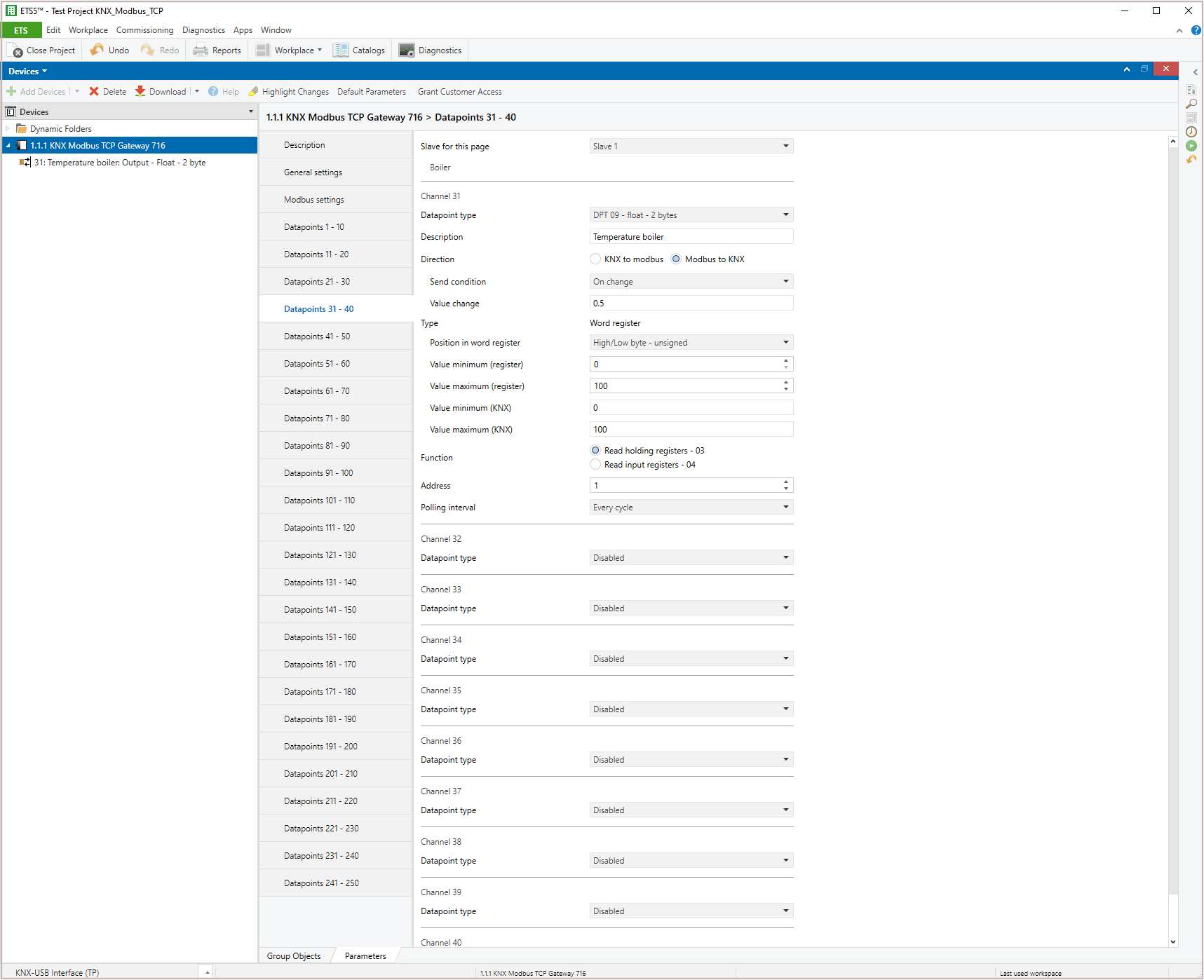

The assignment between KNX objects and Modbus registers is made via parameters in the ETS – no further tool is required.

The device enables the interpretation and scaling of the Modbus data according to the data point types of the KNX standard.

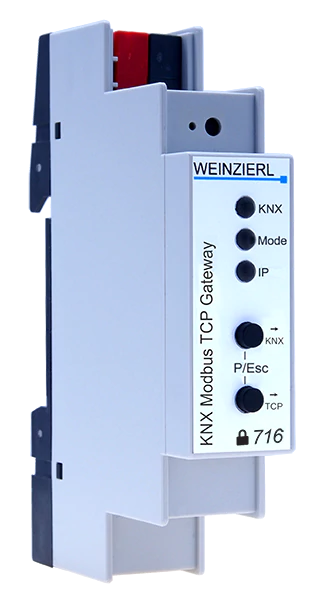

Two buttons and three multi-colored LEDs on the front panel allow local operation (test functions) and visualization of the device status.

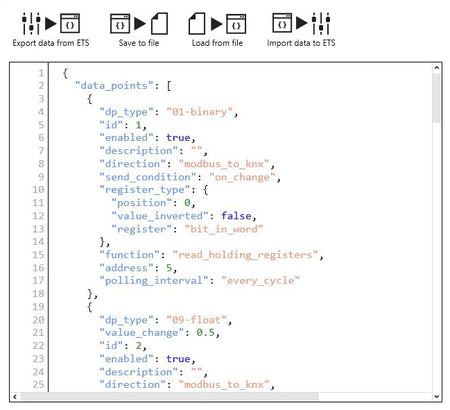

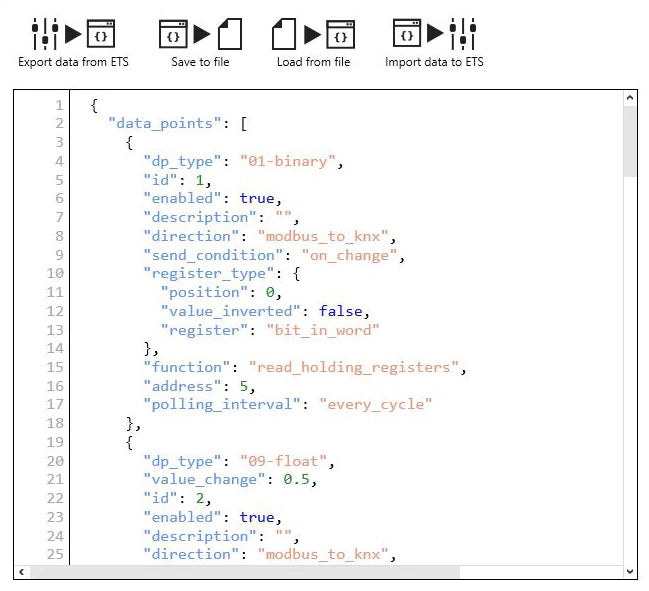

Weinzierl Modbus Gateway Config Tool

The Weinzierl Modbus Gateway Config Tool is a so-called DCA (Device Configuration AddIn) for the ETS.

With this it is possible to export the configuration of a Weinzierl KNX Modbus TCP Gateway 716 database and import it into another gateway.

The Weinzierl Modbus Gateway Config Tool is available online as a free download in the KNX Association online store under Shop / ETS Apps (creating a user account is necessary).

After adding it to the shopping cart and checking it out, the download link for the Weinzierl Modbus Gateway Config Tool will appear within a short time under “My account / Products”.

Please note: The Weinzierl Modbus Gateway Config Tool requires a commercial license of ETS 5.5 or higher.
