KNX IP Router 752 secure
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$415.90 USD
Regular price
-11%
$465.90 USD
Sale price
$415.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

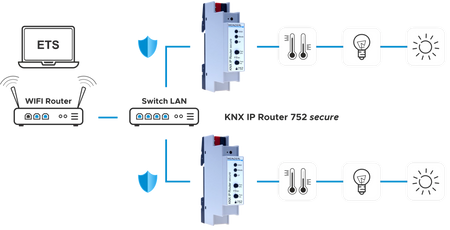

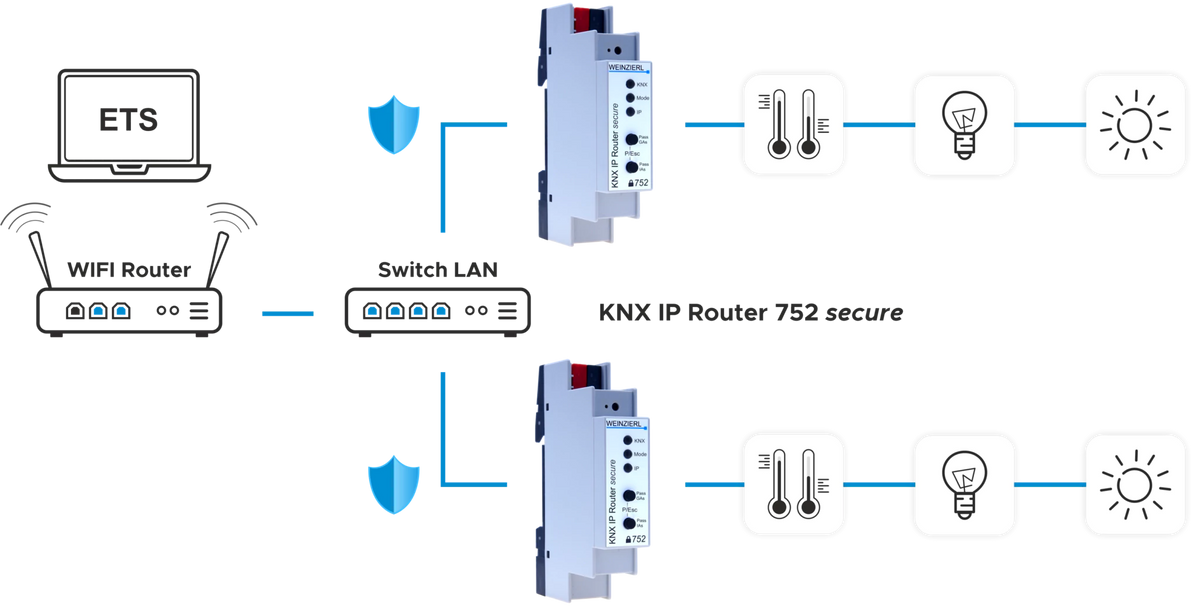

The KNX IP Router 752 secure enables the secure forwarding (routing) of telegrams between different lines over a LAN (IP, Ethernet) as a fast backbone.
As a secure router, the device enables the connection of unsecured communications on a KNX TP line with a secure IP backbone.
The KNX IP Router 752 secure has an extended filter table for main group 0..31 and can cache up to 150 telegrams.
The device also serves as a secure interface between IP (Ethernet) and KNX and can be used as a programming interface for the ETS®.
As a KNX Secure Interface (tunneling), the device prevents unauthorized access to the system.
The connection between PC and interface is encrypted.
With the KNX IP Router 752 secure, the KNX bus can be accessed from any point in the LAN.
Encryption also enables secure programming over the Internet.
The security option can be activated or deactivated in the ETS.

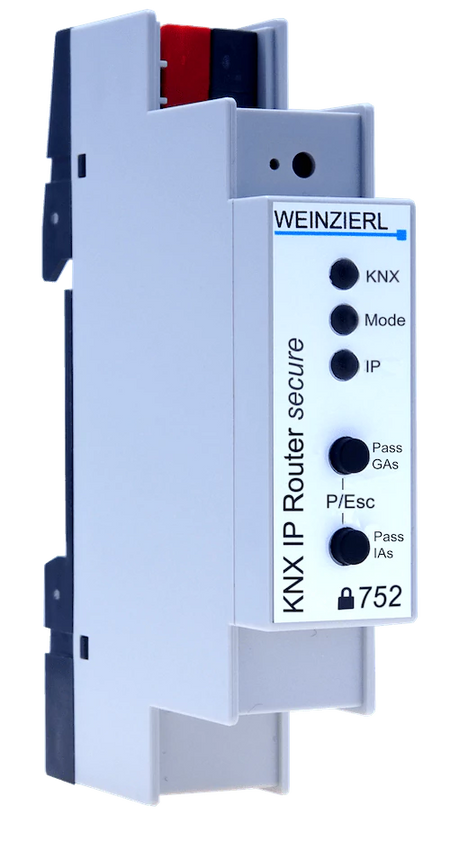

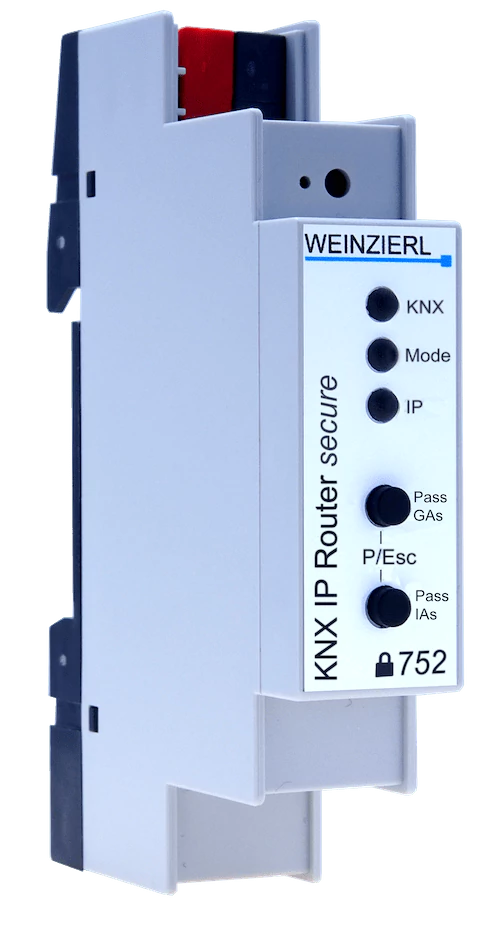

The device is characterized by a compact design with a width of only 1 module with (18 mm) and is powered by the KNX bus.
The buttons and LEDs on the device allow a local diagnosis of the current operating status and possible communication errors.
