WEINZIERL

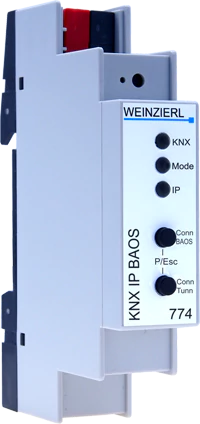

KNX IP BAOS 774

SKU: 774
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$412.90 USD
-11% $462.90 USD $412.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX IP BAOS 774 is used as Interface for connecting to KNX both on telegram level (KNXnet/IP Tunneling) and on data point level (KNX Application Layer).

Clients can directly access Group Objects via either a Binary Protocol (over TCP/IP or UDP/IP) or via JSON (Java Script Object Notation) Web Services.

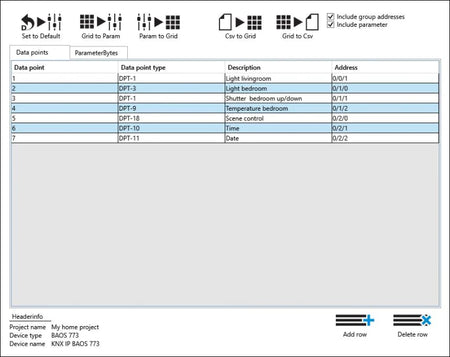

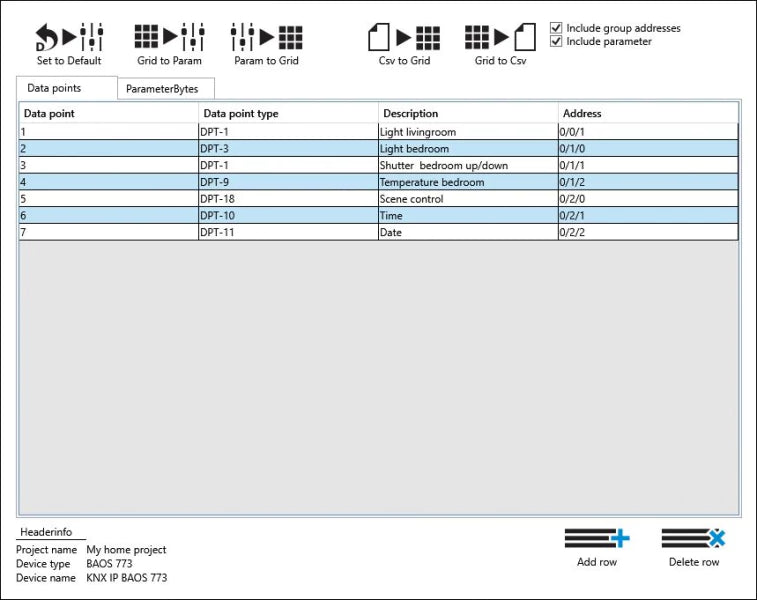

The device is configured with the ETS and supports up to 1000 Group Objects.

10 simultaneous client connections are supported.

BAOS is an acronym for “Bus Access and Object Server”.

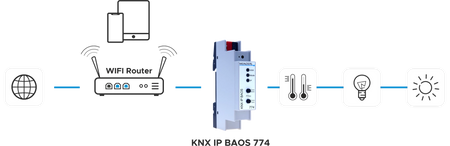

It is possible to connect to the KNX bus everywhere over LAN.

Bus connection over the internet with KNX IP BAOS 774 is also possible.

The device supports 5 simultaneous KNXnet/IP tunneling connections.

The buttons are for diagnostic purposes.

The LEDs indicate the operating status and communication errors on the bus.

Power is supplied via the KNX bus.
