KNX IO 520.1 secure shutter actuator with binary inputs
KNX IO 520.1 secure shutter actuator with binary inputs

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

WEINZIERL

KNX IO 520.1 secure (1J2I)

SKU: 520.1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$120.90 USD
-11% $135.90 USD $120.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

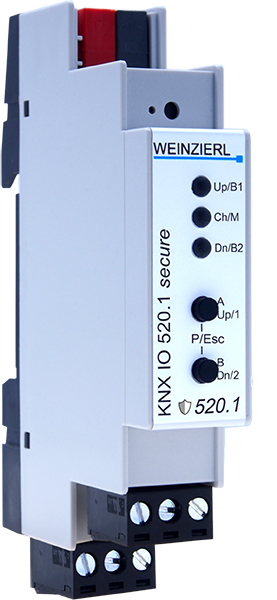

The KNX IO 520.1 secure is a compact blind/shutter actuator with one shutter output (230 V~, 8 A) and two additional binary inputs (12..230 V, galvanically isolated). For blinds, shutters or window drives, with approach position via time calculation. Drive directions are electro-mechanically locked against each other. Integrated logic and timer functions. Direct operation with the ETS without download. Support of KNX Security. Connections: KNX, pluggable screw terminals for IO. For DIN rail, width 1 unit (18 mm). Art. no. 5515.
