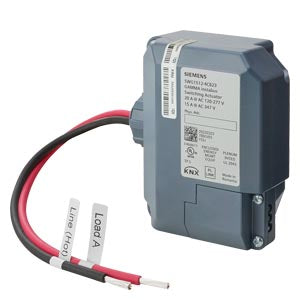

JB 512C23 - Switching actuator 1 x AC 120...277 V, 20 A or 1 x AC 347 V, 15 AX, C load

Switching actuator 1 x AC 120...277 V, 20 A or 1 x AC 347 V, 15 AX, C load

• The actuator output may be configured independently to provide switching, manual override, forced control, logical gate and status reporting.
• Furthermore, if required, timelimited switching instead of permanent switching on can be enabled via an optional "Night mode" object (e.g. for lighting while cleaning), if need be with a warning before switching off by multiple switching the output on and off (flashing).

• Amongst others, the application program includes an optional count of switching cycles and operating hours with threshold monitoring for each output and an integrated 8-bit scene control, in which the output can be incorporated into
  up to 8 scenes.

• Each output of the actuator may be set to one of the following operating modes:
  - Normal operation
  - Timer operation
  Building site function

• The building site function provided ex-factory enables switching the building site lighting on and off via bus wall switches and actuators, even if these devices have not yet been commissioned with ETS.
