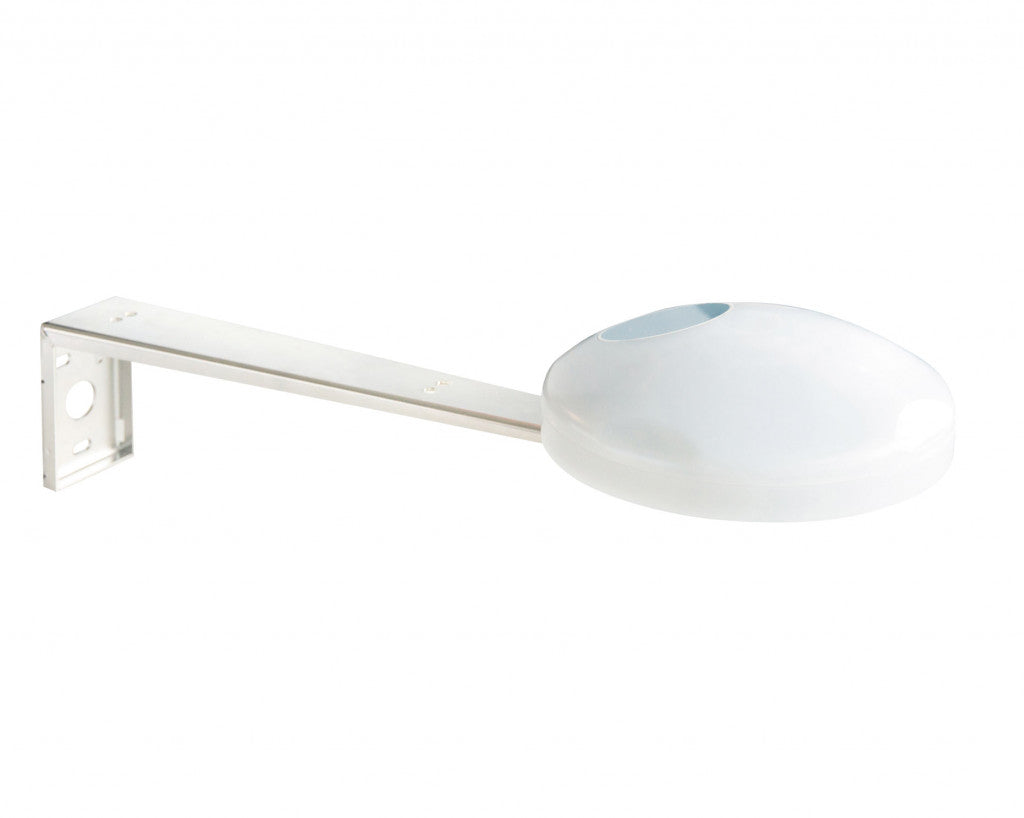

Eelectron WS00A01KNX KNX Weather Station Plus standard – white
Eelectron WS00A01KNX KNX Weather Station Plus standard – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron WS00A01KNX KNX Weather Station Plus standard – white

SKU: WS00A01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$1,687.90 USD
-8% $1,844.64 USD $1,687.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron WS00A01KNX is a KNX weather station that measures wind speed, rain, brightness on four sides, twilight, temperature, humidity, air pressure and global radiation, and carries a GPS/GLONASS receiver for position and time. It supplies the sun-tracking, wind-alarm and frost-protection data that shading actuators and HVAC controllers need, in one compact sensor on the roof or facade.

The head is heated for rain and wind sensing in winter, rated IP44, and powered with 24 V AC or 21–32 V DC (100–400 mA) alongside the bus connection; up to three stations can share a line. Global radiation to 1300 W/m² and brightness to 150 klx make it suitable for solar-gain calculations as well as blind control in offices, hotels and residences.

In ETS each measured value is available as a group object with configurable send-on-change and cyclic transmission, and threshold objects with hysteresis and delay provide ready-made wind, rain, frost and brightness alarms for the shading logic of actuators such as SA04K01KNX or the IOxxF01KNX series. The GPS receiver also supplies the time and date to the bus, so a separate time master is not required. Mounting should give the wind sensor free airflow and the four brightness sensors an unobstructed view to east, south, west and the zenith.

Key Features

  • Wind speed, rain, 4 x brightness (0–150 klx), twilight, temperature, relative humidity, air pressure
  • Global radiation 0–1300 W/m²
  • GPS / GLONASS receiver for position, date and time; astronomical sun position for facade control
  • Heated sensors for reliable rain and wind detection in cold weather
  • Threshold, alarm and logic objects for shading, awning and HVAC control
  • Supply 24 V AC or 21–32 V DC, 100–400 mA; max 3 stations per line
  • IP44 housing Ø 130 x 68 mm, approx. 230 g; 5 m (16 ft) cable

Technical Specifications

Power supply 24 V AC or 21–32 V DC, 100–400 mA (heating dependent); KNX bus
Measurements Wind, rain, brightness x4 (0–150 klx), twilight, temperature, humidity, pressure, global radiation 0–1300 W/m²
Positioning GPS / GLONASS
Max devices per line 3
Cable 5 m (16 ft)
Mounting Outdoor, roof or facade bracket
Enclosure IP44
Dimensions Ø 130 x 68 mm (5.12 x 2.68 in)
Certifications KNX certified; CE
ETS application WS00A01KNX weather station application
Weight (net) 1 kg (2.20 lb)
Manufacturer part no. / GTIN WS00A01KNX / 8054144522166

Related Products

Shading actuators: SA04K01KNX (24 V DC), BO04K01KNX / BO08K01KNX / BO12K01KNX, IOxxF01KNX. Time scheduling: ES01A00KNX. A 24 V AC/DC supply for the heater is required; bus from PS00D03KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
